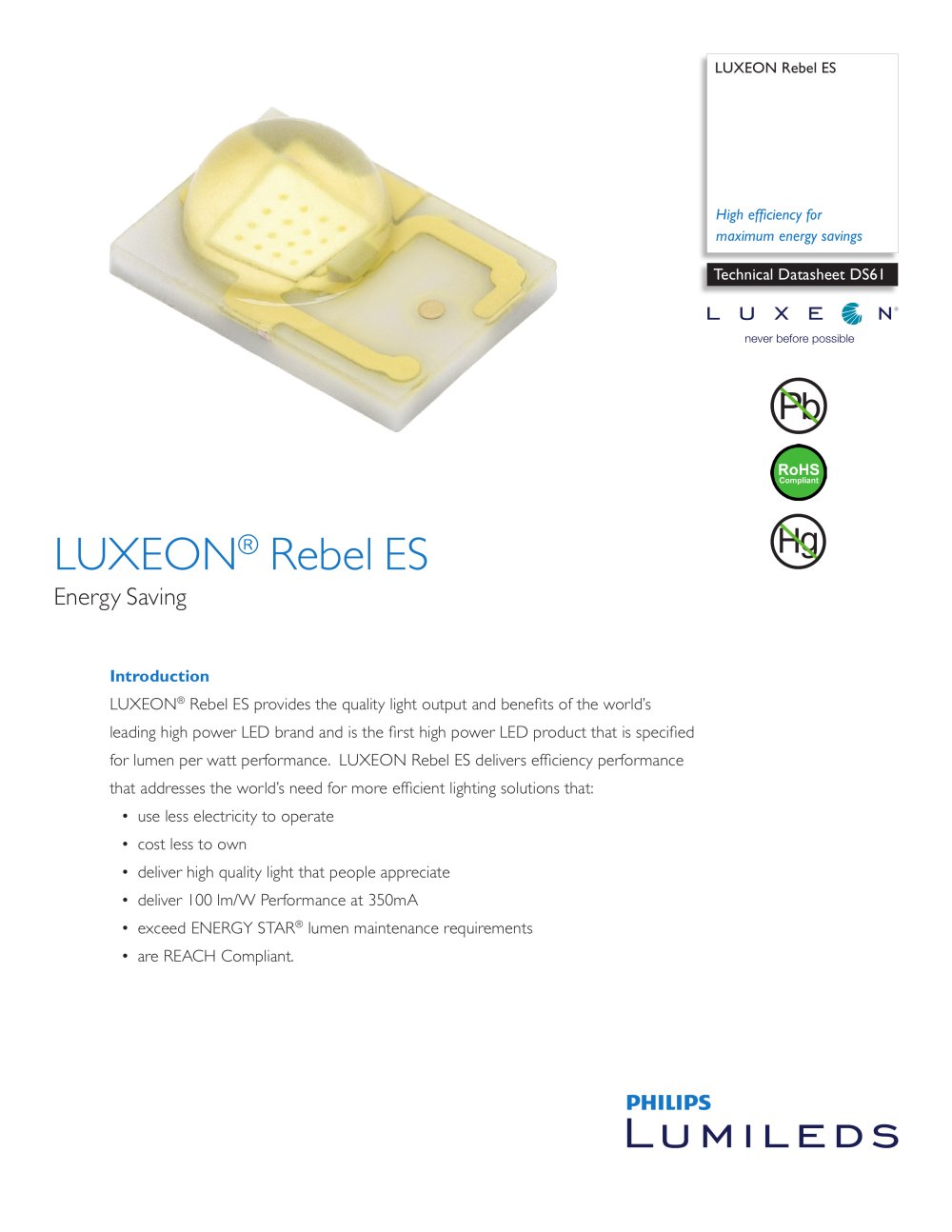

LUXEON® Rebel ES Energy Saving LUXEON Rebel ES High efficiency for maximum energy savings Technical Datasheet DS61 Introduction LUXEON® Rebel ES provides the quality light output and benefits of the world’s leading high power LED brand and is the first high power LED product that is specified for lumen per watt performance. LUXEON Rebel ES delivers efficiency performance that addresses the world’s need for more efficient lighting solutions that: use less electricity to operate• cost less to own• deliver high quality light that people appreciate• deliver 100 lm/W Performance at 350mA• exceed ENERGY STAR• ® lumen maintenance requirements are REACH Compliant.• gH

Open the catalog to page 1

LUXEON Rebel ES Datasheet DS61 (09/07/14) 3 Product Nomenclature LUXEON Rebel ES is tested and binned at 350 mA, with current pulse duration of 20 ms. All characteristic charts where the thermal pad is kept at constant temperature (25ºC typically) are measured with current pulse duration of 20 ms. The part number designation is explained as follows: L X L W - A B C D - E F G H Where: A — designates radiation pattern (value P for Lambertian) B — designates color (W for White) C — designates color variant (C for Cool-White, N for Neutral-White) D — designates test current (value 1 for 350 mA)...

Open the catalog to page 3

LUXEON Rebel ES Datasheet DS61 (09/07/14) 4 Luminous Efficacy Characteristics for LUXEON Rebel ESThermal Pad Temperature = 25°C Table 1. Performance at Test Current Minimum Luminous Efficacy Test Current Color Part Number (lm/W) [1] [2] (mA) Cool-White LXLW-PWC1-0100 100 350 Neutr al-White LXLW-PWN1-0100 100 350 Notes for Table 1: 1. Minimum luminous efficacy performance guaranteed within published operating conditions. Philips Lumileds maintains a tolerance of ± 8.5% on luminous efficacy measurements.2. LUXEON Rebel ES products with even higher luminous efficacy levels will become...

Open the catalog to page 4

LUXEON Rebel ES Datasheet DS61 (09/07/14) 5 LUXEON Rebel ES at Test Current [1]Thermal Pad Temperature = 25°C Table 2. T ypical Total Typical Color Temperature [2] Included Viewing CCT Angle [4] Angle [5] (degrees) (degrees) Color Min. Typ. Max. u0.90V 2u 1/2 Cool-White 5000 K 5650 K 6300 K 160 120 Neutr al-White 3800 K 4100 K 4500 K 160 120 Notes for Table 2: 1. Test current is 350 mA for all LXLW-Pxx1-0xxx products.2. CCT ±5% tester tolerance.3. Typical CRI (Color Rendering Index) for Cool-White is 70, Neutral-White is 70.4. Total angle at which 90% of total luminous flux is captured. 5....

Open the catalog to page 5

LUXEON Rebel ES Datasheet DS61 (09/07/14) 6 Electrical Characteristics at 350 mA for LUXEON Rebel ES Thermal Pad Temperature = 25ºC Table 3. Typical Temperature Typical Coefficient of Thermal Forward Resistance Forward Voltage Vf [1] Voltage [2] Junction to (V) (mV/°C) Thermal Pad (°C/W) Color Min. Typ. Max. DVF / DTJ Ru J-C Cool-White 2.79 3.00 3.27 -2.0 to -4.0 10 Neutr al-White 2.79 3.00 3.27 -2.0 to -4.0 10 Notes for Table 3: 1. Philips Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.2. Measured between 25°C = TJ = 110°C at If = 350 mA. * Dynamic resistance is...

Open the catalog to page 6

LUXEON Rebel ES Datasheet DS61 (09/07/14) 7 Absolute Maximum Ratings Table 5. Parameter Cool-White / Neutral-White DC Forward Current (mA) 1000 Peak Pulsed Forward Current (mA) 1000 Average Forward Current (mA) 1000 ESD Sensitivity < 8000V Human Body Model (HBM) Class 3A JESD22-A114-E < 400V Machine Model (MM) Class B JESD22-A115-B LED Junction Temperature[1] 150°C Operating Case Temperature at 350 mA -40°C - 135°C Storage Temperature -40°C - 135°C Soldering Temperature JEDEC 020c 260°C Allowable Reflow Cycles 3 Autoclave Conditions 121°C at 2 ATM 100% Relative Humidity for 96 Hours Maximum...

Open the catalog to page 7

LUXEON Rebel ES Datasheet DS61 (09/07/14) 8 Temperature Profile for Table 7. Table 7. Profile Feature Lead Free Assembly Average Ramp-Up Rate (Tsmax to Tp) 3°C / second max Preheat Temperature Min (Tsmin) 150°C Preheat Temperature Max (Tsmax) 200°C Preheat Time (tsmin to tsmax) 60 - 180 seconds Time Maintained Above Temperature (TL) 217°C Time Maintained Above Time (tL) 60 - 150 seconds Peak / Classification Temperature (TP) 260°C Time Within 5°C of Actual Peak Temperature (tP) 20 - 40 seconds Ramp - Down Rate 6°C / second max Time 25°C to Peak Temperature 8 minutes max Notes for Table 7:...

Open the catalog to page 8

LUXEON Rebel ES Datasheet DS61 (09/07/14) 9 Mechanical Dimensions Figure 1. Package outline drawing. Notes for Figure 1: 1. Do not handle the device by the lens—care must be taken to avoid damage to the lens or the interior of the device that can be damaged by excessive force to the lens.2. Drawings not to scale.3. All dimensions are in millimeters.4. The Thermal Pad is electrically isolated from the Anode and Cathode contact pads.

Open the catalog to page 9

LUXEON Rebel ES Datasheet DS61 (09/07/14) 10 Pad Configuration Note for Figure 2: 1. The Thermal Pad is electrically isolated from the Anode and Cathode contact pads.Solder Pad Design Note for Figure 3: The photograph below shows the recommended LUXEON Rebel ES layout on Printed Circuit Board (PCB). This design easily achieves a thermal resistance of 7K/W. Application Brief AB32 provides extensive details for this layout. In addition, the .dwg files are available at www.luxeon.com. Figure 2. Pad configuration. Figure 3. Solder pad layout.

Open the catalog to page 10

LUXEON Rebel ES Datasheet DS61 (09/07/14) 11 Relative Spectral Distribution vs. Wavelength Characteristics Cool-White at Test Current, Thermal Pad Temperature = 25°CNeutral-White at Test Current, Thermal Pad Temperature = 25°C 060.81.0wer Distribution0.00.20.40.60.81.0350400450500550600650700750800Relative Spectral Power DistributionWavelength (nm) Figure 4a. Cool-white color spectrum of typical CCT part, integrated measurement. 060.81.0er Distribution0.00.20.40.60.81.0350400450500550600650700750800Relative Spectral Power DistributionWavelength (nm) Figure 4b. Neutral-white color spectrum...
