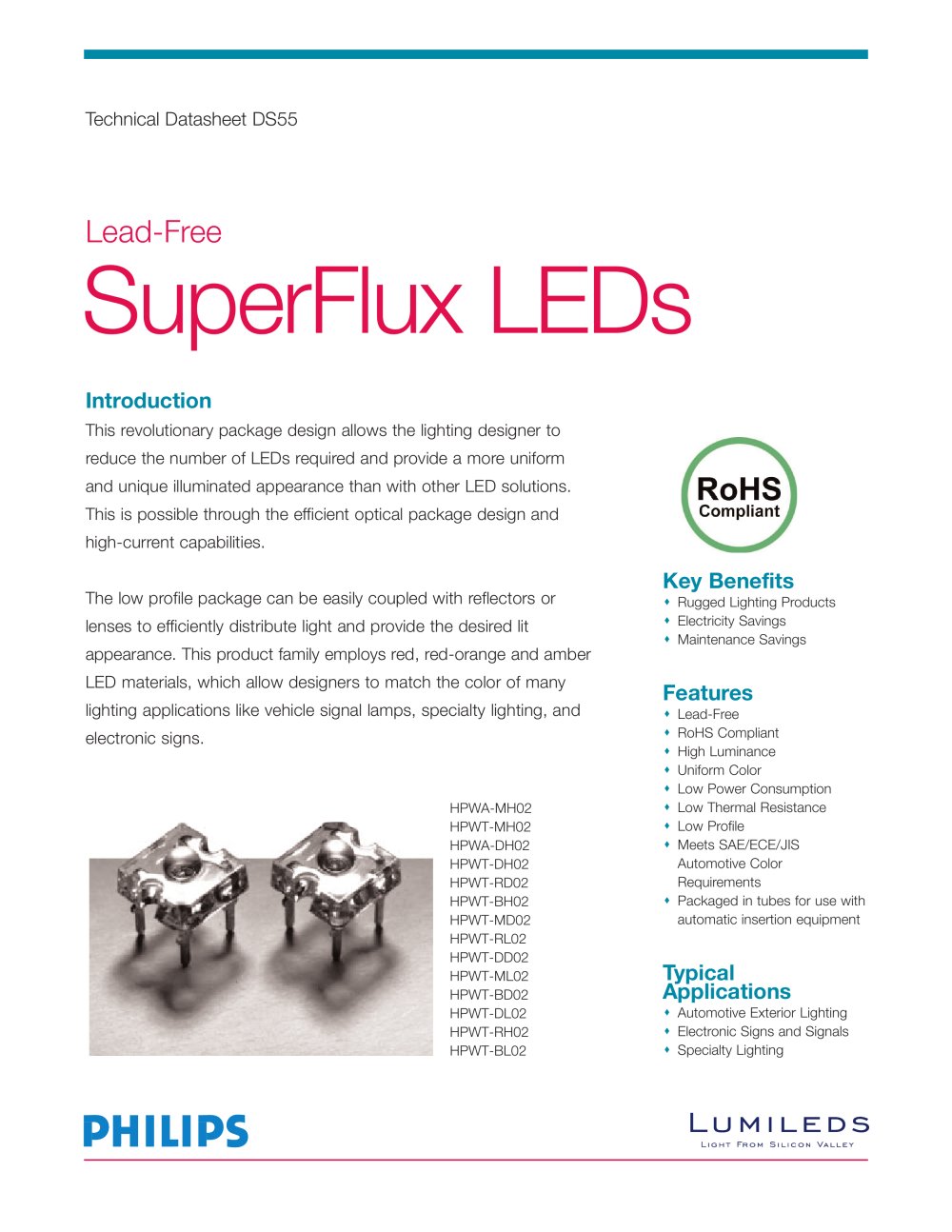

Technical Datasheet DS55 Introduction This revolutionary package design allows the lighting designer to reduce the number of LEDs required and provide a more uniform and unique illuminated appearance than with other LED solutions. This is possible through the efficient optical package design and highcurrent capabilities. The low profile package can be easily coupled with reflectors or lenses to efficiently distribute light and provide the desired lit appearance. This product family employs red, redorange and amber LED materials, which allow designers to match the color of many lighting applications like vehicle signal lamps, specialty lighting, and electronic signs. SuperFlux LEDs LeadFree Key Benefits .. Rugged Lighting Products .. Electricity Savings .. Maintenance Savings Features .. LeadFree .. RoHS Compliant .. High Luminance .. Uniform Color .. Low Power Consumption .. Low Thermal Resistance .. Low Profile .. Meets SAE/ECE/JIS Automotive Color Requirements .. Packaged in tubes for use with automatic insertion equipment Typical Applications .. Automotive Exterior Lighting .. Electronic Signs and Signals .. Specialty Lighting HPWAMH02 HPWTMH02 HPWADH02 HPWTDH02 HPWTRD02 HPWTBH02 HPWTMD02 HPWTRL02 HPWTDD02 HPWTML02 HPWTBD02 HPWTDL02 HPWTRH02 HPWTBL02

Open the catalog to page 1

Outline Drawings Selection Guide Table 1 Total Included Total Flux ÖV (LM) Angle è90V @ 70 mA[1] (Degrees) [2] Device Type LED Color Typ. Typ. HPWAMH02 AS AlInGaP RedOrange 2.0 95 HPWADH02 75 HPWTRD02 44 X 88 HPWTMD02 TS AlInGaP Red 3.8 100 HPWTDD02 70 HPWTBD02 50 HPWTRH02 44 X 88 HPWTMH02 TS AlInGaP RedOrange 5.0 100 HPWTDH02 70 HPWTBH02 50 HPWTRL02 44 X 88 HPWTML02 TS AlInGaP Amber 2.5 100 HPWTDL02 70 HPWTBL02 50 Notes: 1.Öv is the total luminous flux output as measured with an integrating sphere after the device has stabilized. (RèJA = 200°C/W, TA = 25ºC) 2.è0.90 V is the included angle...

Open the catalog to page 2

LeadFree SuperFlux LEDs Datasheet DS55 (10/06) 3 Optical Characteristics at TA = 25°C, IF = 70 mA, RèJA = 200°C/W Table 3 Total Luminous Peak Dominant Included Intensity/ Viewing Wavelength Wavelength Angleè0.90 V Total Flux Angle 2è1/2 Device ëpeak (nm) ëdom(nm)[1] (Degrees)[2] Iv(cd)/Öv(lm) (Degrees) Type Typ. Typ. Typ. Typ. Typ. HPWAMH02 624 618 95 0.6 90 HPWADH02 75 0.9 60 HPWTRD02 44 X 88 1.25 25 x 68 HPWTMD02 640 630 100 0.6 70 HPWTDD02 70 1.5 40 HPWTBD02 50 2.0 30 HPWTRH02 44 X 88 1.25 25 x 68 HPWTMH02 626 620 100 0.6 70 HPWTDH02 70 1.5 40 HPWTBH02 50 2.0 30 HPWTRL02 44 X 88 1.25 25...

Open the catalog to page 3

LeadFree SuperFlux LEDs Datasheet DS55 (10/06) 6 Figures1 1. All Figures Typical unless indicated as Maximum. Note: 1.24mm2 of Cu pad per emitter at cathode lead is recom mended for lowest thermal resistance. Figure 1a. Relative Intensity vs. Wavelength 0 10 20 30 40 50 60 70 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 FORWARD VOLTAGE (V) FORWARD CURRENT (mA) Figure 2a. Forward Current vs. Forward Voltage 0 10 20 30 40 50 60 70 0 20 40 60 80 100 AMBIENT TEMPERATURE (C) MAXIMUM DC CURRENT (mA) Rth(j-a) = 300 C/W Rth(j-a) = 600 C/W Rth(j-a) = 500 C/W Rth(j-a) = 400 C/W 0 10 20 30 40 50 60 70 0 20...

Open the catalog to page 6

LeadFree SuperFlux LEDs Datasheet DS55 (10/06) 7 1. All Figures Typical unless indicated as Maximum. Figure 5a. HPWTRx02 Relative Luminous Intensity vs. Off Axis Angle. Figure 5b. HPWAMx02 Relative Luminous Intensity vs. Off Axis Angle. Figure 5c. HPWTMx02 Relative Luminous Intensity vs. Off Axis Angle. Figure 5d. HPWA(T)Dx02 Relative Luminous Intensity vs. Off Axis Angle. Figure 5e. HPWTBx02 Relative Luminous Intensity vs. Off Axis Angle.

Open the catalog to page 7

LeadFree SuperFlux LEDs Datasheet DS55 (10/06) 8 Recommended Soldering Conditions for PbFree SuperFlux Solder Conditions Preheat Temperatue 85 +/ 15ºC Preheat Time 70s +/ 20s Peak Profile Temperature 250 +/ 5ºC Solder Time Above 217ºC 2.5 +/ 0.5s Note: 1.All top preheat stages are to be turned off so that the lamp body is not directly exposed to the heat source. 2.Profile taken on the LED lead at the bottom of the PCB. 3.Single wave soldering is recommended. 0 50 100 200 250 300 0 10 20 30 40 50 60 70 80 90 Time (Seconds) Temperature (deg C) 150 Preheat 90 s (MAX) 100oC (MAX) Peak 255 C o...

Open the catalog to page 8
