Overview of Bag Types and Features

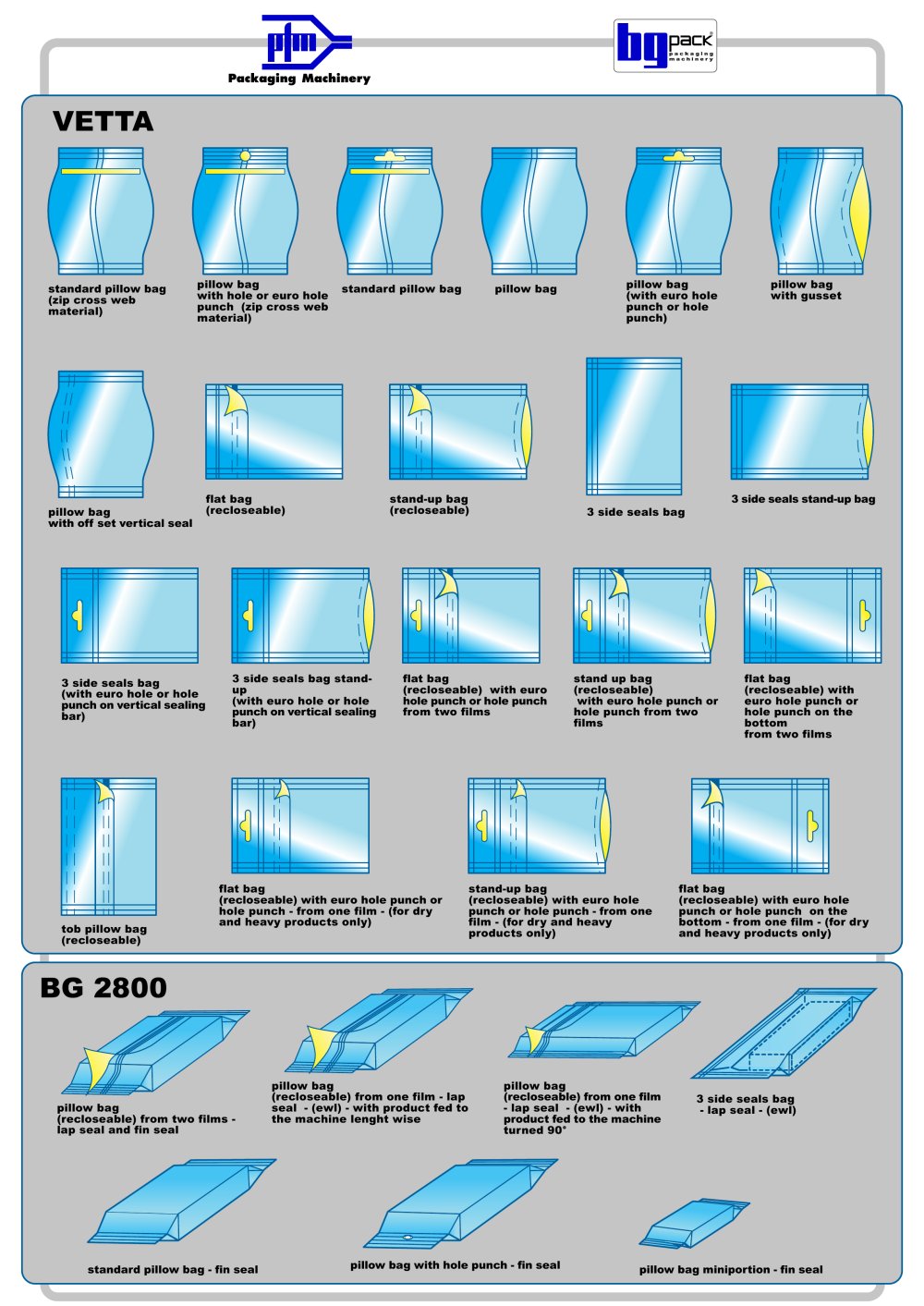

This document outlines various types of packaging bags, focusing on their structural designs, sealing methods, material compositions, and hole punch options for hanging or display purposes.

1. Bag Types and Structural Designs

• Pillow Bags: Standard pillow bags, pillow bags with gussets, pillow bags with offset vertical seals, and pillow bags with lap or fin seals. Variants include recloseable versions and mini portions.
• Flat Bags: Recloseable flat bags with euro hole or hole punch options, including versions with hole punches on the bottom. These can be made from one or two films.
• Stand-Up Bags: Recloseable stand-up bags with euro hole or hole punch options, made from one or two films.
• 3 Side Seal Bags: Bags sealed on three sides, including stand-up versions, with options for euro hole or hole punch on the vertical sealing bar.
• Specialized Bags: Tob pillow bags (recloseable), BG 2800 pillow bags, and VETTA 3 side seal stand-up bags.

2. Sealing Methods

• Lap Seal: Used in pillow bags and 3 side seal bags, with product orientation either lengthwise or turned 90° relative to the machine.
• Fin Seal: Common in pillow bags, including mini portions and standard versions.
• Offset Vertical Seal: Specific to some pillow bags for structural or aesthetic purposes.

3. Material Composition

• Zip Cross Web Material: Used in standard pillow bags and pillow bags with hole or euro hole punch.
• One Film vs. Two Films: Bags can be constructed from either one film or two films, affecting sealing and hole punch placement.

4. Hole Punch Options

• Euro Hole Punch: Standardized hole for hanging bags on display racks, available on pillow bags, flat bags, stand-up bags, and 3 side seal bags.
• Hole Punch: General hole punch option, sometimes placed on the bottom or vertical sealing bar.

5. Usage Recommendations

• Bags made from one film with euro hole or hole punch are recommended primarily for dry and heavy products.
• Recloseable features are emphasized for consumer convenience across multiple bag types.

Summary

The document categorizes packaging bags by design, sealing method, material, and hole punch options, highlighting flexibility for different product types and retail display needs. Key considerations include the choice between one or two film constructions, sealing techniques (lap, fin, offset vertical), and hole punch placements to optimize product presentation and usability.
