2008 COMBICLICK Quick-Change Fiber Discs

Product catalog summary

Introduction
COMBICLICK® Fiber Discs are designed with a patented cooling and quick-mounting system, offering significant improvements in stock removal, workpiece temperature reduction, and service life. The system allows for a 75% time saving through fast tool changes.

User Benefits
The COMBICLICK® system provides ease of handling, excellent cooling, and reduced process costs. It supports flexible grinding at flat angles and eliminates surface scratching by projecting metal parts.

System Enhancements

Faster and Easier Disc Mounting: The discs "click" into place with minimal effort, eliminating the need for substantial pressure and reducing disc curling.
Optimized Backing Pad: Designed to minimize change-up time and maximize air circulation, reducing thermal loads.
Metal-Free Grinding Surface: The design supports nearly flat grinding and prevents workpiece damage.

Performance Improvements

Up to 25% increased stock removal.
Up to 30% longer service life and improved abrasive utilization.
Up to 30% less tool wear and lower workpiece temperature.

Product Range
PFERD offers a comprehensive range of COMBICLICK® Fiber Discs with various grit sizes, abrasive grains, and dimensions suitable for applications from coarse to fine grinding.

Application Examples

Weld dressing
Deburring of steel components
Coarse and fine grinding of stainless steel
Grinding in narrow, hard-to-reach areas

Recommendations for Use
COMBICLICK® Fiber Discs should be used with COMBICLICK® backing pads on standard angle grinders. Safety recommendations include wearing safety glasses, ear protectors, and dust masks.

Technical Specifications
The document provides detailed specifications for different abrasive materials such as Aluminum Oxide, Zirconia Alumina, and Ceramic Oxide, including their recommended applications and performance characteristics.

Ordering Information
Backing pads must be ordered separately, and the document includes specific ordering notes and PFERD specification numbers for each type of abrasive disc.

Safety and Certification
PFERD products are certified according to EN ISO 9001, ensuring quality and safety standards are met.

Catalog excerpts

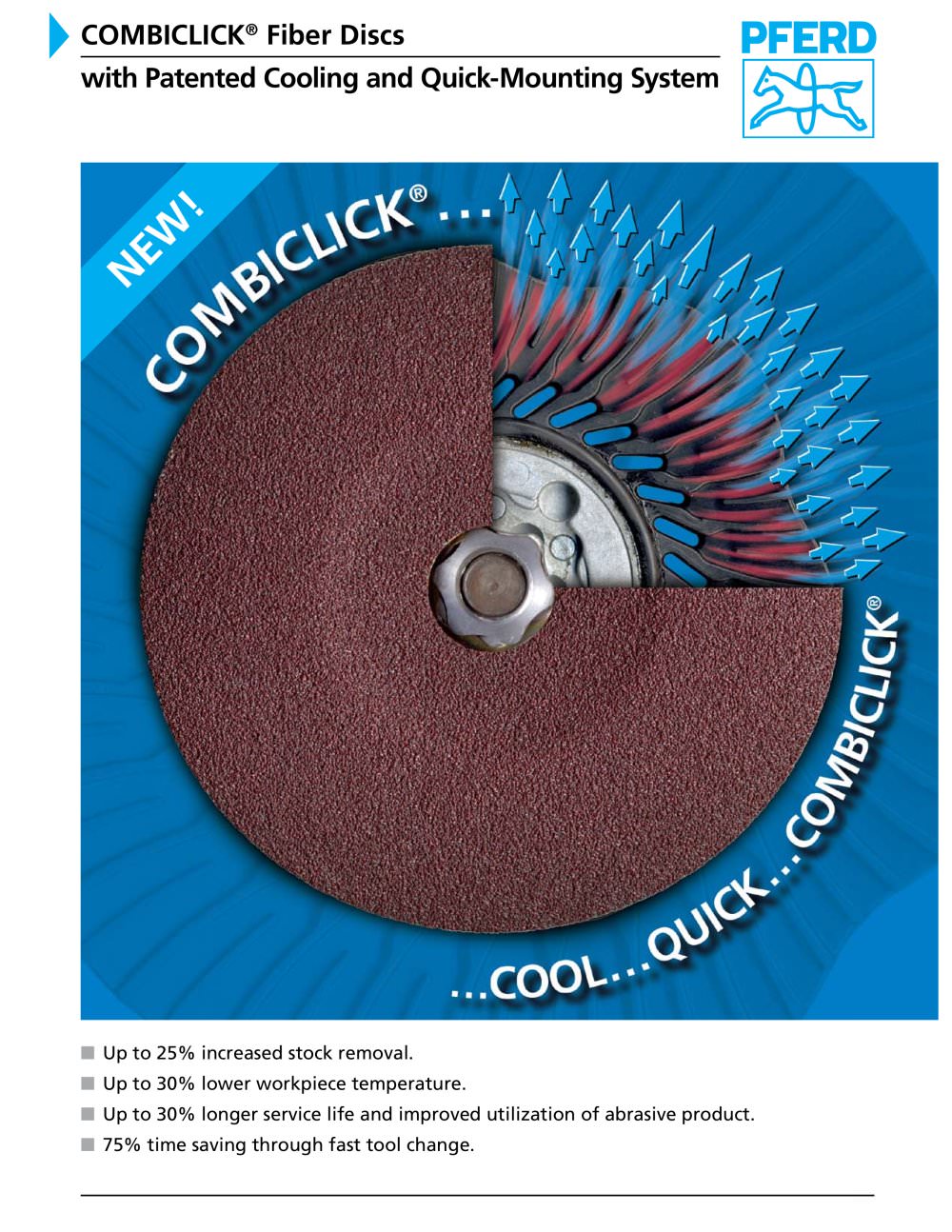

2008 COMBICLICK Quick-Change Fiber Discs-1

N Up to 25% increased stock removal. N Up to 30% lower workpiece temperature. N Up to 30% longer service life and improved utilization of abrasive product. N 75% time saving through fast tool change. >

Open the catalog to page 1

2008 COMBICLICK Quick-Change Fiber Discs-2

COMBICLICK 2. Optimized Backing Pad Introducing PFERD COMBICLICK > ή Quick-Change Fiber Discs and Backing Pads - a new, patented mounting and cooling system for use on angle grinders.Conventional quick-change fiber discs allow users to change up discs without the use of spanner wrenches. Reduced down-time for change-ups improves productivity. PFERD has designed and engineered a new system to improve disc performance and further reduce change-up time.PFERDs COMBICLICK > Ү discs clickӔ into place when presented to the backing pad, and need just a slight, effortless clockwise rota- tion to lock...

Open the catalog to page 2

2008 COMBICLICK Quick-Change Fiber Discs-6

COMBICLICK > ή Backing Pads This backing pad permits the use of COMBICLICK > fibre discs on all common angle grinders.The cooling slot geometry ensures a high throughput of air, thus significantly reducing thermal loads on the abrasive material and workpiece. The patented COMBICLICK > ή mounting system minimizes tool changing times. Safety note The peripheral speed must not exceed 80 m/s. Disc Diameter(Inches)ThreadSizeEDP NumberMax. RPM 4-1/2, 55/8-116947013,00014-1/2, 5M14 x 2.06947113,000175/8-1169474 8,60017M14 x 2.069475 8,6001 > PFERD quality certified according to EN ISO 9001. >

Open the catalog to page 6
