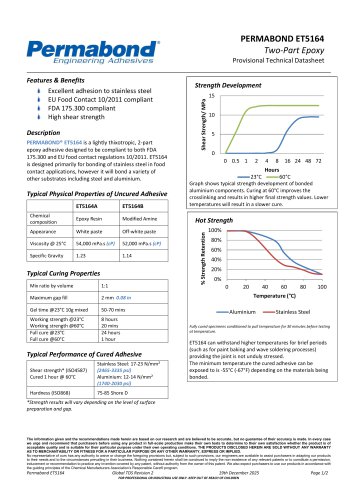

Engineering Adhesives PERMABOND ET5164Two-Part Epoxy Provisional Technical Datasheet Features & Benefits Excellent adhesion to stainless steel i EU Food Contact 10/2011 compliant t FDA 175.300 compliant High shear strength Description PERMABOND® ET5164 is a lightly thixotropic, 2-part epoxy adhesive designed to be compliant to both FDA 175.300 and EU food contact regulations 10/2011. ET5164 is designed primarily for bonding of stainless steel in food contact applications, however it will bond a variety of other substrates including steel and aluminium. Typical Physical Properties of Uncured Adhesive Graph shows typical strength development of bonded aluminium components. Curing at 60°C improves the crosslinking and results in higher final strength values. Lower temperatures will result in a slower cure. Hot Strength Typical Curing Properties Mix ratio by volume Typical Performance of Cured Adhesive Shear strength* (ISO4587) Cured 1 hour @ 60°C *Strength results will vary depending on the level of surface preparation and gap. Aluminium Stainless Steel Fully cured specimens conditioned to pull temperature for 30 minutes before testing at temperature. ET5164 can withstand higher temperatures for brief periods (such as for paint baking and wave soldering processes) providing the joint is not unduly stressed. The minimum temperature the cured adhesive can be exposed to is -55°C (-67°F) depending on the materials being bonded. The information given and the recommendations made herein are based on our research and are believed to be accurate, but no guarantee of their accuracy is made. In every case we urge and recommend that purchasers before using any product in full-scale production make their own tests to determine to their own satisfaction whether the product is of acceptable quality and is suitable for their particular purpose under their own operating conditions. THE PRODUCTS DISCLOSED HEREIN ARE SOLD WITHOUT ANY WARRANTY AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED. No representative of ours has any authority to waive or change the foregoing provisions but, subject to such provisions, our engineers are available to assist purchasers in adapting our products to their needs and to the circumstances prevailing in their business. Nothing contained herein shall be construed to imply the non-existence of any relevant patents or to constitute a permission, inducement or recommendation to practice any invention covered by any patent, without authority from the owner of this patent. We also expect purchasers to use our products in accordance with the guiding principles of the Chemical Manufacturers Association’s Responsible Care® program. Permabond ET5164 Global TDS Revision 2 19th December 2025 Page 1/2 FOR PROFESSIONAL OR INDUSTRIAL USE ONLY. KEEP OUT OF REACH OF CHILDREN

This product is not recommended for use in contact with strong oxidizing materials. Information regarding the safe handling of this material may be obtained from the safety data sheet. Users are reminded that all materials, whether innocuous or not, should be handled in accordance with the principles of good industrial hygiene. This Technical Datasheet (TDS) offers guideline information and does not constitute a specification. Surfaces should be clean, dry and grease-free before applying the adhesive. Use a suitable solvent (such as acetone or isopropanol) for the degreasing of surfaces. Some...
