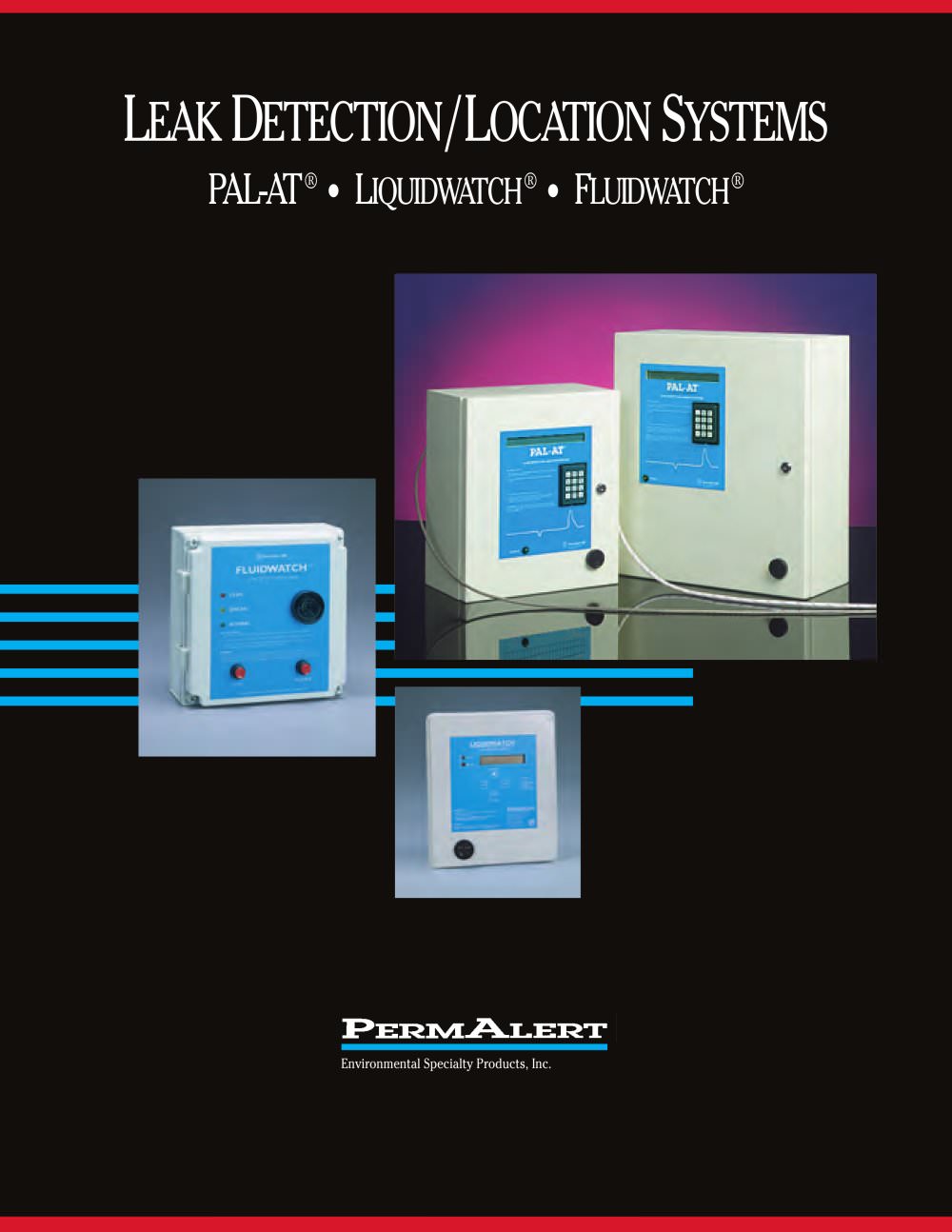

YSTEMS > PAL-AT L IQUIDWATCH Օ F LUIDWATCH Environmental Specialty Products, Inc. size="-5">

PAL-AT detects and locates leaks for: Computer Rooms, Jet Fuel Systems, Tank Farms and Clean Rooms. >

PermAlert leak detection systems provide protection for the following applications: Wet BenchesDry Storage Pharmaceutical Manufacturing Areas Process Control Rooms File Storage Areas Sprinkler System Monitoring Chemical Storage Areas Environmental Chambers Microfilm Storage Rooms Military Mothballing Facilities Cable Trays and Tunnels Microwave Relay Stations Museum Storage Radioactive Liquid Storage Landfill Leachate Piping Systems Hazardous Chemical Storage Double-Wall Piping POP SitesBuried Chilled/Hot Water Lines Buried Steam Lines Hospital Operating Rooms Ground Water Monitoring Manholes,Electrical/Mechanical...

PALCOM > ή software,(for Windows > 98/NT/XP) can centrally monitor up to 254PAL-AT monitoring units.A computer is connected to the PAL-AT units,using either twisted pair wireor modems.The softwarehas the ability to continuously monitor the status and/or remotely operate each PAL-AT.Connecting 254 PAL-ATs to a host comput-er,allows over 2,000 miles of sensing string to be monitored.The PALCOM archive feature keeps arecordof all system events.These events can be reviewed or printed for trouble shooting or documentation for reports. The remote key-pad feature allows the operator to view a PAL-AT...

Halar > Overbraid Braid Wire* Polymer Helix Spacer > Insulated Center Conductor PFACoating onCenter Conductor > Halar > ή Overbraid Braid Wire* > Polymer Yarn Spacer Insulated Center Conductor PFA Coating on Center Conductor > Polyester Overbraid Hydrocarbon-Only Permeable Jacket Braid Wire > Insulated Center Conductor PFA Coating on Center Conductor Hydrocarbon Permeable Core *Gold cables have polymer coated braid wire. >

PWS probes PSTV and PTHL Probes will detect water-based liquids.PWS and PHL probes are used in tandem to monitor double-wall tanks containing hydrocarbon products for water and hydrocarbon leak detection. are float switches,designed forinstallation in a 2" stand pipe on double-wall tanks.Itallows monitoring of the interstitial space of a double-wall tank or high/low level of the product in the tank. PFS probes are float switches designed to monitor liquidsin manholes,sumps,etc.It will detect water-based orhydrocarbon liquids. PT10 Probe Integrators allow the PAL-AT to monitor anynormally closed...

1.1 The Discrete Point Monitoring System (D.P.M.S.) shall consist of amonitoring unit,probe module,relay module and probes The D.P.M.S.shall be capable of detecting liquids in contact with a sensor probe connected to the monitoring panel.It shall not detect vapors or gases. 1.2 When liquid is detected,an audible alarm shall sound and an LCDreadout of the probe activation shall be visible on the front display.The D.P.M.S.system shall alarmwithin one (1) minute or less after contactwith liquid. > 1.3 The system supplier shall have at least ten (10) years experiencein the manufacturing of leak detection...

1.1 FluidWatch Leak Detection System shall consist of an electronic moni-toring unit,coaxial water-sensing cable,interconnecting jumper cable,cable clamps and identification tags.All cable connectors shall be factory installed.The system supplier shall have at least five (5) years experience in themanufacture of the leak detection systems. Part 2 - > 2.1 2.2 The monitoring unit shall be able to monitor one length of sensingcable.Three(3) LED's shall be visible on the door of the unit indicatingSystem Monitoring (Green),Leak Detected (Red),or Cable Break (Yellow). The unit shall have an audible...
