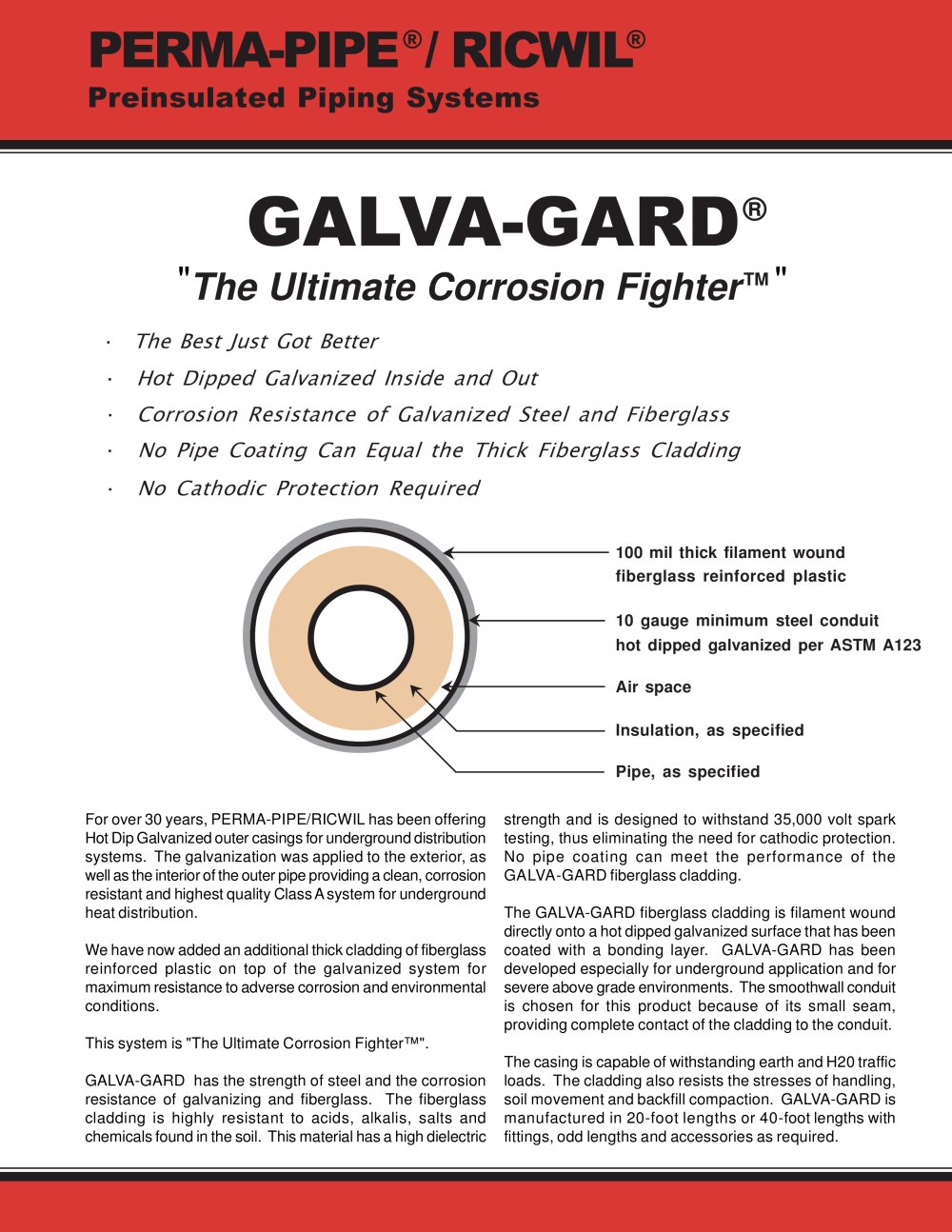

" The Ultimate Corrosion Fighter > Ι " > 100 mil thick filament woundfiberglass reinforced plastic10 gauge minimum steel conduithot dipped galvanized per ASTM A123Air spaceInsulation, as specifiedPipe, as specified For over 30 years, PERMA-PIPE/RICWIL has been offeringHot Dip Galvanized outer casings for underground distribution systems. The galvanization was applied to the exterior, as well as the interior of the outer pipe providing a clean, corrosion resistant and highest quality Class A system for underground heat distribution.We have now added an additional thick cladding of fiberglassreinforced plastic on top of the galvanized system for maximum resistance to adverse corrosion and environmental conditions.This system is "The Ultimate Corrosion Fighter". GALVA-GARD has the strength of steel and the corrosionresistance of galvanizing and fiberglass. The fiberglass cladding is highly resistant to acids, alkalis, salts and chemicals found in the soil. This material has a high dielectric strength and is designed to withstand 35,000 volt sparktesting, thus eliminating the need for cathodic protection. No pipe coating can meet the performance of the GALVA-GARD fiberglass cladding.The GALVA-GARD fiberglass cladding is filament wounddirectly onto a hot dipped galvanized surface that has been coated with a bonding layer. GALVA-GARD has been developed especially for underground application and for severe above grade environments. The smoothwall conduit is chosen for this product because of its small seam, providing complete contact of the cladding to the conduit.The casing is capable of withstanding earth and H20 trafficloads. The cladding also resists the stresses of handling, soil movement and backfill compaction. GALVA-GARD is manufactured in 20-foot lengths or 40-foot lengths withfittings, odd lengths and accessories as required. size="-4">

Open the catalog to page 1

GENERAL SERVICE PIPE INSULATION All underground heat distribution lines,as shown on the contract drawings,shall be fiberglass clad hot dipped gal-vanized steel, conduit GALVA-GARD,as manufactured by PERMA-PIPE.The system supplier shall have at leastfive years experience in fabricated sys-tems of the composition defined herein.All straight sections, fittings, anchorsand other accessories shall be factoryprefabricated to job dimensions. Eachsystem layout shall be analyzed by thepiping system manufacturer to deter-mine stresses and movements of theservice pipe. The system design shall bein...

Open the catalog to page 2
