■ Installation in suitable enclosures in Zone 1 ■ Module can be exchanged under voltage (hot swap) ■ Dry contact or NAMUR inputs ■ Positive or negative logic selectable ■ Simulation mode for service operations (forcing) ■ Line fault detection (LFD) The device accepts digital input signals of NAMUR sensors or mechanical contacts from the hazardous area. Open or short circuit line fault alarms are detected. The inputs are galvanically isolated from the bus and the power supply (EN 60079-11). Release date: 2023-06-20 Date of issue: 2023-06-20 Filename: 276216_eng.pdf Technical Data Slots Occupied slots Supply Connection Rated voltage Power dissipation Power consumption Internal bus Connection Interface Digital input Number of channels Ur 12 V DC , only in connection with the power supplies FB92** 0.95 W 0.95 W manufacturer-specific bus to standard com unit Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group www.pepperl-fuchs.com [email protected] [email protected]

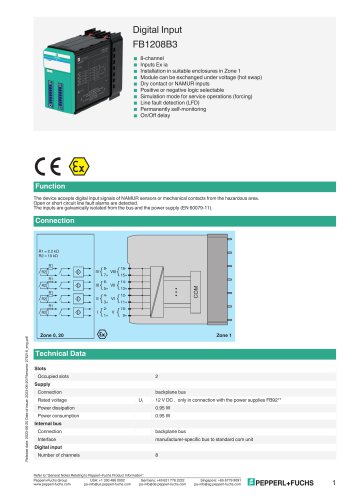

FB1208B3 Release date: 2023-06-20 Date of issue: 2023-06-20 Filename: 276216_eng.pdf Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group www.pepperl-fuchs.com

Digital Input International approvals ATEX approval Presafe 19 ATEX 14058U IECEx approval IECEx PRE 19.0013U General information System information The module has to be mounted in appropriate backplanes and housings (FB92**) in Zone 1,2, 21,22 or outside hazardous areas (gas or dust). Here, observe the corresponding EC-type examination certificate. Supplementary information EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Release date:...
