V-200 series

Product catalog summary

Overview: The V-200 series, including models V-227N and V-227, is a line of electronic theodolites and total stations designed for ease of use, affordability, and robust performance. These instruments are suitable for a variety of construction applications and are accessible to users of all skill levels.

Key Features:

Reflectorless Measurement: Capable of measuring distances up to 90 meters without a prism and up to 1900 meters with a single prism, maintaining a standard deviation of ±(3+2ppm x D).
Optics: Equipped with Pentax precision optics offering 30x magnification and a resolving power of 3".
User Interface: Features a simple, intuitive interface with a large LCD display and navigation keys for easy operation.
Data Management: Includes internal memory with a capacity of 6000 points and supports data exchange via RS-232 cable.
Battery: Uses a standard camcorder battery, providing a full day of operation and eliminating the need for costly customized batteries.
Portability: Compact and lightweight design for easy transport.

Specifications:

Angle Measurement: Utilizes an absolute rotary encoder with a minimum angle display of 5"/10" and a standard deviation of 7".
Distance Accuracy: Reflectorless accuracy of ±(5+2ppm x D)mm and prism accuracy of ±(3+2ppm x D)mm.
Measurement Time: Normal prism measurement takes 2.0 seconds, while tracking takes 0.4 seconds.
Water Resistance: Rated IP44 for instrument only.
Dimensions and Weight: Measures 172(W) x 343(H) x 177(L)mm and weighs 5.4kg including the battery.

Applications: The V-200 series supports various surveying applications such as surveying, stake out, point to line, graphical view, free station, remote height, 2D surface, and remote distance measurement. Note that the V-227 does not support Polar Coordinates.

Safety and Compliance: The device is classified as a Class II laser product, conforming to FDA regulations.

Contact Information: For more details, users can contact Pentax Industrial Instruments Co., Ltd. in Japan or Pentax Technologies Europe in Belgium.

Catalog excerpts

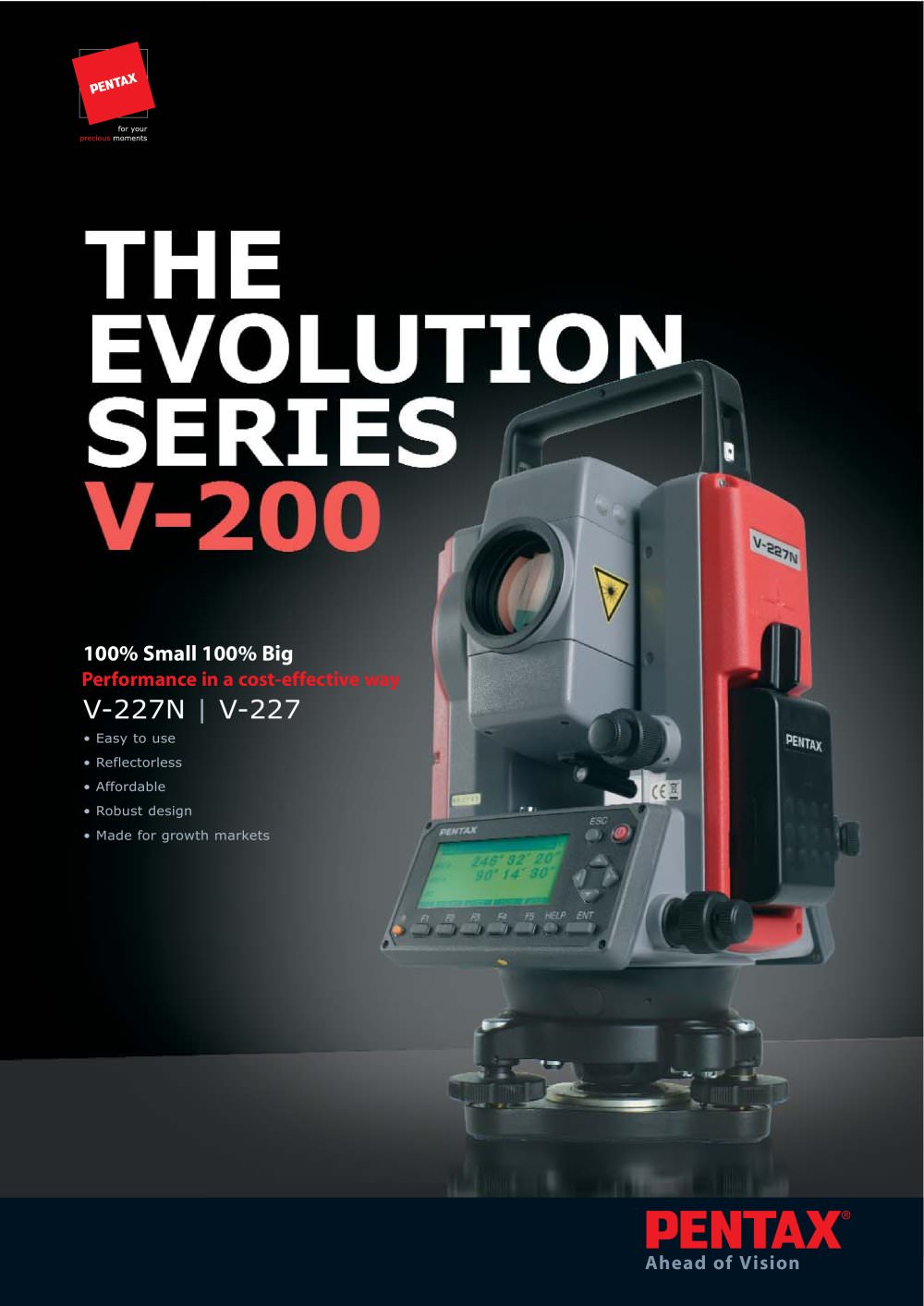

? Easy to use? Reflectorless? Affordable ? Robust design ? Made for growth markets Ahead ofVision >

Open the catalog to page 1

Internal memory with a large storage capacity of 6000 points Pentax PrecisionOptics with 30 x magnificationLarge LCD Display Navigation Key Absolute rotaryencoder keeps the absolute angle position even after shutdown of the V-200Standard Camcorder Battery Upload anddatatransfer via onboard data connection >

Open the catalog to page 2

The V-200 measures distances,with or without prism,with ease.Quicklyselect the desired laser ֖ mode with only one keystroke and the built-in distance meter measures inaccessible points up to 90 meters away wit- hout a prism and range up to 1900 meters using a single prism unit whilemaintaining a standard deviation of (3+2ppm x D). > All inspection operations are directly controlled via five keys and astandard user interface with a pull-down menu that guides you through setup and survey routine execution. > The V-200 features a large LCD display which is easy to read. > Information between the...

Open the catalog to page 3
