R-300series

Product catalog summary

Introduction
The R-300 series by Pentax offers a range of Total Stations designed for efficient surveying solutions. These instruments are known for their high performance, versatility, and affordability, catering to various measurement applications.

Standard Configuration
Each R-300 Total Station comes with a battery pack, charger, plumb bob, a set of tools, rain cover, carrying case, and a manual. The R-322(N) and R-322 models feature a second display as standard, while it is optional for other models.

Key Features

Electronic vial and laser plummet for easy setup and centering.
Dual Prismless Mode EDM with a range of 90 to 180 meters.
30x magnification telescope with eye-safe visible laser pointer.
Absolute Encoder for error reduction and Dual Axis Compensator for alignment.
Large graphic display and alphanumeric keyboard for ease of use.
Internal memory capacity of 7,500 points.
Waterproof and dustproof with IPX6 rating.

Measurement Accuracy

R-322(N): 2” accuracy, 0.6 mgon
R-323(N): 3” accuracy, 1.0 mgon
R-325(N) and R-315(N): 5” accuracy, 1.5 mgon
R-326: 6” accuracy, 1.9 mgon

Software and Data Management
The R-300 series is equipped with PowerTopoLite and PSF software for data collection and processing. Data can be uploaded and downloaded via RS-232C, and the DL-01 software facilitates data transfer and conversion.

Applications
The R-300 series is suitable for various surveying tasks, including cadastral surveys, construction surveys, and interior measurements. Its flexibility and integrated performance make it a valuable tool for improving inspection efficiency.

Specifications

Telescope: 30x magnification, 1°30’ field of view.
EDM: Visible laser, range up to 5600 meters with triple prism.
Operating temperature: -20°C to +50°C.
Weight: 5.5 to 5.7 kg including battery.

Conclusion
The Pentax R-300 series Total Stations provide a comprehensive solution for surveying needs, combining advanced technology with user-friendly features to enhance productivity and accuracy in the field.

Catalog excerpts

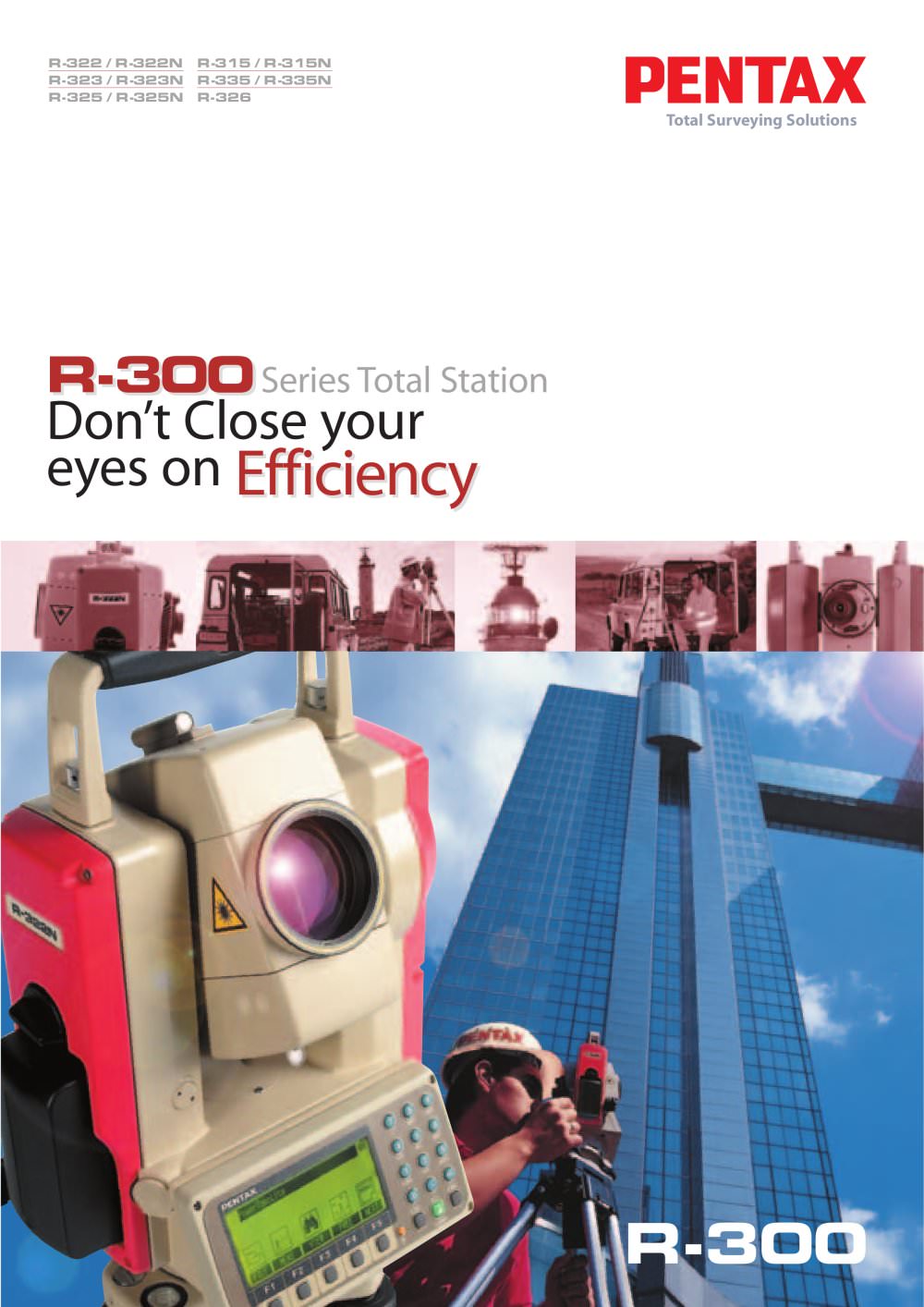

Pentax,a name you have known for a long time.But,how well do youknow our products,innovations and services? The requirements on surveying have changed dramatically over the past few years. Shorter set-up times,optimum and maximum productivity are whatthe market demands.We want you to compare! > Pentax never stops searching for ways to make things work better.Just choose any R-300 Total Station and try a few simple tests. > ԕ Electronic vial easy-to-operate through function keys. Laser plummet Easy to center over a set up point and step-by-step adjustable intensity of the plummet laser point to...

Open the catalog to page 2

Handy ergonomic handgripEasy-to-target collimatorPrismless Auto Focus EDM Auto Focus [World First Triple Focusing System]ՕWorld First Dual Prismless Mode EDM [90 / 180m]Telescope with 30x magnificationՕEye-safe Visible Laser pointerAbsolute Encoder Reflective tapes may also be used as targets eliminates the need for indexing after power-up,even after shutdown of the instrument.This results in reduced likelyhood of errors. Dual Axis Compensator guarantees perfect horizontal and verticalalignment and performs fine leveling. Automatic Atmospheric CorrectionIndicator LED for reflectorless measurement...

Open the catalog to page 3

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:5.00pt "Palatino Linotype", serif; } .font7 { font:4.00pt "Trebuchet MS", sans-serif; } R-300 SERIES Spcifications o o g 3 R-322 (N) | R-323 (N) R-325 (N) | R-315 (N) | | R-322 | R-323 | R-325 | R-315 R-326 T髩lescope Image ^^^^^^H ^^^^^^H Erect Magnification Resolving...

Open the catalog to page 6
