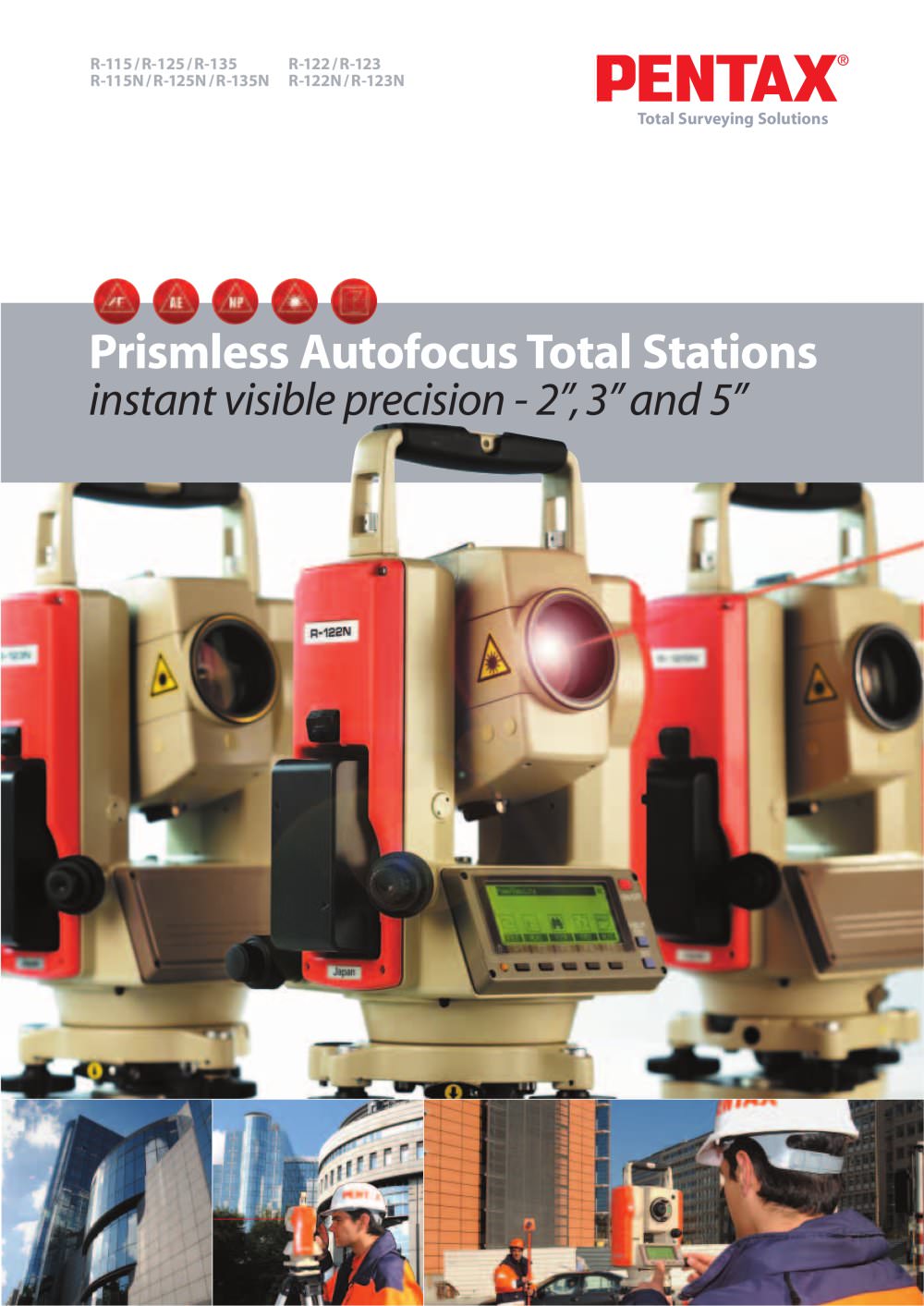

R-100 Trio

Product catalog summary

Overview: The R-100 series by Pentax represents a new generation of high-performance Total Stations, offering advanced features for surveying tasks. These instruments are designed for economy, speed, and ease of use, featuring the world's first non-prism autofocus system.

Key Features:

Non-Prism Autofocus: Allows for precise measurements without the need for a prism, using a visible laser pointer.
Advanced Software: On-board applications support various measurement modes and data collection.
Optical Excellence: World-class optics ensure sharpness and accuracy in all measuring modes.
Battery and Storage: Long battery life with intelligent charging and large data storage capacity.
Display and Interface: Large graphical display and user-friendly interface for ease of operation.

Specifications:

Telescope: 30x magnification, 45 mm aperture, 1°30’ field of view.
Distance Measurement: Ranges from 50 m (non-prism) to 5,600 m (3 prisms) with varying accuracy based on model.
Angle Measurement: Utilizes an absolute rotary encoder with accuracy ranging from 2” to 5” standard deviation.
Compensator: Dual-axis compensator with a correction range of ±3 minutes.
Environmental Standards: Operates in temperatures from -20°C to +50°C, with IPX-4 water resistance.

Applications: Suitable for civil engineering, construction, and industrial applications, the R-100 series is robust and reliable under various conditions.

Accessories: Includes options like diagonal eyepieces, bar compasses, solar filters, and remote control units to enhance functionality.

Conclusion: The R-100 series Total Stations are designed for high performance and versatility, making them ideal for a wide range of surveying tasks. Their advanced features and robust design ensure precision and reliability in challenging environments.

Catalog excerpts

Special Handgrip PrismlessAuto Focus EDM Reflective tapes may also be used as targets Visible laser pointer Dual Axis compensator AbsoluteEncoder Infrared Control Port for optional Remote Control Alpha KeyboardMU72 PowerTopoLite on-board Data Collection Software NiMh Battery With the compact NiMh battery,the R-100 user can go anywhere to measure for up to a whole working day long (6 - 12 hours)without having to depend on a power source. Large graphic display 7,500 PointsInternal Memory Compact and Lightweight Data upload and downloadthrough RS-232C 5.2 - 5.5 kg (Battery included) > IPX4 Water...
