PLP-70

Product catalog summary

Overview: The PLP-70C and PLP-70R are self-leveling laser instruments designed for construction applications, featuring a visible bright diode laser with horizontal and vertical rotating beams. They are suitable for both indoor and outdoor use, providing precise alignment and leveling capabilities.

Technical Specifications:

Accuracy: Horizontal beam ±10", Vertical beam ±15".
Operating Range: Rotating beam radius of 0.5 to 200 m with LS3 detector, and 0.5 to 50 m by eyesight indoors.
Self-Leveling Range: ±10% (±5.7°).
Light Source: Visible laser diode, Class 2 safety standard.
Beam Rotation Speed: Options of 300 rpm, 120 rpm, 60 rpm, and 0 rpm.
Beam Scan Angle: 2°, 10°, 45°, and 90°.
Waterproof Rating: IPX 6, watertight construction.
Power Source: 4 D-Cell alkaline batteries or optional Ni-Cad battery pack.
Operating Temperature: -20°C to +50°C.

Features:

Visible Laser Beam: Designed for easy alignment with adjustable laser line width.
Self-Leveling: Automatic leveling with horizontal and plumb beam emission.
Remote Control (LC1): Allows control of rotation speed, beam scan, position, focus, and line control.
Detector Mode: Optional LS3 detector enhances visibility in challenging conditions.

Standard Configuration:

1 PLP-70C/R instrument
4 D-Cells (C)
1 Remote control (LC1)
2 AA-Cells
1 Carrying case
1 Screwdriver (-)
1 Instruction manual

Optional Accessories:

Ni-Cad battery pack (LB03)
Charger (MC04)
Detector (LS3)

Dimensions and Weight:

Instrument: W 177 x D 195 x H 262 mm, 2.9 kg with battery.
Remote Control: W 50 x D 179 x H 24 mm, 200 g.

Catalog excerpts

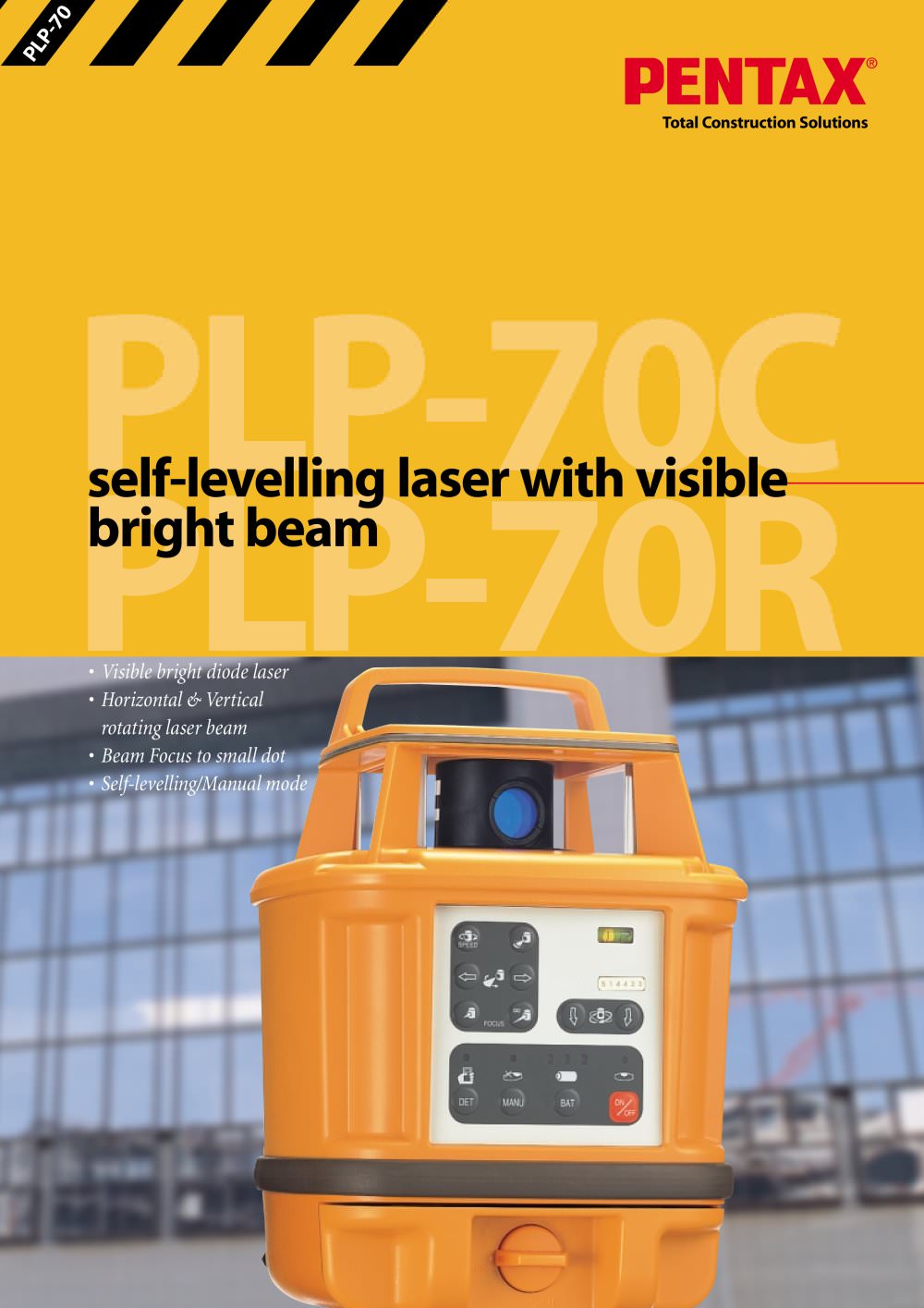

PLP-70 Total Construction Solutions Visible bright diode laserՕHorizontal & Verticalrotating laser beamBeam Focus to small dot ՕSelf-levelling/Manual mode >

Open the catalog to page 1

Power source Accuracy TypeAlkaline 4 D-CellRechargeable Ni-Cad battery Horizontal rotating beam10є Operating power voltageDC5.0 to 6.0 V Vertical rotating beam15є Operating time at 20CApprox.20 hoursApprox.8 hours Operating range Waterproof Waterproof construction (IPX 6:Watertight type) Rotating beamRadius 0.5 to 200 m (by LS3 detector) Radius 0.5 to 50 m (by eyesight indoors) Operating temperature - 20аC to + 50C Top plumb beam0.5 to 50 m (by eyesight indoors) Bottom plumb beamWithin 15 m (by eyesight indoors) Tripod screw JIS/B type (W5.8Д- 11) Self-leveling range 10 % (ѱ5.7) Dimensions W...

Open the catalog to page 2
