PLP-600

Product catalog summary

Overview: The PLP-600 Series is a range of automatic self-levelling lasers designed for construction sites, offering models PLP-601R, PLP-602R, PLP-601, and PLP-602. These lasers are known for their fast and reliable performance, suitable for both interior and exterior applications.

Specifications: The lasers are waterproof and dustproof with an IPX6 rating, ensuring functionality under harsh conditions. They feature a robust aluminum casing with shock protection. The accuracy of the reference beam is ±10" for PLP-601R/601 and ±12" for PLP-602R/602. The measuring range is up to 200 meters for PLP-601R/601 and 120 meters for PLP-602R/602. The lasers use a visible laser diode with a wavelength of 635 nm and a maximum output of 1.0 mW, classified as Class 2 IEC/Class II FDA.

Features: The PLP-600 Series offers automatic self-levelling with a range of ±10% (±5.7°). The rotation speed can be switched between 300 rpm and 600 rpm. The power supply options include rechargeable Ni-MH batteries or 4 D-cell alkaline batteries, with an operating time of 12 to 48 hours depending on the model.

Detector LS6: The LS6 detector provides high and low detection accuracy of ±1 mm and ±2.5 mm, respectively. It features a liquid crystal display, buzzer, and a 2-sided display for easy reading. The detector is powered by a DC9V battery, offering approximately 40 hours of operation.

Applications: These lasers are ideal for general construction, building site levelling, and interior construction. The LS6 detector enhances usability by indicating the reference level with audio signals and a display.

Benefits: The PLP-600 Series is praised for its high throughput, ease of use, ruggedness, accuracy, and competitive pricing. The automatic compensator design ensures quick levelling and high accuracy throughout the job.

Standard Configuration: Each unit comes with Ni-MH batteries (for PLP-601R/602R), 4 D-cell batteries (for PLP-601/602), a charger, LS6 hand-held laser detector, LA6 rod adapter, operation instructions, and a carrying case.

Contact Information: Pentax Industrial Instruments Co., Ltd., located in Tokyo, Japan, is the manufacturer. They are a member of the Japan Surveying Instruments Manufacturers’ Association, representing high-quality surveying products.

Catalog excerpts

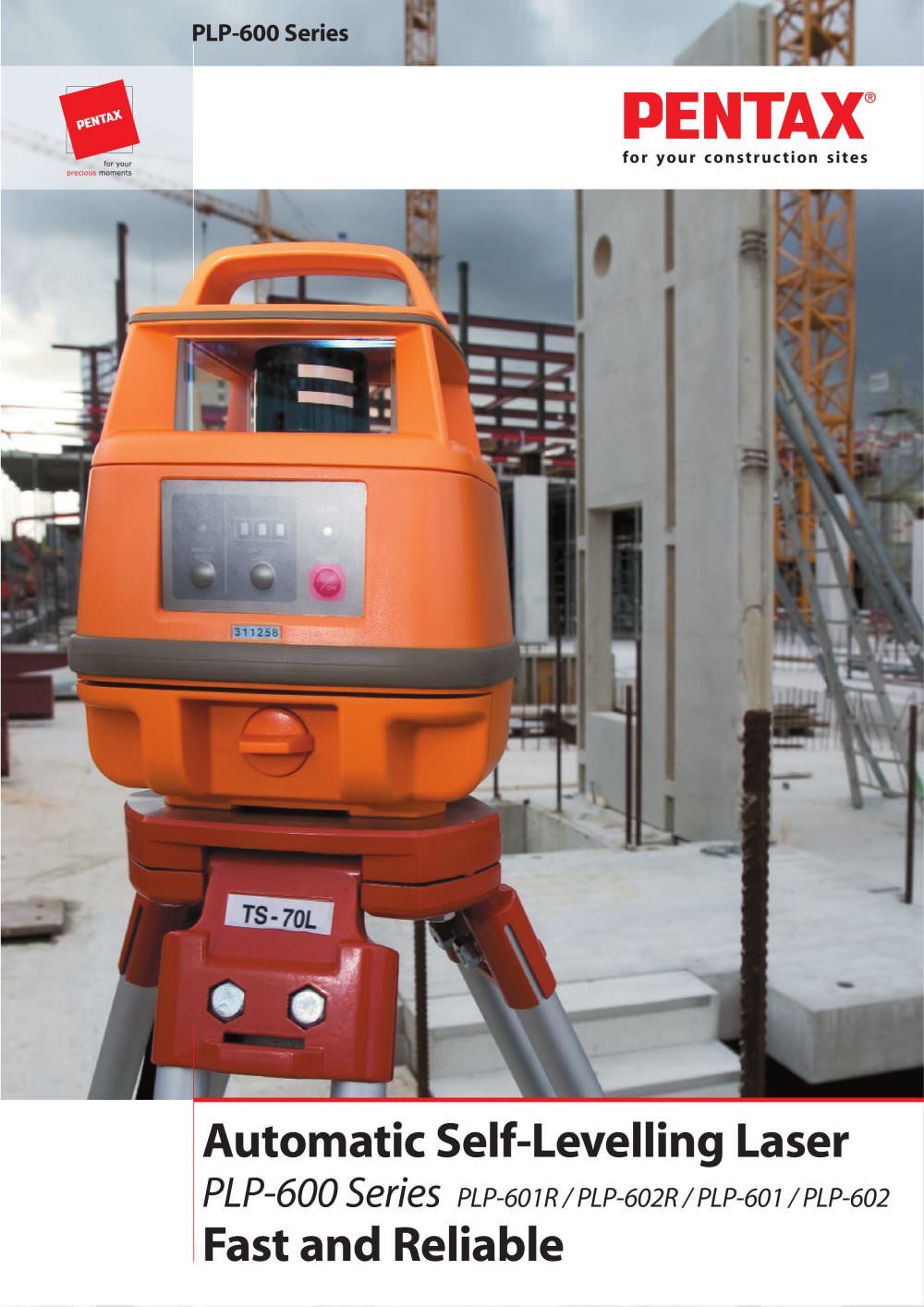

PLP-600 Series for your construction sites Automatic Self-Levelling Laser > PLP-600 Series PLP-601R / PLP-602R / PLP-601 / PLP-602 Fast and Reliable >

Open the catalog to page 1

Waterproof and dustproof:the PLP-601R/602R and the PLP-601/602 are manufactured to IPX6.The instrument can be used safely under the harshest conditions such as rain or in a damp atmosphereRobust aluminium casingShock protection Shock protection > The Multipurpose Self-levelling Construction Laser is the best choice for General Construction,Building Site Levelling and for Interior Construction. With the rear display on the LS6Detector the reference point canbe easily read from both thefront and the rear of the receiver >

Open the catalog to page 2

The new PLP-601R/602R and PLP-601/602 Pentax Construction Lasers for an unequalled performance.With their Quick Automatic Self-levelling mechanism,extreme simplicity and Pentax laser experience,these lasers are the ideal solutionfor interior and exterior applications. > High throughput Ease of use Rugged Accurate Fast Can be used with hand-held laser detector Highly competitive price The PLP-600 Series allow extremely fast,reliable levellingof the laser beam.Simply set it up and turn > ђ for useonly seconds later.No circular vial to observe,no levelling screws to operate.The beam is automatically...

Open the catalog to page 3
