DA-20F
4Pages

Catalog excerpts

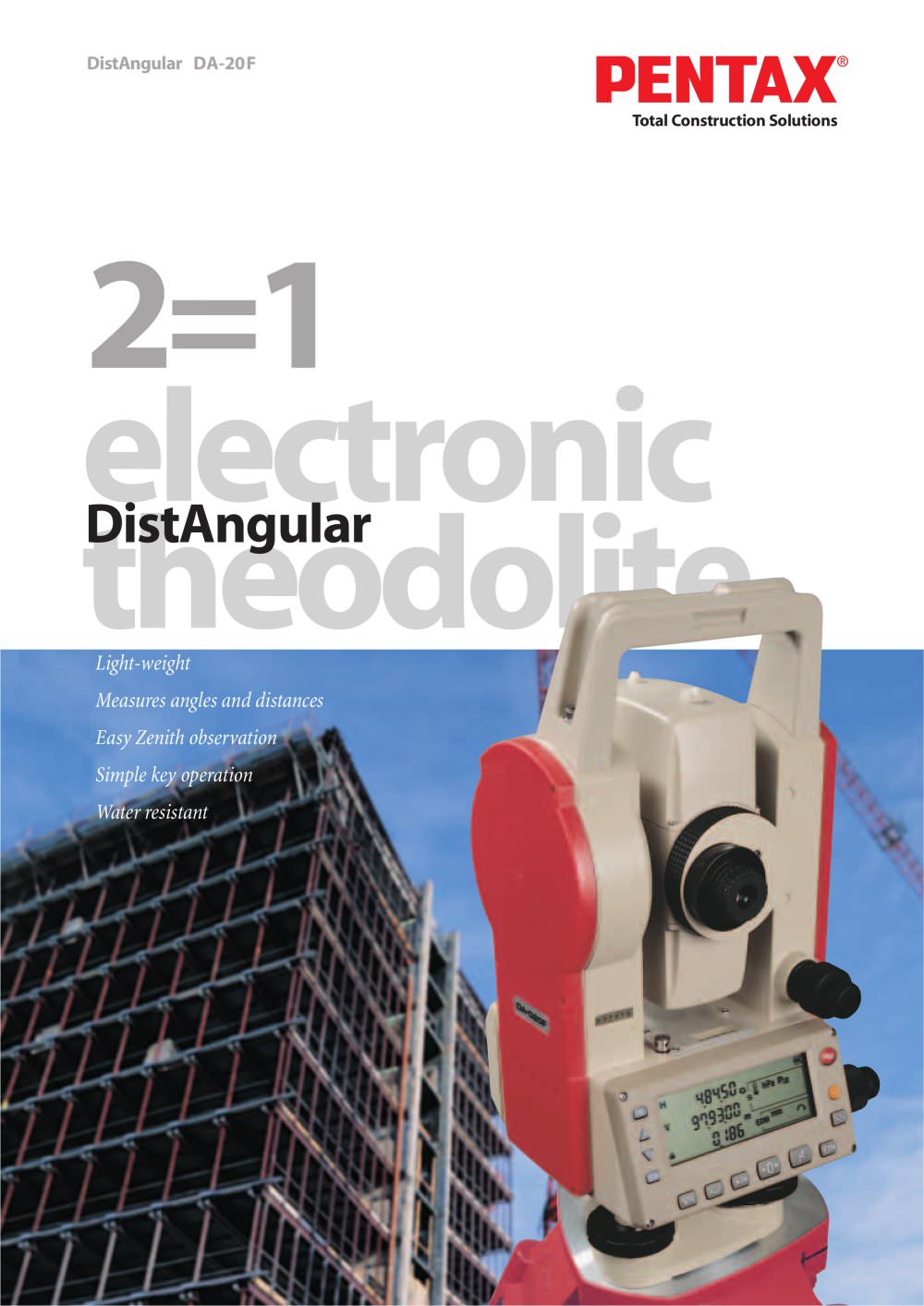

DistAngular DA-20F Total Construction Solutions 2=1 electronictheodolite > DistAngular Light-weightMeasures angles and distances Easy Zenith observation Simple key operation Water resistant size="-2">

Open the catalog to page 1

The DistAngularՒs operator interface isdesigned with improved ergonomics forincreased usability. The Pentax DistAngular (Distance + Angles)combines an electronic theodolite with a built-in coaxial distance meter.Pentax DistAngularmakes construction site measurements easy todo and is less time consuming.Simple operation is the major design feature.The universal display and keyboard use universally understandable icons.The inclined handle allows the telescope to be positioned for straight upobservations,for the alignment of tall buildings.The DistAngular is compact and easy to handle.The 24x...

Open the catalog to page 2

Total Construction Solutions The DistAngular combines the capabilities ofthe state-of-the-art electronic theodolite and a co-axial distance meter in one compact,fully integrated ,easy-to-use unit.ՕDistAngular hits construction cost reductiontargets and is an incredible time-saver .DistAngular adds measurement flexibility toyour daily job. > ՕBy adopting this unique multi-functionElectronic Theodolite you can handle a varietyof measuring tasks Integrated solution = Reducing Time & Increases Throughput. and speed up themeasuring job by eliminating unproductive,time-consuming operations such...

Open the catalog to page 3

Battery pack BP01 Setting up time10 min Power sourceLithium - ion (rechargeable) Ambient temperature Output voltageDC 7.2 V Working range-10հC to +50C / -4аF to +122F Operation timeContinuous approx.2.5 hrs Tripod thread 5/8ДX 11 (JIS / B) WeightApprox.90 g Dimensions / Weight Charger Instrument 142 (W) x 303 (H) x 148 (L) mm / 3.5 kg Input voltageAC 100 V - 240 V Carrying case 300 (W) x 212 (H) x 465 (L) mm / 2.3 kg Output voltageDC 6.3 V Charging timeApprox.60 min WeightApprox.270 g > Printed in Belgium 01/2000 Telescope > Angle measurement ImageErect Measuring methodIncremental rotary...

Open the catalog to page 4
