Product catalog summary

Overview
The document provides a comprehensive overview of the Pentax ATS-Series Total Surveying Solutions, highlighting its flexibility, productivity, and power. It details the integration of advanced hardware and software to enhance surveying accuracy and efficiency.

Key Features

Remote Control Alpha Keyboard: Enhances data entry speed and accuracy with the MU72 Infrared Remote Control.
Easy Key Operation: Soft keys and a simple keyboard design reduce training time and improve productivity.
Accurate Measurements: Utilizes a photoelectric encoder and tri-axis correction for precise angle measurements.
Data Transfer: Supports data transfer via cable or PCMCIA card-reader, with optimized memory cards for durability and data retention.
Performance: Distance measurements up to 2,700 meters with Pentax EDM-systems.

Software Solutions

PowerTopo: A user-friendly application with features like graphical displays, volume calculations, and multi-language support. It offers a development kit for custom applications and seamless integration with external data collectors.
Pythagoras: A CAD application designed for surveyors, offering modular solutions and integration of raster and vector data for comprehensive mapping and design.

Specifications

Telescope: 32X magnification, 45 mm aperture, and 1.3 m minimum focus.
Distance Measurement: Ranges up to 3,600 meters with accuracy adjustments for atmospheric conditions.
Angle Measurement: Dual-axis compensator with a correction range of ±3’.
Display: Graphic LCD with illuminated display and multiple function keys.
General: Operates in temperatures from -20°C to +50°C, with a weight of 7.0 kg including battery.

Certifications
The ATS-Series is certified under ISO 9001 and ISO 14001 standards, ensuring quality and environmental management compliance.

Contact Information
Includes contact details for Pentax offices worldwide, providing support and distribution information.

Catalog excerpts

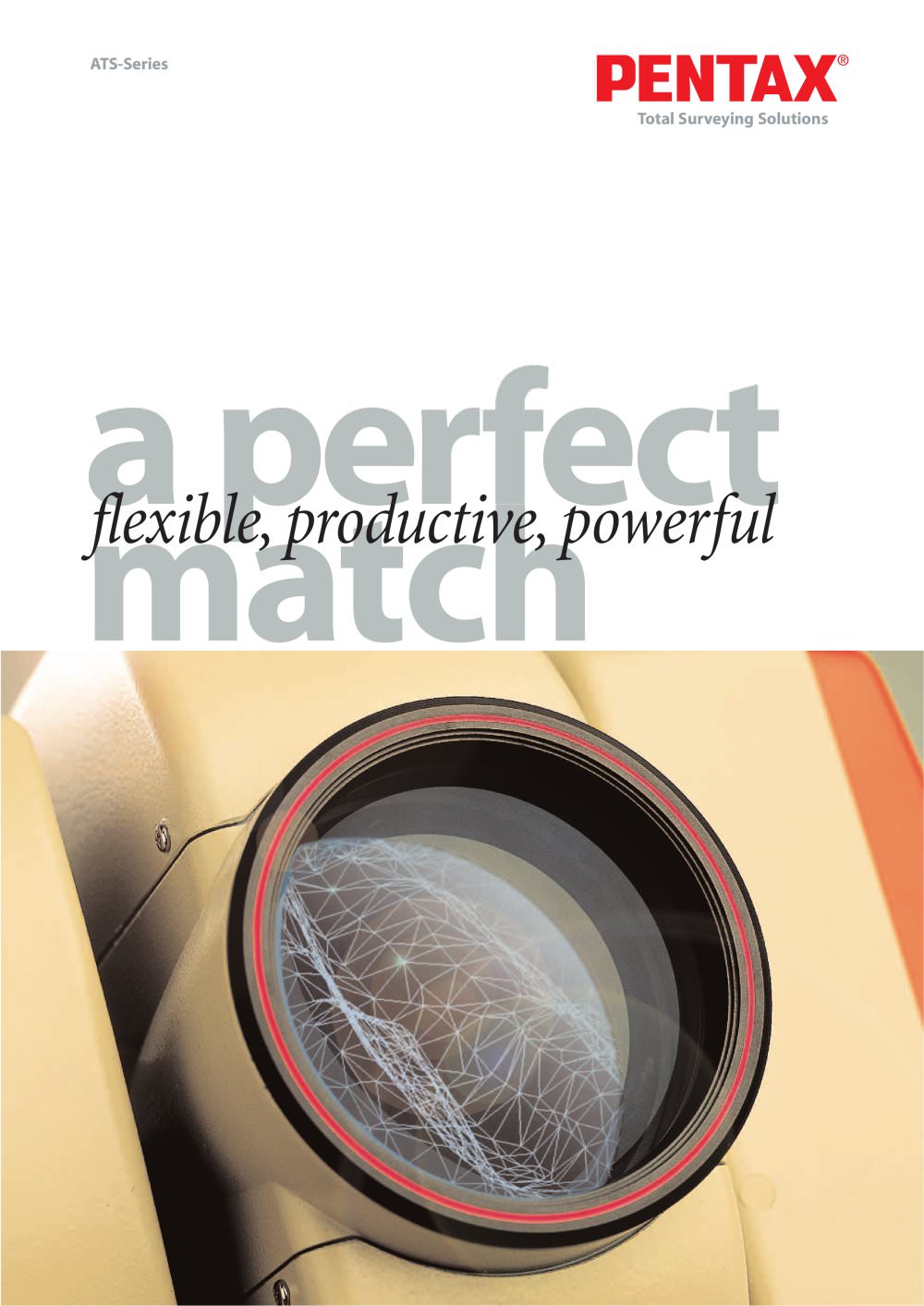

Total Surveying SolutionsATS-Series

Open the catalog to page 1

Total Surveying Solutions The Pentax ATS-series of Total stations is the result of merging high level hardware and optics with a DOS-compatible operating system. > Easy Key Operation A row of soft keys changes designation dependingof the function or program currently being used.Menu items are selected by cursor or numeric keypad.These methods keep the keyboard simple and the operation intuitive and logical.Training time is reduced and productivity is enhanced > Remote Control Alpha Keyboard Entering descriptions faster and easier is available with the Accurate > MU72 Infrared Remote Control.Accuracy...

Open the catalog to page 2

The new user friendly generation of open architecture application programs from Pentax. > PowerTopo main menu 1 PowerTopo main menu 2 Ease of use With the combination of the soft key control panel and the icon-based operator-friendly interface of PowerTopo and its efficient,well structuredfunction selection method,experienced operators become faster anduntrained operators become proficient in less time. Versatility Many exclusive PowerTopo features make operation of a Total Station faster and more efficient than ever before. Development Kit Pentax can offer you a development environment within...

Open the catalog to page 3

Advanced Total Station - ATS > Advanced Total Stations must be able to gather large amounts of data quickly and accurately. PowerTopo > Datacollecting Software must be capable of processing data and information accurately and providing meaningful analyses. Pythagoras > With continuing focus on Process Automation it is critical that datacollecting software is also able to seamlessly interface with powerful CAD -systems. ATS,PowerTopo and Pythagoras, the Total Surveying Solution. >
