OPTIM 2.0
OPTIM 2.0
OPTIM 2.0 is a versatile device designed for precise measurement of the speed of sound in various gases, including air, CO2, N2, CH4, and gas mixtures. It also measures other gas properties such as temperature, attenuation, pressure, and concentration. The device is compact, low power, and suitable for both laboratory and industrial applications.
- Precise Time of Flight (ToF) measurement with 50ps resolution.
- Wide range of speed of sound measurement up to 1000m/s.
- Supports gas quality and ultrasound attenuation measurements.
- Includes hardware peak detector for amplitude measurements.
- Automatic signal conditioning and several configurable measurement modes.
- Manual control mode for testing and open communication protocol.
- Stores up to 100 settings sets and includes self-hardware diagnostics.
- USB interface available with easy-to-use ASCII protocol over RS232.
- Supports firmware updates and integration with other systems.
- Compact size and low power consumption (1W typical).
- Dimensions: 185 x 35 x 109 mm (box), 185 x 40 x 136 mm (with wall mounting adapters).
- Weight: 490g.
- Power Supply: 5.0 V DC, with a range of 4.5 – 5.5 V DC.
- Current Consumption: Typical 200mA, maximum 500mA.
- Speed of Sound Measurement: Time of Flight principle, range 100 to 1000 m/s, resolution 100 ps.
- Pulser: Single positive pulse, amplitude up to 360 V, fall time <40 ns.
- Receiver: Total gain range 100 dB, adjustable gain range 0 to 80 dB.
- PT1000 Channels: Resistance ratio measurement, resolution 0.001 °C.
- NDIR Channels: Supports Dynament Premier series, RS232 interface.
- Analog Input: 11-bit resolution, current mode range 0 to 22 mA, voltage mode range 0 to 6.0 V.
- Connectors: Various M8 and BNC sockets for power, diagnostics, and sensor connections.
Catalog excerpts

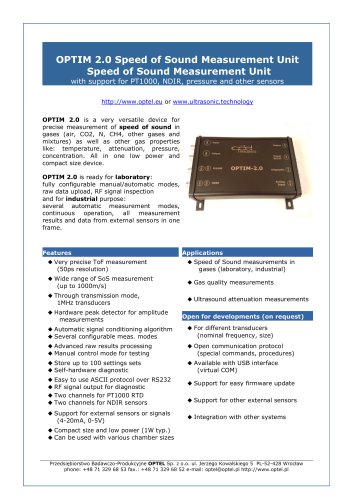

OPTIM 2.0 is a very versatile device for precise measurement of speed of sound in gases (air, C02, N, CH4, other gases and mixtures) as well as other gas properties like: temperature, attenuation, pressure, concentration. All in one low power and compact size device. OPTIM 2.0 is ready for laboratory: fully configurable manual/automatic modes, raw data upload, RF signal inspection several automatic measurement modes, continuous operation, all measurement results and data from external sensors in one pplications ♦ Very precise ToF measurement (50ps resolution) ♦ Speed of Sound measurements in gases (laboratory, industrial) ♦ Ultrasound attenuation measurements ♦ Wide range of SoS measurement (up to 1000m/s) ♦ Through transmission mode, 1MHz transducers ♦ Hardware peak detector for amplitude ♦ Automatic signal conditioning algorithm ♦ Several configurable meas. modes ♦ Advanced raw results processing ♦ Manual control mode for testing ♦ Store up to 100 settings sets ♦ Easy to use ASCII protocol over RS232 ♦ RF signal output for diagnostic ♦ Two channels for NDIR sensors ♦ Support for external sensors or signals ♦ Compact size and low power (1W typ.) ♦ Can be used with various chamber sizes (nominal frequency, size) ♦ Open communication protocol (special commands, procedures) ♦ Available with USB interface ♦ Support for easy firmware update ♦ Support for other external sensors ♦ Integration with other systems Przedsi^biorstwo Badawczo-Produkcyjne OPTEL Sp. z o.o. ul. Jerzego Kowalskiego 5 PL-52-428 Wroclaw phone: +48 71 329 68 53 fax.: +48 71 329 68 52 e-mail: [email protected]
Open the catalog to page 1
Technical data General Dimensions (WxHxD) Weight Mounting option Power supply Current consumption Speed of Sound measurement Measurement principle SoS range ToF modes of operation ToF resolution Distance range Pulser Type Pulse amplitude Fall time PRF Receiver Total gain range Adjustable gain range Center frequency Bandwidth (-3dB) PT1000 channels (Ch1, Ch2) Measurement principle Connection Processing Resolution NDIR channels (Ch1, Ch2) Supported type Interface Power supply Analog input Resolution Current mode Sense resistance Range Voltage mode Input resistance Range Processing Connectors Power...
Open the catalog to page 2All PBP Optel sp. z o.o. catalogs and technical brochures

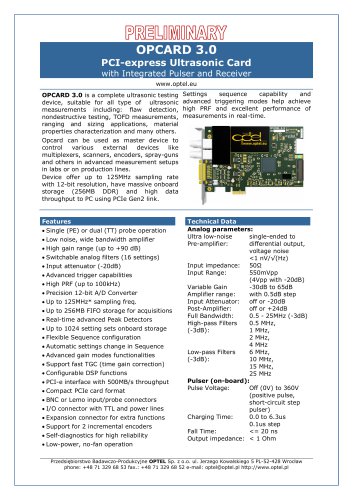

OPCARD 3.02 Pages

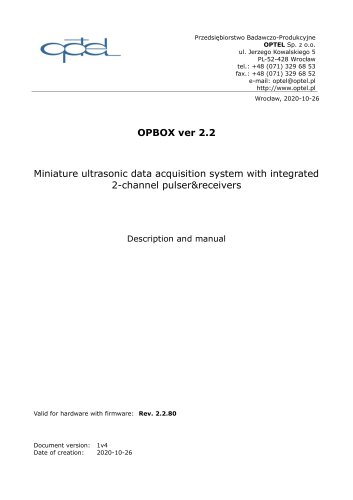

OPBOX ver 2.217 Pages

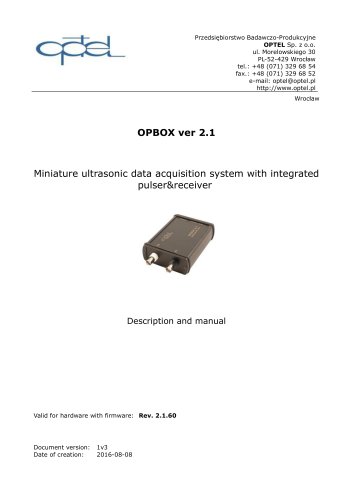

OPBOX ver 2.117 Pages
