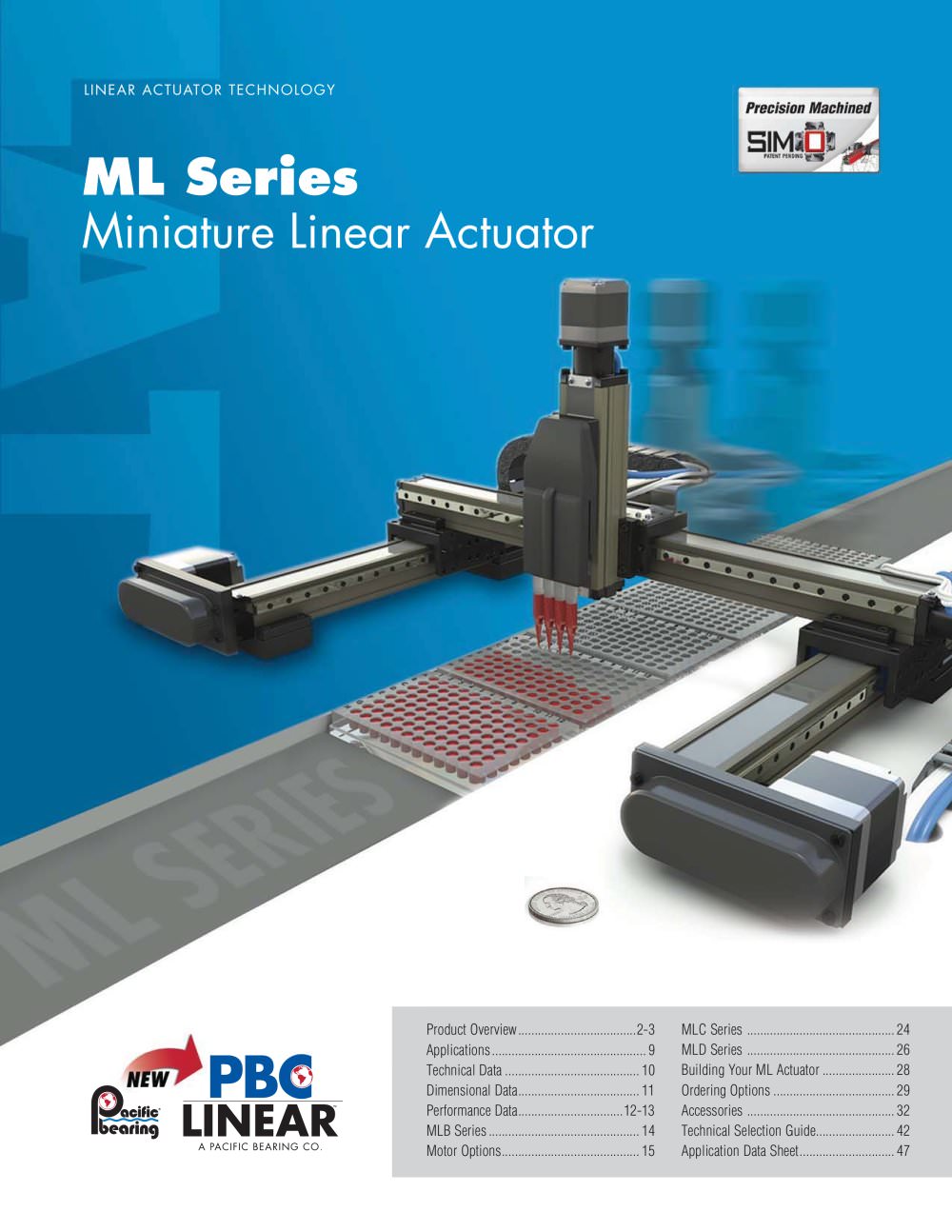

Miniature Linear Actuator Catalog
1 / 48 PagesView full catalog
Miniature Linear Actuator Catalog
Product catalog summary
Product Overview
The ML Series Miniature Linear Actuator is designed for compact applications with a small profile of 28 x 32mm. It uses the SIMO™ process for precision and lightweight design. The actuator is lead screw driven, offering high accuracy and repeatability, with travel lengths up to 650mm. It supports multi-axis configurations and includes dovetail clamps for secure mounting.
The ML Series Miniature Linear Actuator is designed for compact applications with a small profile of 28 x 32mm. It uses the SIMO™ process for precision and lightweight design. The actuator is lead screw driven, offering high accuracy and repeatability, with travel lengths up to 650mm. It supports multi-axis configurations and includes dovetail clamps for secure mounting.
Applications
The ML Series is suitable for medical, biotech, instrument automation, packaging, and semiconductor industries, ideal for automation applications where space is limited.
The ML Series is suitable for medical, biotech, instrument automation, packaging, and semiconductor industries, ideal for automation applications where space is limited.
Technical Data
The actuator supports a maximum load of 267 N and a maximum speed of 1.9 m/s. It features a large diameter lead screw for increased column strength and reduced whip, with options for anti-backlash nuts for high bi-directional accuracy.
The actuator supports a maximum load of 267 N and a maximum speed of 1.9 m/s. It features a large diameter lead screw for increased column strength and reduced whip, with options for anti-backlash nuts for high bi-directional accuracy.
Dimensional Data
The actuator's body length is calculated based on stroke length, carriage length, and overtravel requirements, with detailed specifications for mounting and configuration options.
The actuator's body length is calculated based on stroke length, carriage length, and overtravel requirements, with detailed specifications for mounting and configuration options.
Performance Data
Performance characteristics include maximum thrust loads and travel speeds, with considerations for screw efficiency and torque requirements. The actuator operates within specific PV limits to ensure long life and prevent material deformation.
Performance characteristics include maximum thrust loads and travel speeds, with considerations for screw efficiency and torque requirements. The actuator operates within specific PV limits to ensure long life and prevent material deformation.
MLB Series
This series is motor-driven with pre-mounted stepper or servo motors, offering various motor options and configurations for different application needs.
This series is motor-driven with pre-mounted stepper or servo motors, offering various motor options and configurations for different application needs.
Motor Options
Stepper motors are available in standard NEMA sizes, and servo motors in 40 & 60 mm sizes, allowing for custom motor integration.
Stepper motors are available in standard NEMA sizes, and servo motors in 40 & 60 mm sizes, allowing for custom motor integration.
MLC and MLD Series
The MLC Series is designed for motor mount applications, while the MLD Series is hand-driven, offering precision control with adjustable knobs and brakes.
The MLC Series is designed for motor mount applications, while the MLD Series is hand-driven, offering precision control with adjustable knobs and brakes.
Building Your ML Actuator
Users can customize actuators by selecting from various components and configurations, including motor mounts, lead screws, and guide supports.
Users can customize actuators by selecting from various components and configurations, including motor mounts, lead screws, and guide supports.
Ordering Options
The document provides a detailed guide for ordering, including body length calculations and configuration selections.
The document provides a detailed guide for ordering, including body length calculations and configuration selections.
Accessories
Available accessories include cable carriers, sensor brackets, and carriage brackets to enhance functionality and integration.
Available accessories include cable carriers, sensor brackets, and carriage brackets to enhance functionality and integration.
Technical Selection Guide
A comprehensive guide assists in selecting the appropriate actuator configuration based on application requirements.
A comprehensive guide assists in selecting the appropriate actuator configuration based on application requirements.
Application Data Sheet
Provides a template for documenting specific application requirements and configurations.
Provides a template for documenting specific application requirements and configurations.
Servo Drives Overview
The document provides detailed specifications and compatibility information for various servo drives, focusing on position, speed, and torque control, with real-time auto-tuning for improved positioning accuracy.
The document provides detailed specifications and compatibility information for various servo drives, focusing on position, speed, and torque control, with real-time auto-tuning for improved positioning accuracy.
Servo Drives Specifications
Lists several servo drive models, specifying voltage, motor capacity, output type, and compatible motors.
Lists several servo drive models, specifying voltage, motor capacity, output type, and compatible motors.
Motor to Drive Cables
Various power and brake cables are available in lengths ranging from 3m to 20m.
Various power and brake cables are available in lengths ranging from 3m to 20m.
Encoder Cables
Incremental and absolute encoder cables are offered in lengths from 3m to 20m.
Incremental and absolute encoder cables are offered in lengths from 3m to 20m.
Motion Control Unit Cables
Cables for motion control units are available for 1-axis and 2-axis configurations.
Cables for motion control units are available for 1-axis and 2-axis configurations.
Terminal Block and Cables
Details various terminal blocks and cables for position control units.
Details various terminal blocks and cables for position control units.
Linear Actuator Technology
Describes ML Series actuators, including options for motor mounts and hand-driven shafts, with a guide for ordering and configuring.
Describes ML Series actuators, including options for motor mounts and hand-driven shafts, with a guide for ordering and configuring.
Technical Data and Specifications
Provides detailed technical data for linear guide supports, including load capacities and moments.
Provides detailed technical data for linear guide supports, including load capacities and moments.
Ordering and Accessories
Instructions for ordering ML accessories, such as motor couplings, are provided.
Instructions for ordering ML accessories, such as motor couplings, are provided.
Chain Weight Specifications
Various chain weights are provided, crucial for selecting the appropriate chain for specific applications.
Various chain weights are provided, crucial for selecting the appropriate chain for specific applications.
Bracket Specifications
Details fixed and moving end brackets with dimensions in inches and millimeters.
Details fixed and moving end brackets with dimensions in inches and millimeters.
Contact Information
Contact details for PBC Linear's headquarters in the USA and its European branch in Germany are provided.
Contact details for PBC Linear's headquarters in the USA and its European branch in Germany are provided.
Legal Disclaimer
Includes a disclaimer stating that specifications are subject to change without notice and emphasizes the user's responsibility to ensure product suitability.
Includes a disclaimer stating that specifications are subject to change without notice and emphasizes the user's responsibility to ensure product suitability.
