solid carbide twist drill bit

solid carbide twist drill bit

Product catalog summary

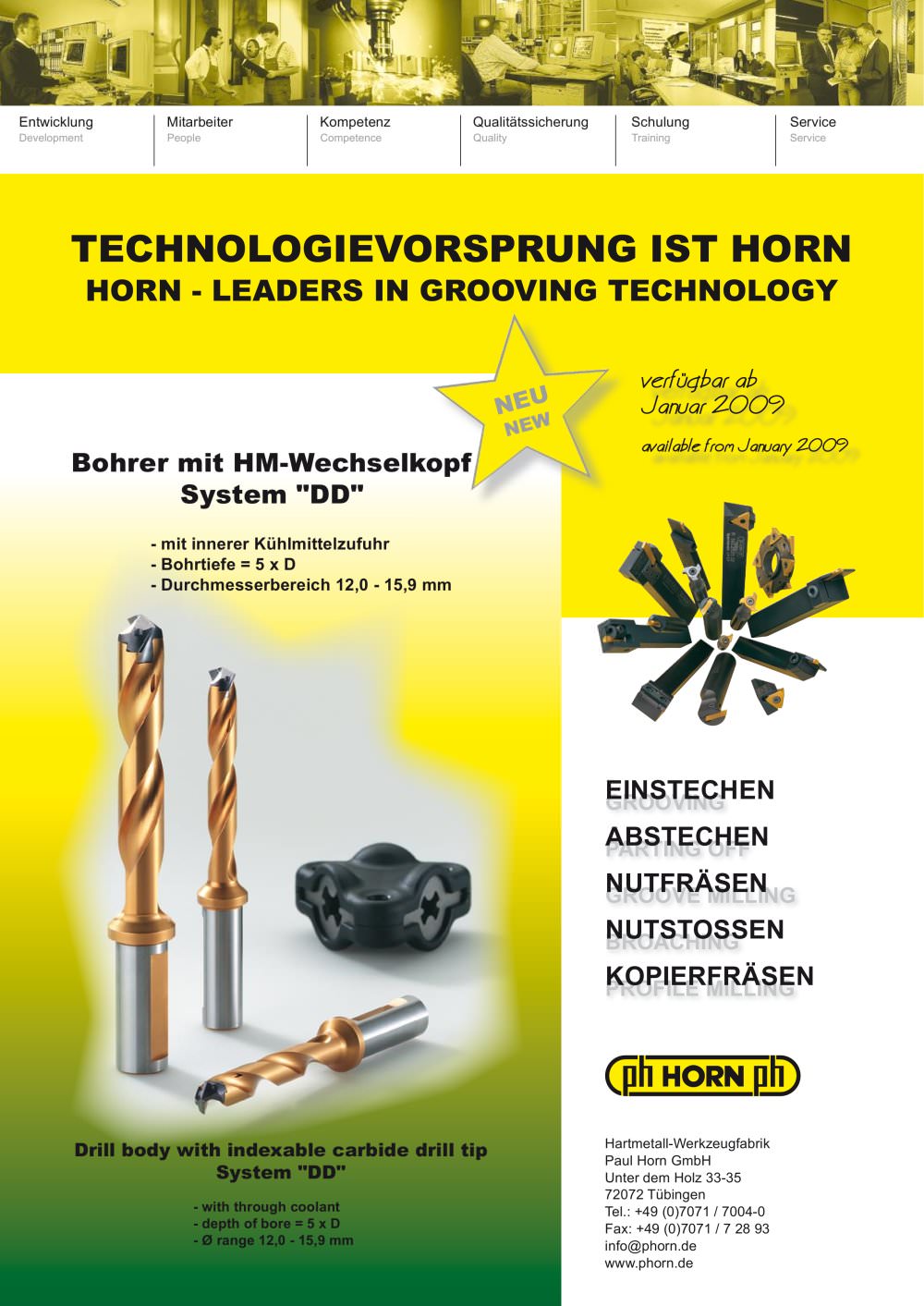

Overview: This document is a technical specification from Hartmetall-Werkzeugfabrik Paul Horn GmbH, detailing their grooving technology and drill systems. It includes product specifications, ordering information, and contact details.

Product Specifications:

Drill System "DD": Features a drill body with an indexable carbide drill tip, internal coolant supply, and a bore depth of 5 times the diameter. The diameter range is 12.0 - 15.9 mm.
Dimensions: Provided in millimeters, with further sizes available upon request.
Ordering Information: The wrench DD1220 is not included with the drill body and must be ordered separately.

Technical Details:

Drill Body Types: Various part numbers are listed for different diameter ranges, each with specific dimensions and compatible wrench types.
Indexable Drill Tip Types: Corresponding part numbers for use with the drill body, covering cutting edge diameters from 12.0 to 15.9 mm.

Contact Information:

Germany: Paul Horn GmbH, Unter dem Holz 33-35, 72072 Tübingen. Tel: +49 (0)7071 / 7004-0, Fax: +49 (0)7071 / 7 28 93, Email: [email protected]
UK: Horn UK, 32 New Street, Ringwood, Hampshire, BH24 3AD. Tel: +44 (0) 1 425 481 800, Fax: +44 (0) 1 425 481 888, Email: [email protected]

Catalog excerpts

DRILL BODY Type > Cutting edge for use with Indexable drill tip Type Bestellnummer Dsdd > 1 l > 1 l > 2 l > 3 Spannschlssel > Part number Wrench DD120.L.1648.050 12,0 - 12,41611,51406948DD1220 DD125.M.1648.050 12,5 - 12,91612,01406948DD1220 DD130.N.1648.050 13,0 - 13,91612,51477448DD1220 DD140.O.1648.050 14,0 - 14,91613,51538048DD1220 DD150.P.1648.050 15,0 - 15,91614,51598548DD1220 > Weitere Abmessungen auf Anfrage Abmessungen in mm Further sizes upon request Dimensions in mm Der Spannschlssel DD1220 geh켶rt nicht zum Lieferumfang des Bohrergrundkrpers.Bitte separat bestellen! The wrench DD1220...

Open the catalog to page 2

INDEXABLE DRILL TIP Type > for use with Drill body Type Bestellnummer Ds춎BohrergrundkѶrper Spannschlssel > Part number Drill body Wrench TA45 DD2.1200.L.A.3 12,0140DD120.L.1648.050DD1220 > Weitere Abmessungen auf Anfrage Abmessungen in mm Further sizes upon request Dimensions in mm

Open the catalog to page 3

INDEXABLE DRILL TIP Type > for use with Drill body Type Bestellnummer Ds춎BohrergrundkѶrper Spannschlssel > Part number Drill body Wrench TA45 DD2.1400.O.A.3 14,0140DD140.O.1648.050DD1220 > Weitere Abmessungen auf Anfrage Abmessungen in mm Further sizes upon request Dimensions in mm HARTMETALL-WERKZEUGFABRIK PAUL HORN GMBH - UNTER DEM HOLZ 33-35 - 72072 TBINGENTEL. +49 (0)7071 / 7004-0 - FAX +49 (0)7071 / 7 28 93 - [email protected] - www.phorn.de INFO13.08DE0808 D

Open the catalog to page 4
