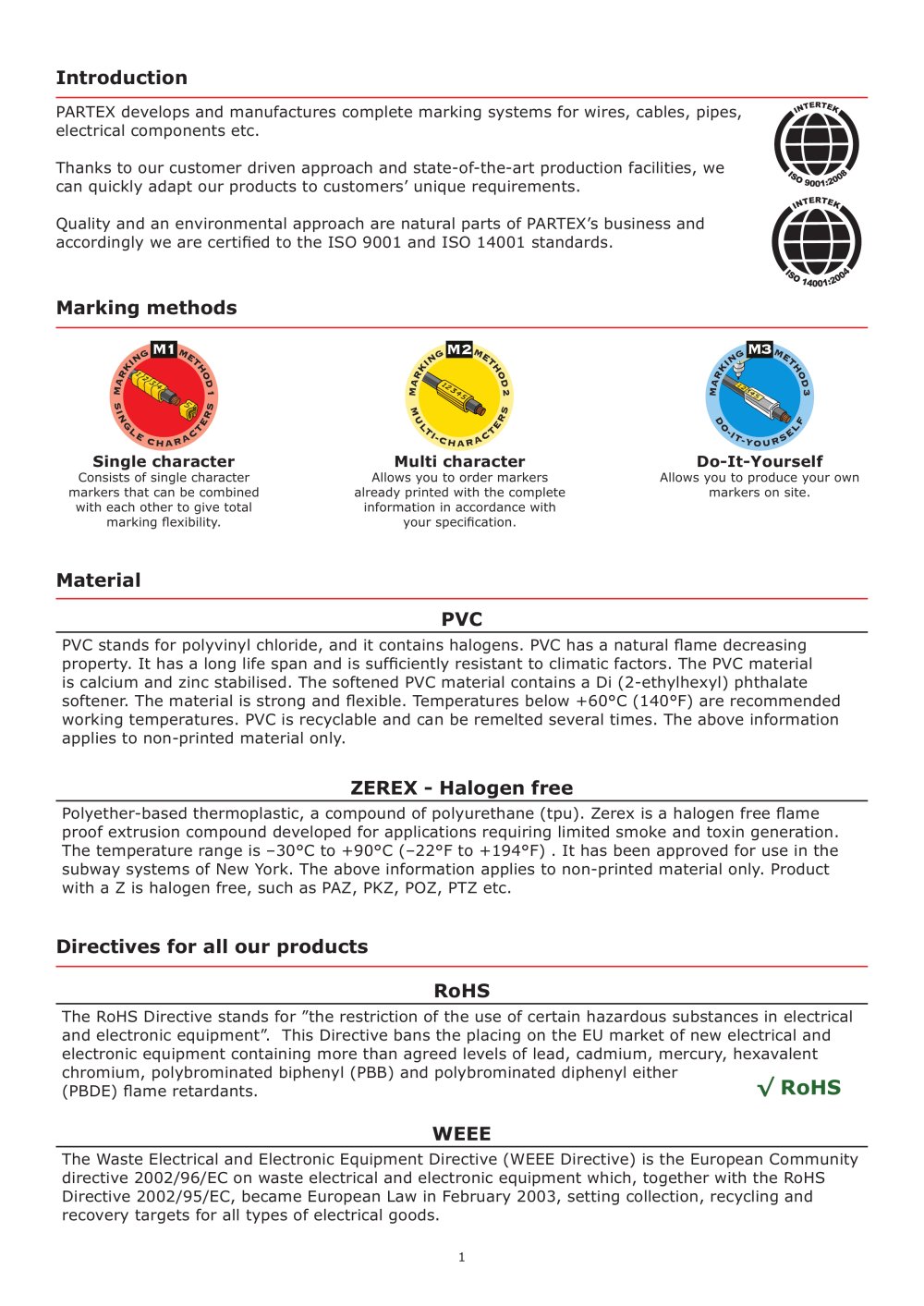

Introduction PARTEX develops and manufactures complete marking systems for wires, cables, pipes, electrical components etc. Thanks to our customer driven approach and state-of-the-art production facilities, we can quickly adapt our products to customers’ unique requirements. Quality and an environmental approach are natural parts of PARTEX’s business and accordingly we are certified to the ISO 9001 and ISO 14001 standards. 1 Marking methods Single character Consists of single character markers that can be combined with each other to give total marking flexibility. Multi character Allows you to order markers already printed with the complete information in accordance with your specification. Do-It-Yourself Allows you to produce your own markers on site. Directives for all our products RoHS The RoHS Directive stands for ”the restriction of the use of certain hazardous substances in electrical and electronic equipment”. This Directive bans the placing on the EU market of new electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl either (PBDE) flame retardants. WEEE The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European Community directive 2002/96/EC on waste electrical and electronic equipment which, together with the RoHS Directive 2002/95/EC, became European Law in February 2003, setting collection, recycling and recovery targets for all types of electrical goods. ã RoHS Material PVC PVC stands for polyvinyl chloride, and it contains halogens. PVC has a natural flame decreasing property. It has a long life span and is sufficiently resistant to climatic factors. The PVC material is calcium and zinc stabilised. The softened PVC material contains a Di (2-ethylhexyl) phthalate softener. The material is strong and flexible. Temperatures below +60°C (140°F) are recommended working temperatures. PVC is recyclable and can be remelted several times. The above information applies to non-printed material only. ZEREX - Halogen free Polyether-based thermoplastic, a compound of polyurethane (tpu). Zerex is a halogen free flame proof extrusion compound developed for applications requiring limited smoke and toxin generation. The temperature range is –30°C to +90°C (–22°F to +194°F) . It has been approved for use in the subway systems of New York. The above information applies to non-printed material only. Product with a Z is halogen free, such as PAZ, PKZ, POZ, PTZ etc.

Size Selection Guide 2...

3 PA/PY closed slide on combination marker • Permanent grip and adjustable sleeve, spring-action bellows. • Chevron cut for twist protection. • PA is available in Halogen free material (ZEREX). • Covers wire diameters 1.0 - 16.0 mm (AWG 24–0). • A-Z, 0-9 in yellow or white with black print as standard. Special colours and prints on request. • 0-9 in international colour code. Type Diameter mm Area mm2 AWG Length mm No. of characters Sleeve height (mm) Sleeve width (mm) Text height (mm) STRIP PACK Cut/loose markers SINGLE BAG Marker strips REEL Semi cut markers COMPACTADISC Semi cut markers...

PC open clip-on combination marker • For changes or already connected wires. Simply clip-on for secure, highly legible identification. • A-Z, 0-9 in yellow or white with black print as standard. Special colours and prints on request. • 0-9 in international colour code. 4 Type Diameter mm Area mm2 AWG Length mm No. of characters Sleeve height (mm) Sleeve width (mm) Text height (mm) STRIP PACK Cut/loose markers or strips PC-10 2.4 - 3.0 ~0.4 - 1.5 ~22 - 16 3 1 3.6 3.7 2.6 5 x 200 pcs PC-20 3.0 - 4.0 ~1.5 - 3.0 ~16 - 12 3 1 4.2 4.5 2.6 5 x 200 pcs PC-30 4.0 - 5.0 ~3.0 - 4.0 ~12 - 11 3 1 9.5...

5 SRP/SRC- Storage box 1 231 2 3 SRP • Robust steel plate storage box for PARTEX compactadiscs. • Detachable upper tray for cable accessories. • An excellent accessory which simplifies marking work. • A perfect accessory for the MK9 ProMark. SRC • A cardboard storage box for PARTEX compactadiscs. • An excellent accessory which simplifies marking work. PM transparent cable marker carrier • Transparent holder for marker tags PF, PFC and PP-profile. PKS stainless steel cable markers • Stainless steel AISI 316 markers and cable ties for aggressive environments. • Available both as single...

6 PT/PT+/PTZ+/PTM wire marker carrier • PT/PT+ transparent sleeve with pocket for marker tag PF, PFC and PP. • PTZ+ coloured sleeve with transparent pocket for marker tag PF, PFC and PP-profile. • PTM transparent sleeve with wings for marker tag PFC and PP-profile. Transparent sleeve Sleeve lengths Packaging: Type Pocket width (mm) Diameter mm Area mm2 AWG PT (mm) PT+ (mm) Loose, cut sleeves in bag PT/PT+02 4.2 1.3 - 3.0 ~0.25 - 1.5 ~22 - 16 15/21/30 12/15/18/21/30 200 pcs PT/PT+10 4.2 2.5 - 5.0 ~1.5 - 4.0 ~16 - 11 15/21/30 12/15/18/21/30 200 pcs PT/PT+20 4.2 4.0 - 10.0 ~2.5 - 16.0 ~13 - 4...

7 PS cabinet and component marking1 2 3 • PS component marking is a universal system for marking of control panels and components. • PS is available in pre-printed and as a D-I-Y system. • 1 module = 17.5 mm Description Length Colour: Qty/pack PS-20 * Modules: 1/3 , 1/2 , 1 , 1 1/2 , 2 , 3 White or Transparent 20/50 pcs1 PS-20 profile. Neutral, no text Length: 1000 mm White or Transparent 20 pcs Type Description White Black Length mm Width mm Qty pack PS-20BP Base profile mounting rail PS-20BPV PS-20BPB 1000 11.6 10 pcs * = Desired character, ( A, B, C, 1, 2, 3 etc.) * = Strips of 12-number...

10 MK500 – Plotter • Provides complete multi character marking for cables, wires, terminal blocks and components. • Prints on PA+, PC, PK, POH, PFC, TX, and PS products. Print: Speed: PC connection: Profile types: Plotter pens with etching ink 5 to 40 mm/s USB or RS232 Pre-cut profiles THE BASIC MK500 KIT INCLUDES: Plotter MK500 VarioSign Printer Cable MK3 – X-Card thermal transfer printer • Complete marking system for cable, wires and components. • Thermal transfer printing onto PARTEX PFC cards. • Windows based printer controlled by PARTEX software WinSign. Print: Speed: (Monochrome):...
