Parker Quick Coupling Division
SENSOCONTROL® DIAGNOSTICS

SENSOCONTROL® DIAGNOSTICS

Product catalog summary

Overview: The document is a technical catalogue for SensoControl® diagnostic test equipment for hydraulics by Parker Hannifin GmbH. It includes measuring devices, sensors, and accessories for hydraulic diagnostics, compliant with EU standards DIN/EN 61000-6-2 and DIN/EN 61000-6-3.

Specifications: The catalogue details products like ServiceJunior, Parker Serviceman Plus, Parker Service Master COMPACT, and CONNECT, designed for measuring pressure, temperature, and flow. Features include data logging, sensor recognition, and robust industrial design.

Measuring Devices:

ServiceJunior: Digital pressure measurement up to 1000 bar, 0.1% accuracy, optional data logging, metal housing, USB interface.
Parker Serviceman Plus: Analogue and CAN versions, automatic sensor recognition, USB data storage.
Parker Service Master COMPACT and CONNECT: Modular systems with multiple sensor connections, data recording, and analysis capabilities.

Sensors: Includes sensors for electrical signals, pressure, temperature, and flow, available in analogue and CAN versions for flexibility.

Accessories: Connection cables, diagnostic adapters, and measuring hoses complement the devices and sensors for comprehensive diagnostics.

Recommendations: Users should analyze application requirements and consult the catalogue to ensure equipment meets performance and safety standards. User responsibility is emphasized in product selection and application.

Technical Specifications:

Measuring Accuracy: Less than ± 0.2% FS ± 1 digit.
Connection: 5-pin, push-pull, M12x1 plug.
Sample Rate: 1 ms for up to 4 sensors, 2 ms for 5 or 6 sensors.
Interfaces: USB device and host ports, USB 2.0 standard.
Memory: Internal memory for 15,000 data records, 4 GB USB stick included.
Display: FSTN-LCD with LED backlight, 62mm x 62mm visible area, 130 x 130 pixels resolution.
Power Supply: External micro USB socket, 5V DC, rechargeable lithium-ion battery options.
Housing: PC/ABS/POM with TPU protective cover, dimensions 96 x 172 x 54 mm, weight approx. 530 g.
Environmental Conditions: Operating temperature 0 to +50°C, storage temperature -25 to +60°C, humidity less than 80%, protection class IP54 and IP67.

Features:

Automatic sensor recognition for easy setup.
Robust design with oil-resistant rubber protection.
USB interface for online measurement and data analysis via SensoWin software.
Touch display with plain text navigation, suitable for glove operation.
Capability to measure and display up to 16 channels simultaneously.

Applications: Suitable for mobile equipment, industrial hydraulic systems, fluid or gas maintenance, system performance optimization, and system validation. Used in maintenance, agriculture, construction, transportation, defense, and industrial sectors.

Product Variants:

Parker Serviceman Plus: Various kits with different sensor configurations, including analogue and CAN options.
Parker Service Master COMPACT: Three versions for different sensor types, 4.3” touch screen, Parker sensor compatibility.
Parker Service Master CONNECT: For complex tasks with up to 100 channels, 7” touch display, modular hardware.

Conclusion: Parker's devices provide comprehensive solutions for real-time monitoring and diagnostics in challenging environments, enhancing efficiency and productivity across various industrial applications.

Technical Specifications:

Inputs/Outputs: Supports 2 CAN bus networks with 24 channels each, adjustable baud rate, 24 VDC power supply.
Sample Rate: 1 ms for 1,000 measured values per second.
Display: 7-inch touch display, 800 x 480 pixels resolution, usable with gloves.
Interfaces: USB, LAN, and SIM card slots for data transmission and storage.
Environmental Conditions: Operates between -10 to +50°C, IP65 protection class.

Input Modules:

SCMI-600-01 Parker Analogue: Supports up to 6 analogue measurement channels with sensor recognition.
SCMI-600-02 CAN: Connects to CAN systems with support for multiple protocols like CANopen and SAE-J1939.
SCMI-600-03 Parker Analogue Iso: Similar to SCMI-600-01 but galvanically isolated.

SensoWin® PC Software:

Compatible with Windows 10/11, features zoom, linking of measurement curves, and remote control.
Facilitates documentation and analysis of hydraulic systems with functions for curve representation and differential value generation.

ServiceJunior Test Kit:

Designed for easy pressure testing and adjustment of meters, sensors, and switches.
Available in pneumatic and hydraulic versions, pressure range up to 700 bar.
Includes a hand pump and a reference device for accurate pressure measurement.

Sensors:

Various sensors for pressure, temperature, and speed measurement, featuring high burst pressure resistance and CAN bus connectivity.

Turbine Flow Meters:

Models: SCFT and SCFTT.
Features: Low-loss volume flow measurement, integrated temperature sensor, reverse operation, CAN bus connection.
Specifications: Response time ≤ 50 ms, multiple measuring ranges, small flow resistance, capacity up to 750 l/min, pressure up to 400 bar.

Hydraulic Testers:

Models: SCLV, available in analogue and CAN designs.
Features: Enables p-Q measurement, pressure loading valve, overload protection.

Sensor Compatibility:

Compatibility with various ServiceMaster and Serviceman models.
Availability of sensors is indicated with compatibility notes and firmware requirements.

SCMA Current/Voltage/Frequency Meter:

Model: SCMA-VADC-710.
Features: Measures current, voltage, and frequency with galvanic isolation and CAN/analogue output.
Applications: Force-path diagram, torque-volume flow characteristic, motor/pump switching states.
Technical Data: Voltage up to ±48 V, current up to ±4 A, frequency up to 5 kHz, external sensor power supply up to 24 V.

Pressure/Temperature/RPM Measurement:

Types: SCP pressure sensors, SCPT pressure/temperature sensors, SCT temperature sensors, SCRPM rev. counter.
Features: Robust stainless steel design, fast response times, high accuracy.
Applications: Suitable for hydraulic systems, cooling water, compressed air systems.

SCMA-600 CAN-Converter Box:

Features: Connects additional analogue sensors to SMC-600 devices with high accuracy and galvanic isolation.
Applications: Torque-volume flow characteristic, motor/pump switching states.
Technical Data: Voltage input up to ±30V, current input up to ±20 mA, digital input @3.3 V.

Pressure Measurement SCP Analogue:

Features: Small size, robust design, fast response times, high accuracy.
Pressure Ranges: From -1 to 1000 bar, suitable for various pressure applications.

Pressure Measurement SCP CAN:

Features: Combines analogue sensor advantages with CAN bus technology, suitable for long cables.
Pressure Ranges: From -1 to 1000 bar, with plug & play functionality.

Pressure/Temperature Measurement SCPT Analogue:

Features: Robust design, fast response times, high accuracy.
Pressure Ranges: From -1 to 1000 bar.
Temperature Measurement: From -25 to +105 °C.

Pressure Measurement:

Measuring Ranges: Sensors available for different pressure ranges, from -1 to 1000 bar, suitable for pneumatic applications and high-pressure peaks.
Technical Specifications: Includes overload and burst pressures, temperature measurement ranges, accuracy, response time, connection types. Stainless steel with FKM seals, protection class IP54 or IP67.
Applications: Suitable for capturing pressure peaks, ensuring fast and safe connections to hydraulic systems.

Temperature Measurement:

Analogue Sensors: High-pressure resistant, capable of measuring temperatures up to 1000°C. Available as screw-in or rod sensors for direct measurement in pipes or hose lines.
CAN Sensors: Feature future-proof CAN bus technology, suitable for long cables, high accuracy, response time of 1 ms.
Technical Data: Includes measuring ranges, accuracy, response times, ambient conditions. Compatible with various adapters and connection cables.

Accessories and Calibration:

Various adapters and connection cables available for both analogue and CAN sensors.
Sensors can be ordered with calibration certificates as per ISO 9001 standards.

RPM Measurement:

Contactless speed measurement up to 10,000 RPM using optoelectronic principles.
Includes a 3 m fixed cable and reflective strips for precise detection.

RPM Measurement SCRPM Analogue: The Parker Service Master CONNECT SCM-600-xx with input module analogue SCMI-600-01 or SCMI-600-03 is used for RPM measurement. The SCRPM analogue device measures RPM using an optical method with a red LED, covering a range from 20 to 10,000 RPM with an accuracy of less than 0.5% FS and a resolution of ±5 RPM. It connects electrically to a hand-held measuring device via a fixed 3m cable. The device is made of ABS material, weighs 230g, and operates within an ambient temperature range of 0 to 70°C.

Turbine Flow Meter SCFT Analogue: The SCFT turbine flow meter measures flow with low resistance and can integrate pressure and temperature measurements. It operates by rotating a turbine wheel driven by oil flow, with frequencies processed digitally. The device compensates for disruptive flow effects and is suitable for reverse operation. It is available in six measuring ranges up to 750 l/min and features easy construction and small flow resistance. The device is equipped with an EMA-3 quick coupling for pressure measurement and can measure oil temperatures directly in the flow.

Turbine Flow Meter SCFTT CAN: This version of the turbine flow meter includes a temperature sensor and uses CAN bus technology. It shares similar features with the SCFT analogue version, including low flow resistance and built-in pressure and temperature measurement connections. It is suitable for long cables and reverse operation, with a sensor identification LED for easy identification.

Hydraulic Tester SCLV Analogue and CAN: The SCLV hydraulic tester measures pressure, temperature, and flow, simulating machine states using a load valve. It is available in two measuring ranges up to 750 l/min and includes built-in overload protection. The device is designed for safe handling in both flow directions and can be used on various hydraulic components. It features a pressure loading valve with integrated blow-out discs for safety, allowing for progressive pressure build-up to check flow across the working area. The device can be used with Parker Serviceman Plus or Service Master CONNECT SCM-600-xx for detailed analysis.

Hydraulic Tester Specifications: SCLV-PTQ hydraulic testers are available in two main flow ranges: 10-300 l/min with a maximum pressure of 420 bar, and 20-750 l/min with a maximum pressure of 480 bar. Both ranges offer models with CAN bus connections for enhanced data communication.

Blow-Out Discs: Designed for safety, blow-out discs are available for both flow ranges, ensuring pressure relief at specified limits.

Flow Meters: The SCFT turbine flow meter, with a flow range of 6-150 l/min and a maximum pressure of 400 bar, is available with or without CAN bus connectivity.

Connection Cables: Various lengths of analogue and CAN bus connection cables are available, including Y-junctions and T-junctions for network configurations. Terminating resistors are necessary for CAN networks.

Diagnostic Adapters: Adapters are available for different pressure ranges and connection types, ensuring compatibility with various diagnostic setups.

Measuring Hoses: SMA measuring hoses are designed to decouple sensors from vibrations, with a nominal pressure of 630 bar and a temperature range of -20 to 100°C.

Technical Data: Detailed specifications for each component, including pressure ratings, material composition, and operational temperature ranges, are provided to ensure proper selection and use.

Catalog excerpts

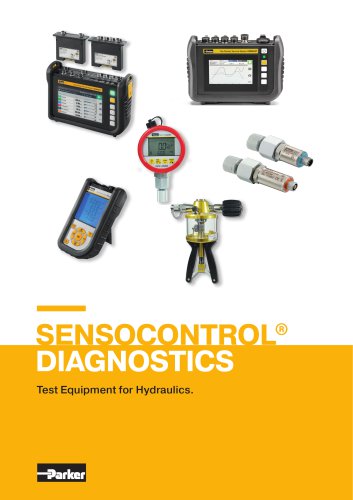

SENSOCONTROL DIAGNOSTICS Test Equipment for Hydraulics.

Open the catalog to page 1

Diagnostic Test Equipment for Hydraulics All the instruments meet the guidelines of the European Community (EU). It is confirmed that these products are approved acc. to following standards. DIN/EN 61000-6-2 DIN/EN 61000-6-3 Note! This document and other information from Parker Hannifin GmbH, provide product or system options for further investigation by users having technical expertise. Before you select or use any product or system it is important that you analyse all aspects of your application and review the information concerning the product or system in the current product catalogue. Due...

Open the catalog to page 2

Product overview

Open the catalog to page 3

Product overview Measuring device and test kit ServiceJunior Parker Serviceman Plus 9 Easy to use, robust and reliable 9 Easy to use, robust and reliable 9 Automatic sensor recognition 9 Data logger function optional 9 PC connection 9 SensoWin® 7.1 PC software The Parker Service Master COMPACT The Parker Service Master CONNECT 9 Easy to use, robust and reliable 9 Intuitive operation, robust and reliable 9 3 versions for up to 6 sensors with sensor recognition and 2 auxilliary sensors 9 Modular system with individually exchangeable measuring modules 9 Record, save and analyse measurement data...

Open the catalog to page 4

Product overview Sensors continued Temperature sensors SCT CAN Tachometer SCRPM analogue Turbine flow meter SCFT analogue High pressure-resistant temperature sensors with CAN bus Turbine flow meter analogue Turbine flow meter SCFTT CAN Hydraulic tester SCLV Turbine flow meter CAN with integrated temperature sensor Page 79 Hydraulic tester in analogue and CAN design Page 84 Accessories Connection cables SCK Cable for CAN bus and analogue sensors Adapter for various connection systems Measuring hoses for connecting sensors to measuring connections EMA3

Open the catalog to page 5

Measuring devices Measuring instruments Measuring devices Long-term stability Robust designs Easy handling Flexible on-site use Documentation of the measured values SensoControl® Hand-held measuring devices and accessories – the right measuring tool for every application. Whether you work in industry, mobile hydraulics, service or repair: Measuring and working with hydraulic variables is the basis for reliable troubleshooting. Systematic troubleshooting with modern tools is therefore essential for today's service technicians. Rapid processes - such as switching valves, cylinder strokes, pressure...

Open the catalog to page 6

Finding the best measuring device Finding the best measuring device * Additional auxiliary sensors with SCMA-VADC-710 O Option • Series

Open the catalog to page 7

Measuring devices ServiceJunior with data logger ■ Digital pressure measurement and back-lit display ■ Data logger function with integrated memory and real-time clock optional ■ Pressure peak capture at 10-ms sample rate ■ MIN/MAX value display ■ Extremely robust and reliable thanks to metal housing ■ Start/stop measurement means no more complex calculations and lengthy configurations ■ Optimal storage thanks to automatic data compression The ServiceJunior allows you to measure, display and store pressures in one device. Its extremely robust metal housing design and easy operation make it stand...

Open the catalog to page 8

1 ServiceJunior Functional description Function REC display, flashes when data recording is active** MIN/MAX or FullScale display, depending on the setting Battery level indicator Actual value display Bar graph with peak and hold functions Mini-USB port* ON/OFF key Switch device on/off. Press for 2 s: Switch on the backlight for 20 s. Select additional display value: Decrement MIN, MAX or FS/time*. Press for 2 s: Set the time (CSV formatting)*. Zero point adjustment/increment time*. Press for 2 s: Open the menu. Delete MIN and MAX values from the memory. Confirm menu functions. Press for 2 s:...

Open the catalog to page 9

Measuring devices Pressure measurement ServiceJunior with adapter 1/4 "BSPP female - M16x2 female SCA-1/4-EMA-3 Adapter M16x2 male - M16x2 male SCA-EMA-3/3

Open the catalog to page 10

1 ServiceJunior Dimensional drawings 45 Measuring devices ServiceJunior SCJN-xxx-xx ServiceJunior SCJN-xxx-xx-4MP (USA only) ServiceJunior SCJN-xxx-xx-PD

Open the catalog to page 11

Technical data Measuring devices Outlet Connection Display indication Seal Media-contacting parts Power supply Data logger (optional) Ambient conditions Load change Die-cast zinc with rubber protective cover TPE Stainless steel 1/4” BSPP (ISO 228-1), Adapter M16x2 SCA-1/4-EMA-3 in scope of delivery 10-ms sample rate Accuracy LC text display 4.5 digits Stainless steel, NBR 2 x 1.5 V batteries (AA) Representation MIN/MAX/FS Battery level indicator Auto Power Off/On Zero (zero point adjustment) Reset (delete MIN/MAX) Mini-USB port / with protective cap Real time clock Storage rate from 100 ms. Up...

Open the catalog to page 12

Order codes and accessories ServiceJunior with ISO 9001 calibration certificate Pressure range without data logger with data logger Measuring devices

Open the catalog to page 13

Measuring devices 2 Parker Serviceman PlusParker Serviceman Plus Easy handling Robust design with oil-resistant rubber protection Plug & Play functionality Large backlit display Direct storage on nano USB stick PC connection Including SensoWin® PC software Analogue version Of the Parker Serviceman Plus is a mobile, extremely robust and easy-to-use measuring instrument for many measuring tasks in mobile hydraulics or in stationary hydraulic systems. With the automatic sensor recognition, you can simply plug in pressure, temperature, flow or speed sensors and start measuring immediately. There...

Open the catalog to page 14

2 Parker Serviceman Plus Sensor connections USB connections for external hard drive, charging function and data transfer to PC Illuminated display Keyboard ■ Zero-point adjustment Back Measuring devices Confirm selection ■ Rearrange channels in the display ■ Insert calculation channel ■ Toggle display: MIN and MAX values, sensor end value or temperature ■ Basic device settings USA suitcase (possibly different content) 15

Open the catalog to page 15
