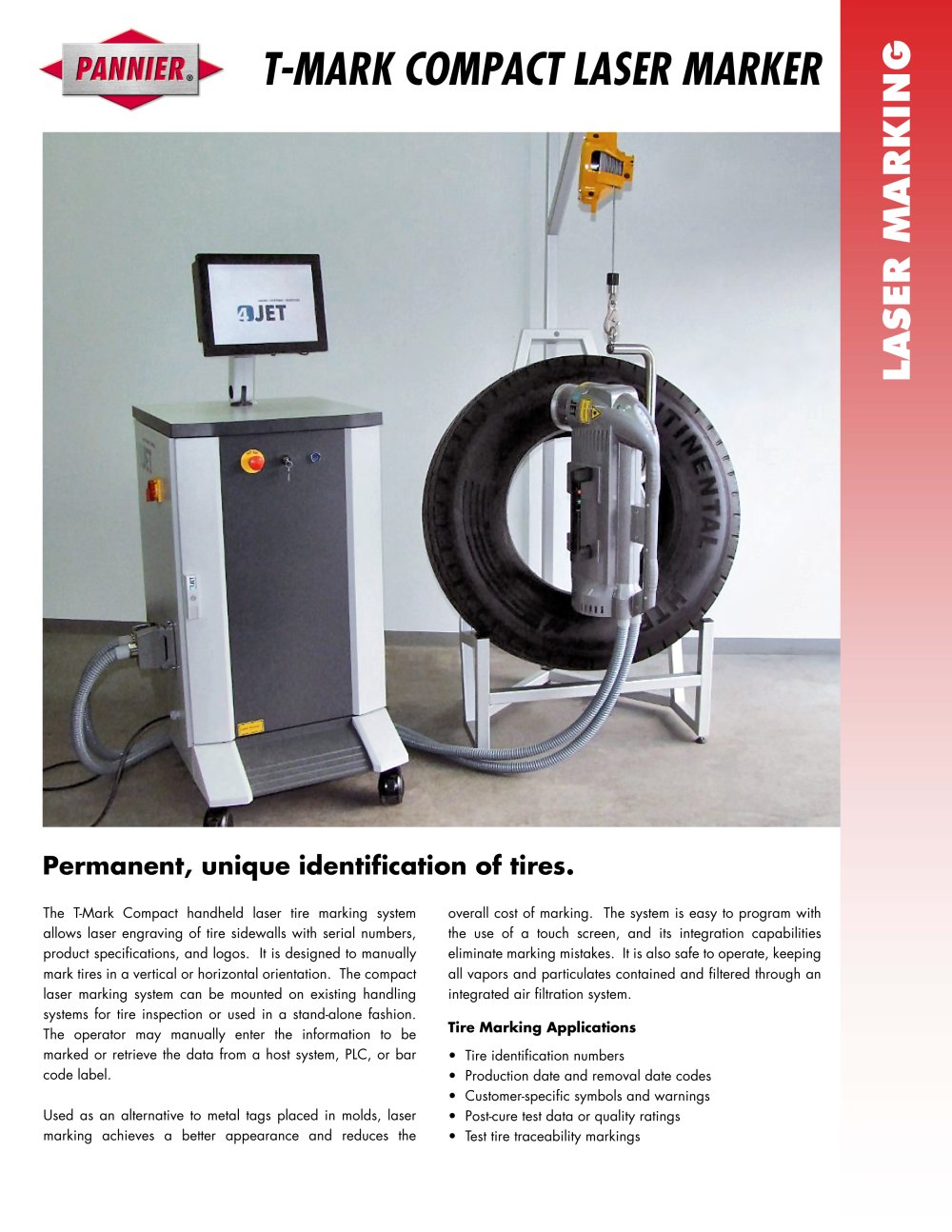

Overview: The T-Mark Compact Laser Marker is a handheld system designed for permanent and unique identification of tire sidewalls. It engraves serial numbers, product specifications, and logos, offering an alternative to traditional metal tags.

Specifications: The system uses a 30 Watt CO2 Laser with a Class I safety rating. It operates on 110V/60 Hz or 230V electric supply and interfaces via Ethernet or Serial (RS-232). The marking head weighs 40 lbs and features a marking window of approximately 4” x 4”.

Applications: The laser marker is used for tire identification numbers, production and removal date codes, customer-specific symbols, post-cure test data, and test tire traceability markings.

Benefits: Laser marking provides better traceability, durability, and cost-effectiveness compared to bar code labels and RFID transponders. It ensures compliance with DOT code marking requirements and reduces the need for mold inserts.

Safety and Design: The system offers safe, touchless marking by vaporizing rubber with minimal heat input, ensuring no impact on tire quality. It features an integrated air filtration system to manage vapors and particulates. The compact design allows easy integration into existing facilities.
