Overview
The ST spray marker is an advanced marking product designed for industrial coding applications. It offers high reliability and versatility, addressing common issues like clogging in spray systems.

Reliability
The ST spray marker ensures precise marking of dots or lines using pneumatic or magnetic valves. Its unique spray head design prevents ink from drying in the nozzle, eliminating clogging issues. The ink tanks maintain consistent ink flow, with an optional agitator to prevent pigment settling.

Versatility
The ST can apply various fluids with different viscosities, including inks, paints, lacquers, resins, and more. It is suitable for marking on surfaces that are oily, greasy, damp, absorbent, hot, or dirty. The compact spray head can be integrated into any production process, and adjustments for dot size and color saturation are straightforward.

Specifications
- Head Size: 0.86” W x 1.96” H x 5.12” L
- Head Weight: Starting at 9.9 ounces
- Electric Supply: 24V DC
- Air Supply: 75 to 80 PSI
- Dot Size: 0.11” (3mm) to 1” (25.4mm) diameter
- Maximum Speed: 750 fpm
- Material Tank: 2.5 oz, 1.5 liter, or 4.5 liter
- Actuation: Manual Light or Optical Sensor, PLC Shaft Encoder

Models
Model ST SR-1: Features a needle stroke with snap-in microadjustment and a PTFE notch seal.
Model ST SRM-1: Uses a diaphragm system for sealing, ideal for humidity-sensitive and abrasive materials.

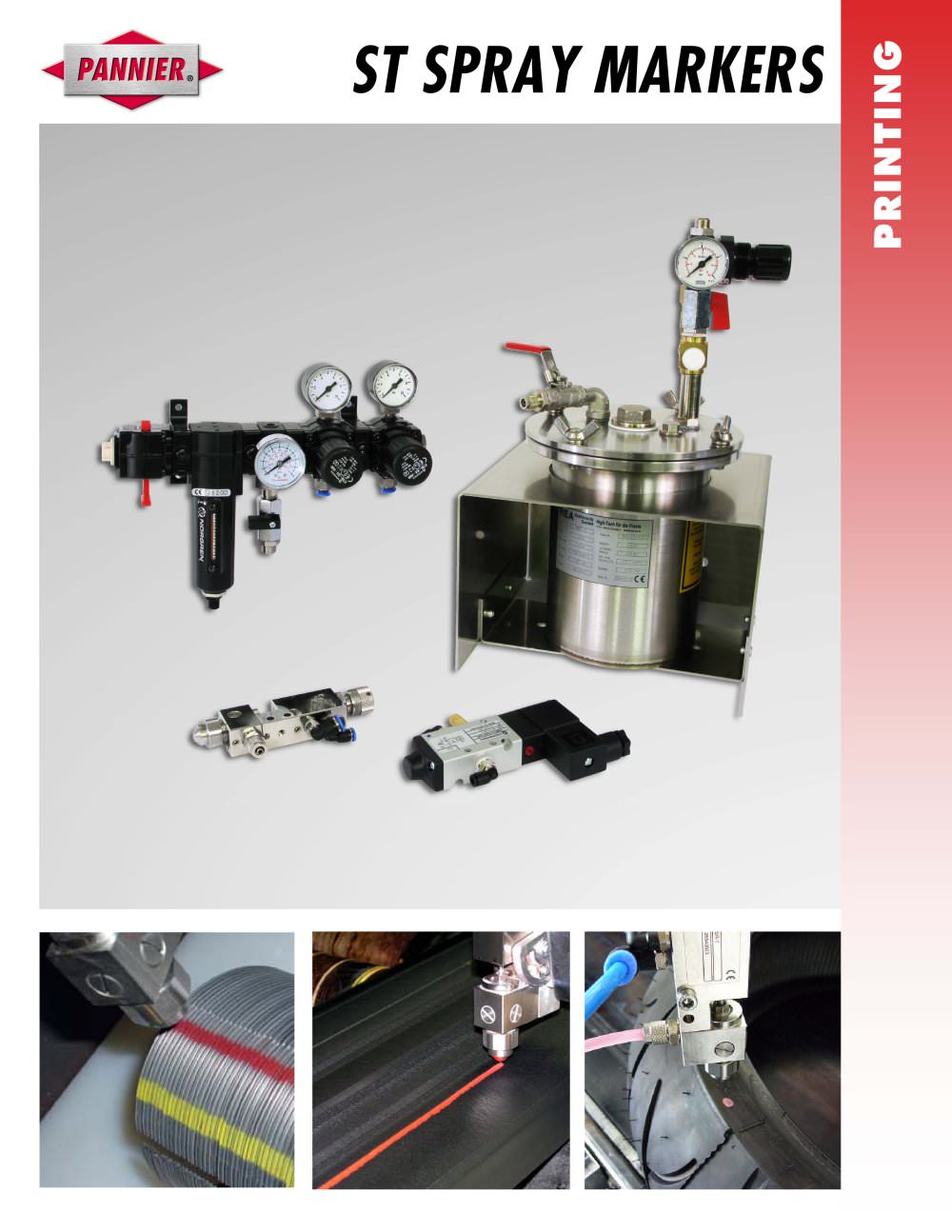

System Configuration
The system includes a spray head, material tank, 3/2 way solenoid valve, service unit, and tubing. The spray head is made from stainless steel, aluminum, or nickel-plated brass. Material tanks are available in different capacities, with optional agitators and silica gel filters for sensitive environments. The system can be controlled electrically or pneumatically, and an optional flushing device ensures the system remains operational with fast-drying inks or during idle periods.
