Overview

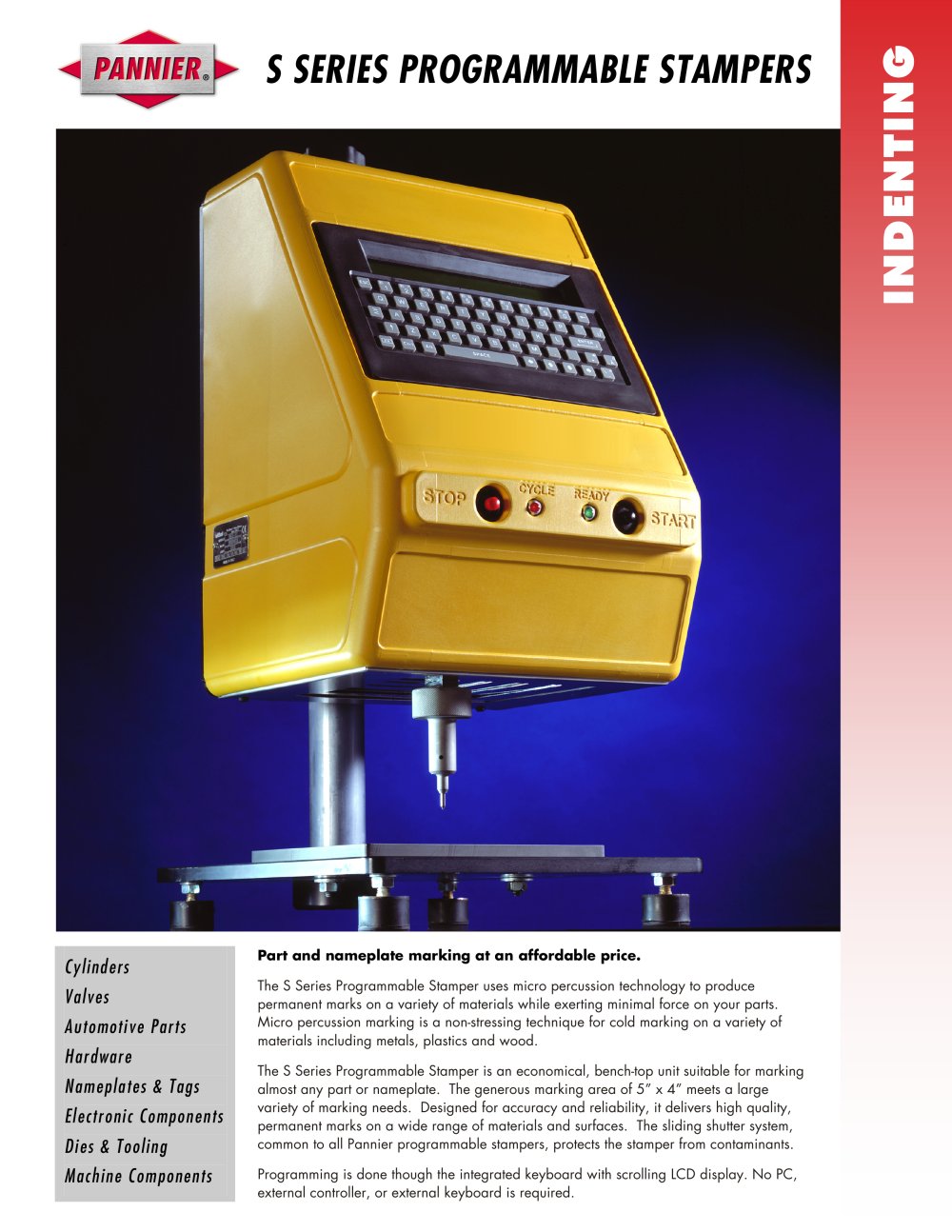

The S Series Programmable Stamper is a versatile and economical bench-top unit designed for permanent marking on a variety of materials such as metals, plastics, and wood using micro percussion technology. It is suitable for marking parts and nameplates with minimal force, ensuring high-quality and consistent marks.

Specifications

• Marking Window: 5.1” x 3.9” (130mm x 100mm)
• Display: 2 line, 40 character LCD
• Interface: RS-232 serial port and I/O connection
• Languages: English, French, German, Italian, Spanish
• Electric Supply: 90-260 VAC / 50-60 Hz, 40W
• Air Supply: 90 PSI maximum, clean and dry
• Memory: 512 KB maximum (100 marking files)
• Head Weight: 18 lbs
• Character Height: .06” to maximum of window size
• Marking Resolution: 250 dpi maximum
• Surface Irregularity: 0.48” (± 0.24”)
• Fonts: 5 standard, 13 optional

Features and Benefits

• Eliminates the need for hand stamping, reducing injuries and errors while saving time.
• Offers flexibility with the ability to mark characters as small as .06” and parts as hard as 60 HRC.
• Stores up to 100 marking files for easy selection.
• Provides excellent mark quality with precise dot control.

Models

• Model S1: Stand-alone marking station capable of marking text, dates, basic shapes, and automatic serialization.
• Model S5: Includes SISM PC interface software for downloading logos, uploading marking files, and storing unlimited marking files on a PC.

Options

• Bar code reader connection kit
• RS-485 connection and network management program kit
• Reporting function for marking job parameters
• Integrator Protocol function for serial communication
• Custom interface programming
• Remote control with start/stop buttons
• 2D Data Matrix marking capability

Fixturing & Supports
The stamper comes with a standard column and base, with options for heavy-duty columns and custom fixtures for various part shapes and sizes.
