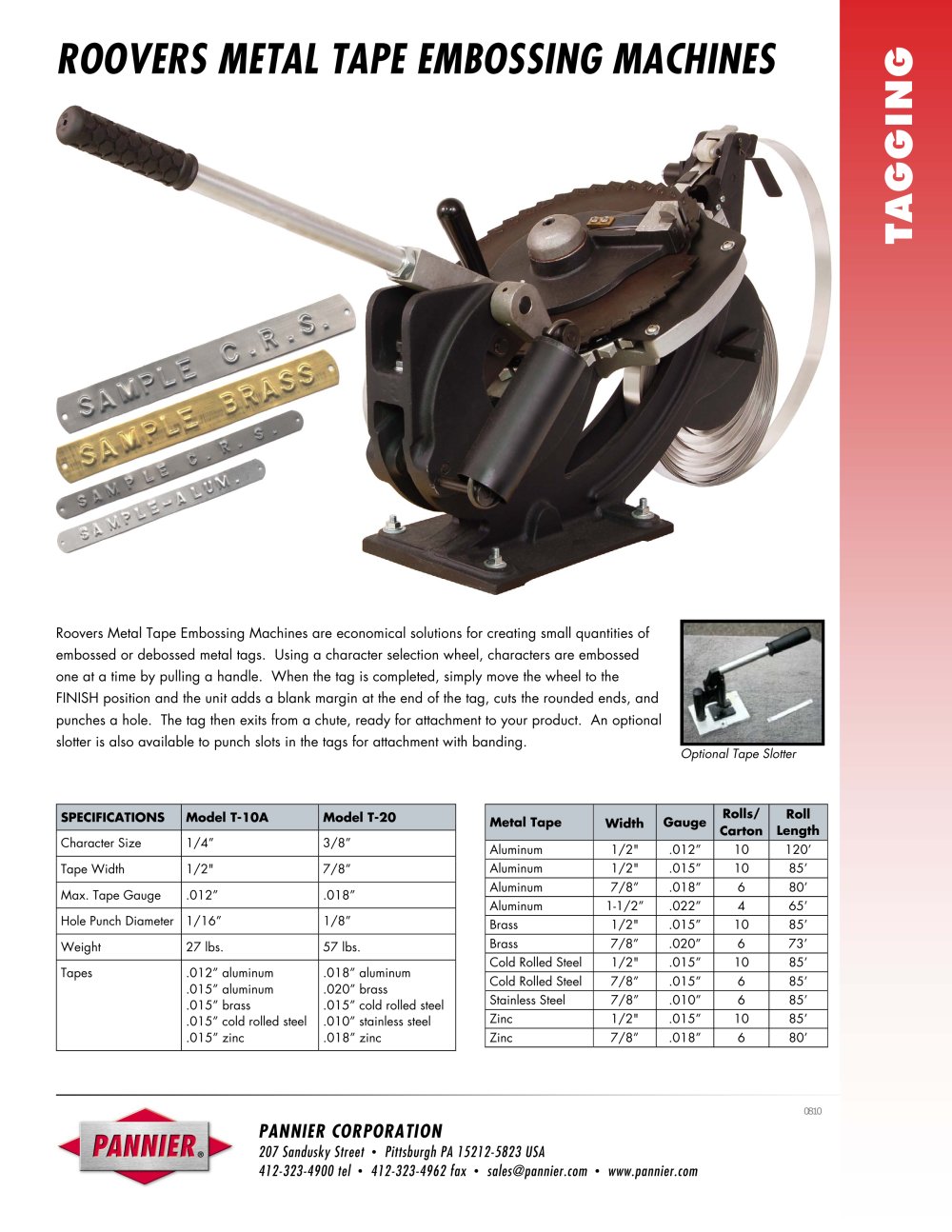

Overview: The document provides details about the Roovers Metal Tape Embossing Machines, which are designed for creating small quantities of embossed or debossed metal tags. These machines use a character selection wheel to emboss characters one at a time, and they offer an optional slotter for punching slots in the tags for attachment with banding.
Specifications:- Model T-10A: Character Size: 1/4”, Tape Width: 1/2”, Max. Tape Gauge: .012”, Hole Punch Diameter: 1/16”, Weight: 27 lbs.
- Model T-20: Character Size: 3/8”, Tape Width: 7/8”, Max. Tape Gauge: .018”, Hole Punch Diameter: 1/8”, Weight: 57 lbs.
Materials: The machines can work with various materials including aluminum, brass, cold rolled steel, stainless steel, and zinc, with different tape widths and gauges available.
Metal Tape Details:- Aluminum: Available in widths of 1/2", 7/8", and 1-1/2" with gauges ranging from .012” to .022”.
- Brass: Available in widths of 1/2" and 7/8" with gauges of .015” and .020”.
- Cold Rolled Steel: Available in widths of 1/2" and 7/8" with a gauge of .015”.
- Stainless Steel: Available in a width of 7/8" with a gauge of .010”.
- Zinc: Available in widths of 1/2" and 7/8" with gauges of .015” and .018”.
Key Features: The machines are economical and efficient for small-scale production, providing features like a character selection wheel, blank margin addition, rounded end cutting, and hole punching. The optional slotter enhances versatility for tag attachment.
