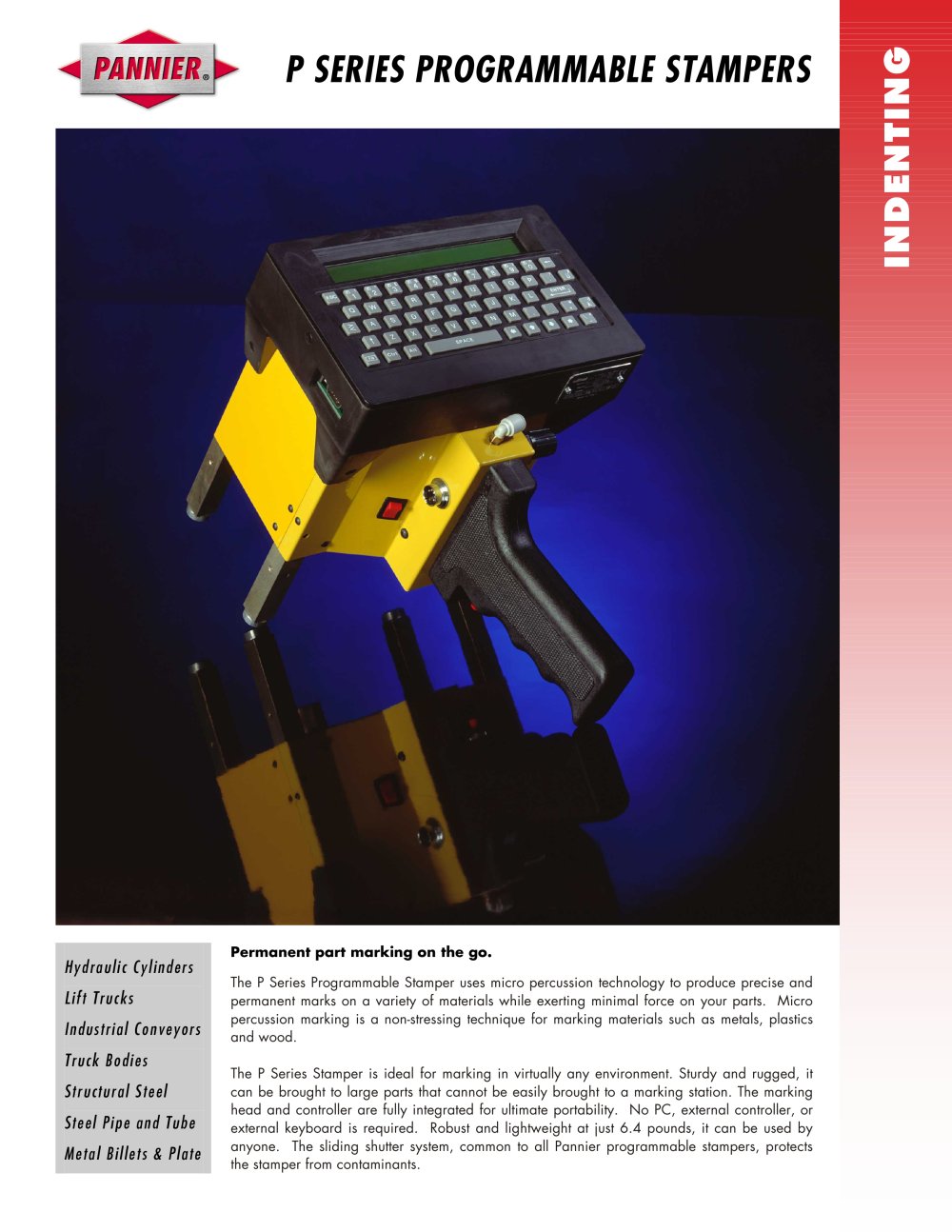

Overview: The document provides detailed information about the P Series Programmable Stamper, a device used for permanent part marking using micro percussion technology. This technology allows for precise and permanent marks on various materials with minimal force.

Specifications: The stamper features a marking window of 4.3” x 1.2” and a 2-line, 40-character LCD display. It supports multiple languages and requires an electric supply of 90-264 VAC / 50-60 Hz, 15W, and an air supply of 90 PSI maximum. The device weighs 6.4 lbs and has head dimensions of 7.1”W x 5.2”T x 5.9”D. It offers a marking resolution of up to 250 dpi and supports various fonts.

Models:

• Model P1: A basic stand-alone unit capable of marking text, date codes, basic shapes, and automatic serialization. It features a pistol grip handle for easy operation.
• Model P5: An advanced model that includes SISM PC interface software for downloading logos, uploading marking files, and storing files on a PC.

Options: The stamper offers several optional features, including 2D Data Matrix marking capability, bar code reader connection, RS-485 connection for networking, reporting functions, and custom interface programming.

System Configurations: The P Series stamper is designed for flexibility and can be configured for in-line integration or as a stationary unit. It can be equipped with a magnetic base or adapter for marking irregularly shaped parts. The head and controller can be used separately, and custom fixtures can be designed for specific marking challenges.
