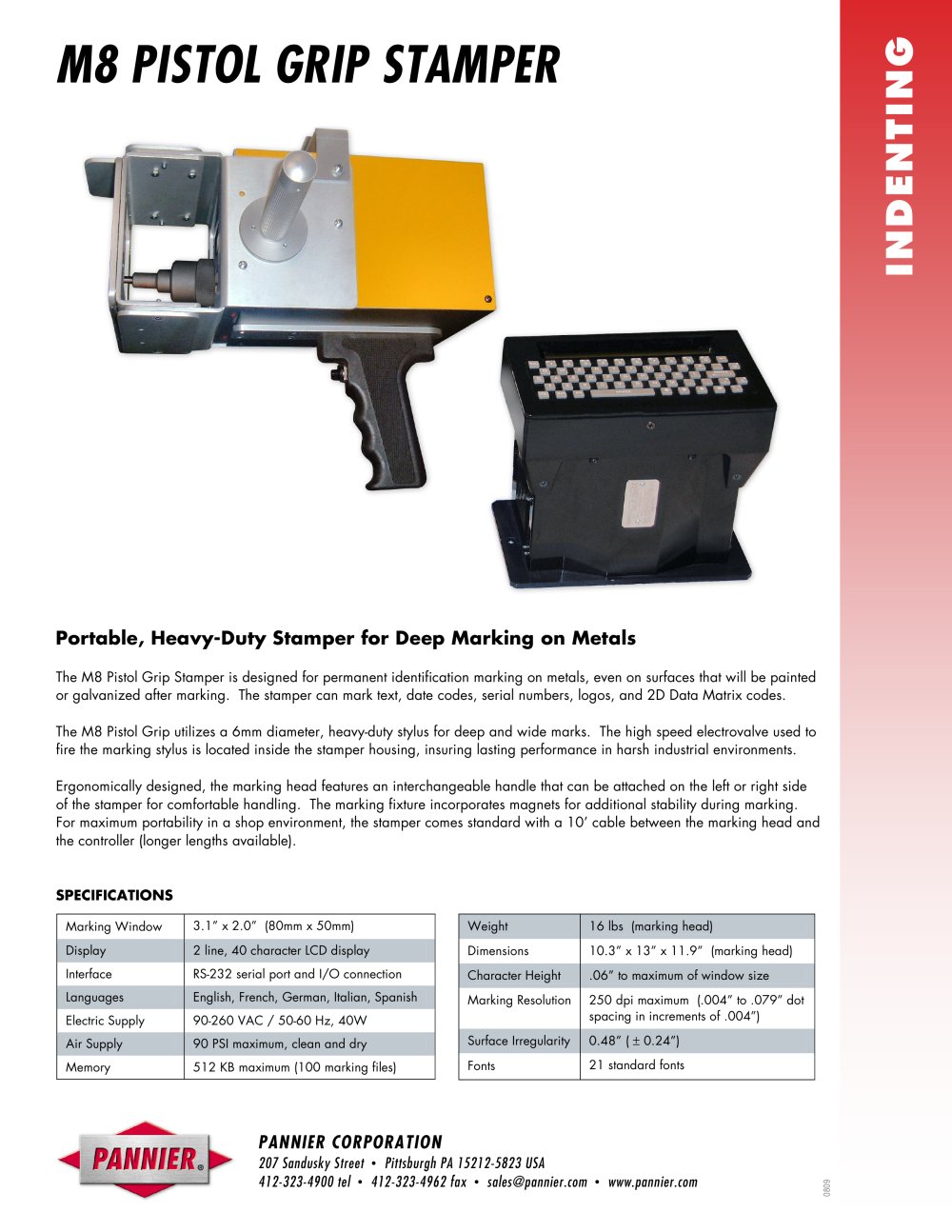

Overview
The M8 Pistol Grip Stamper is a portable, heavy-duty tool designed for deep marking on metal surfaces. It is suitable for creating permanent identification marks, including text, date codes, serial numbers, logos, and 2D Data Matrix codes, even on surfaces that will be painted or galvanized.

Design and Features
The stamper features a 6mm diameter stylus for creating deep and wide marks. It includes a high-speed electrovalve within the housing for durability in harsh environments. The ergonomic design allows for an interchangeable handle that can be attached on either side for user comfort. Magnets in the marking fixture provide additional stability.

Portability
The stamper is equipped with a standard 10-foot cable connecting the marking head to the controller, with longer lengths available for enhanced portability in shop environments.

Specifications

• Marking Window: 3.1” x 2.0” (80mm x 50mm)
• Display: 2-line, 40-character LCD
• Interface: RS-232 serial port and I/O connection
• Languages: English, French, German, Italian, Spanish
• Electric Supply: 90-260 VAC / 50-60 Hz, 40W
• Air Supply: 90 PSI maximum, clean and dry
• Memory: 512 KB maximum (100 marking files)
• Weight: 16 lbs (marking head)
• Dimensions: 10.3” x 13” x 11.9” (marking head)
• Character Height: .06” to maximum of window size
• Marking Resolution: 250 dpi maximum (.004” to .079” dot spacing in increments of .004”)
• Surface Irregularity: 0.48” (± 0.24”)
• Fonts: 21 standard fonts
