Overview

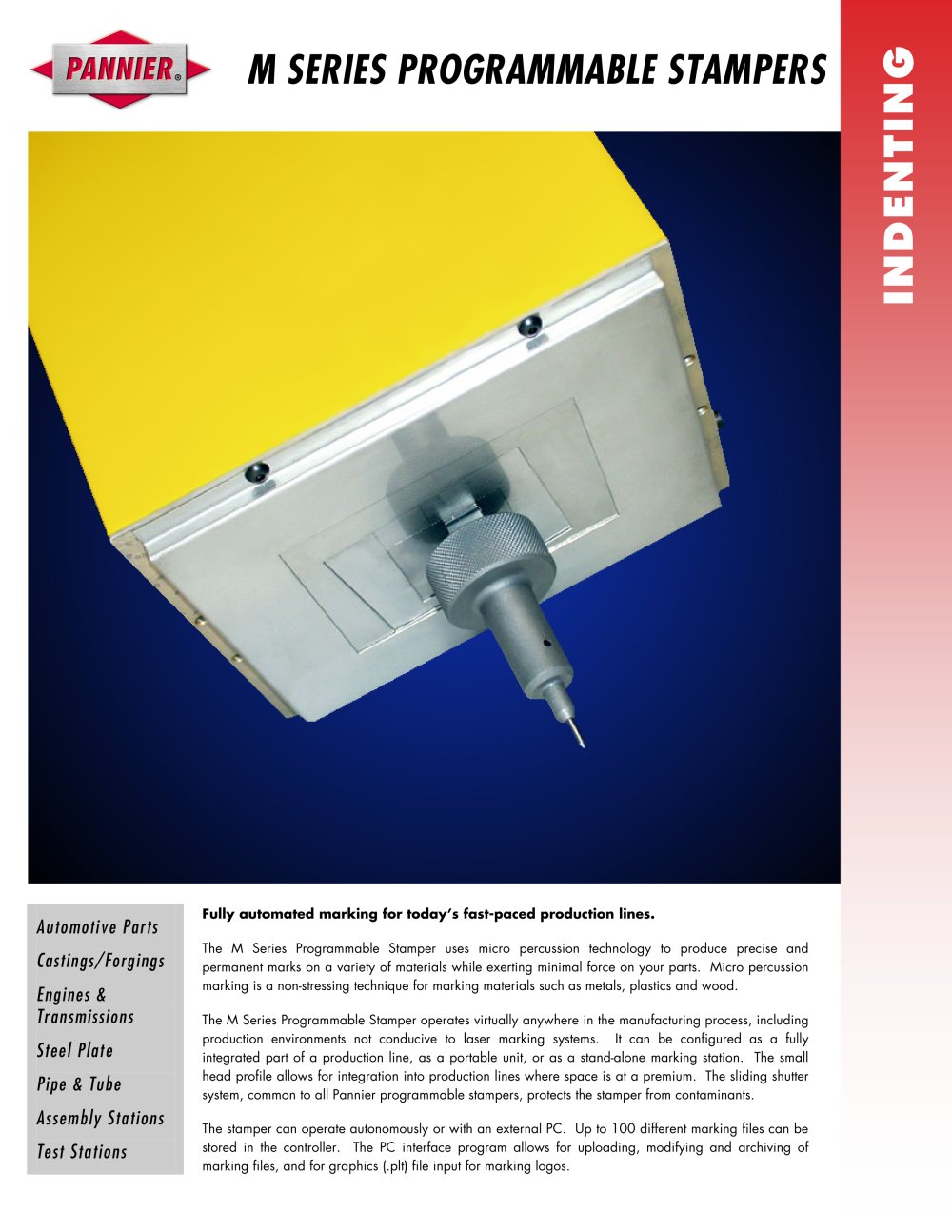

The M Series Programmable Stamper is designed for fully automated marking in fast-paced production lines. It uses micro percussion technology to create precise and permanent marks on various materials, including metals, plastics, and wood, with minimal force. This technology is suitable for environments where laser marking is not feasible.

Specifications
The stamper is available in different models with varying marking window sizes: M8/M8-IP (3.1” x 2.0”) and M10 (5.1” x 3.9”). It features a 2-line, 40-character LCD display, RS-232 serial port, and supports multiple languages. The electric supply requirement is 90-260 VAC, and it operates with a maximum air supply of 90 PSI. The memory can store up to 100 marking files, and it offers 21 standard fonts.

Integration and Networking
The stamper can be integrated into production lines or used as a standalone unit. It includes an I/O port for remote operation, RS-232 interface for data input, and supports 2D Data Matrix code marking. The system allows for easy creation and modification of marking files through serial communication.

Mark Quality and Durability
The stamper ensures excellent mark quality with high-resolution stepper motors guiding the stylus on X and Y axes. It maintains consistent and legible characters over time due to precise dot control. The robust design, including a rigid aluminum frame and protective shutter system, ensures long life even in harsh environments.

Models and Options
The M8 model includes a marking head and control box, while the M8-IP offers additional protection against dirt and moisture. Optional features include RS-485 networking, bar code reader connection, reporting functions, and custom interface programming. Pannier also provides standard and custom fixtures for various marking needs.

Conclusion
The M Series Programmable Stamper is a versatile and durable solution for high-speed production environments, offering flexibility in integration and high-quality marking capabilities.
