G Series Scribers
Product catalog summary
Overview

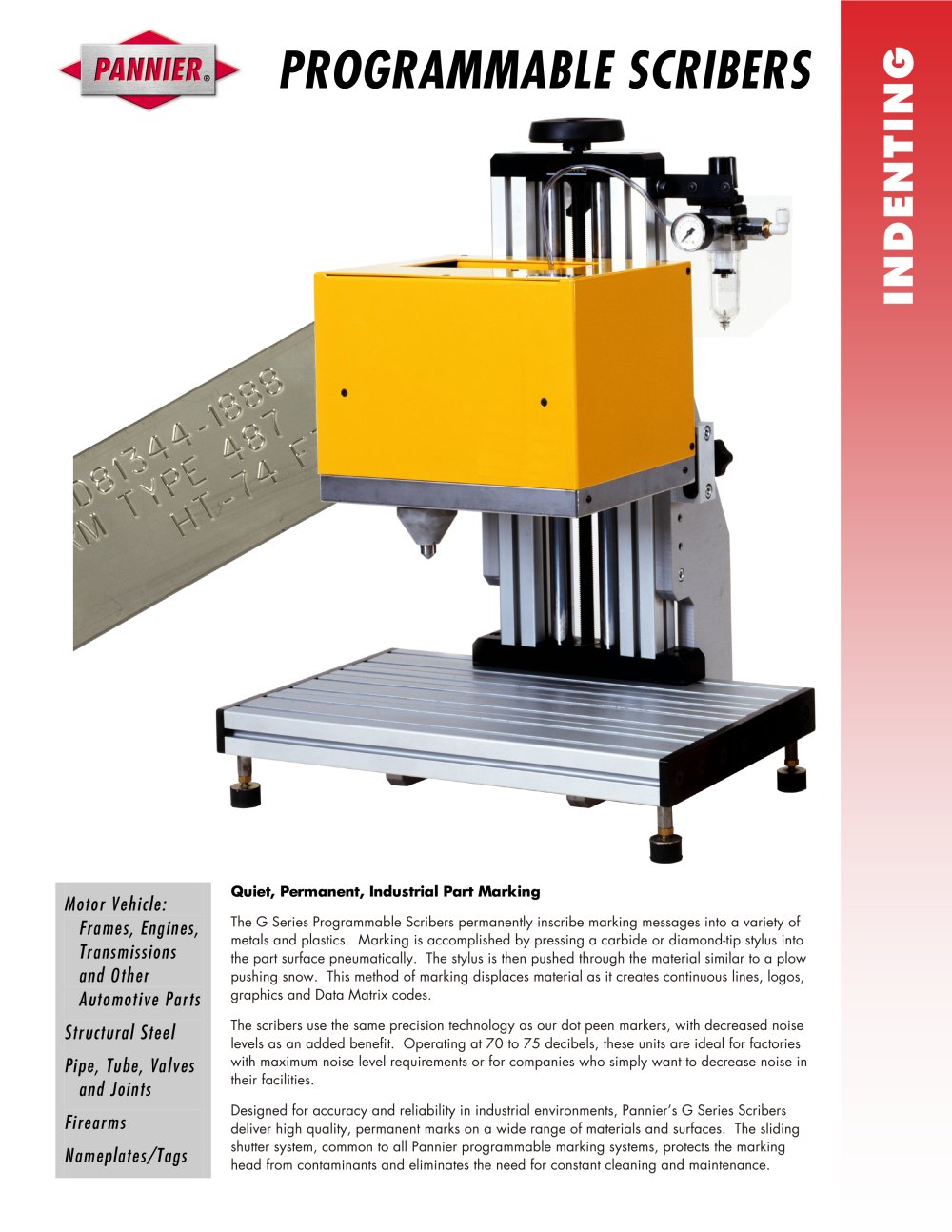

The G Series Programmable Scribers are designed for permanent marking on various metals and plastics, utilizing a carbide or diamond-tip stylus. This method displaces material to create continuous lines, logos, graphics, and Data Matrix codes with reduced noise levels, making them suitable for noise-sensitive environments.
The G Series Programmable Scribers are designed for permanent marking on various metals and plastics, utilizing a carbide or diamond-tip stylus. This method displaces material to create continuous lines, logos, graphics, and Data Matrix codes with reduced noise levels, making them suitable for noise-sensitive environments.
Specifications
- Interface: RS-232 serial port and I/O connection
- Air Supply: 90 PSI maximum, clean and dry
- Memory: 512 KB maximum (100 marking files)
- Display: 2 line, 40 character LCD
- Noise Level: 70 to 75 decibels
- Languages: English, French, German, Italian, Spanish
- Fonts: 5 standard, 13 optional
- Character Size: 3mm minimum
Model Specifications
- Model G1: Head Weight: 55 lbs, Dimensions: 12.2”W x 10.8”D x 8.9”H, Marking Window: 5.9” x 3.15”, Marking Depth: 0.4 mm, Marking Speed: 1 char/sec, Electric Supply: 90 – 264 VAC 70 W
- Model G2: Head Weight: 44 lbs, Dimensions: 11.8”W x 9.4”D x 8.9”H, Marking Window: 5.1” x 3.9”, Marking Depth: 0.3 mm, Marking Speed: 3 char/sec, Electric Supply: 110 – 230 VAC 200 W
Features
- High-quality, programmable marking with precise 2D Data Matrix code marking
- Low noise and low impact operation
- Capability to produce deep marks that remain legible after surface treatments
Custom Systems & Integration
Pannier offers custom part holding fixtures, client-specific interface software, and complete system design for turnkey solutions. Integration with unique equipment and host systems is also available.
Pannier offers custom part holding fixtures, client-specific interface software, and complete system design for turnkey solutions. Integration with unique equipment and host systems is also available.
Options
- Bar code reader connection kit
- RS-485 connection and network management program kit
- Reporting function for marking job parameters
- Integrator Protocol for marking file management
- Custom interface programming
- Remote control with start/stop buttons
- 2D Data Matrix marking capability
