Overview

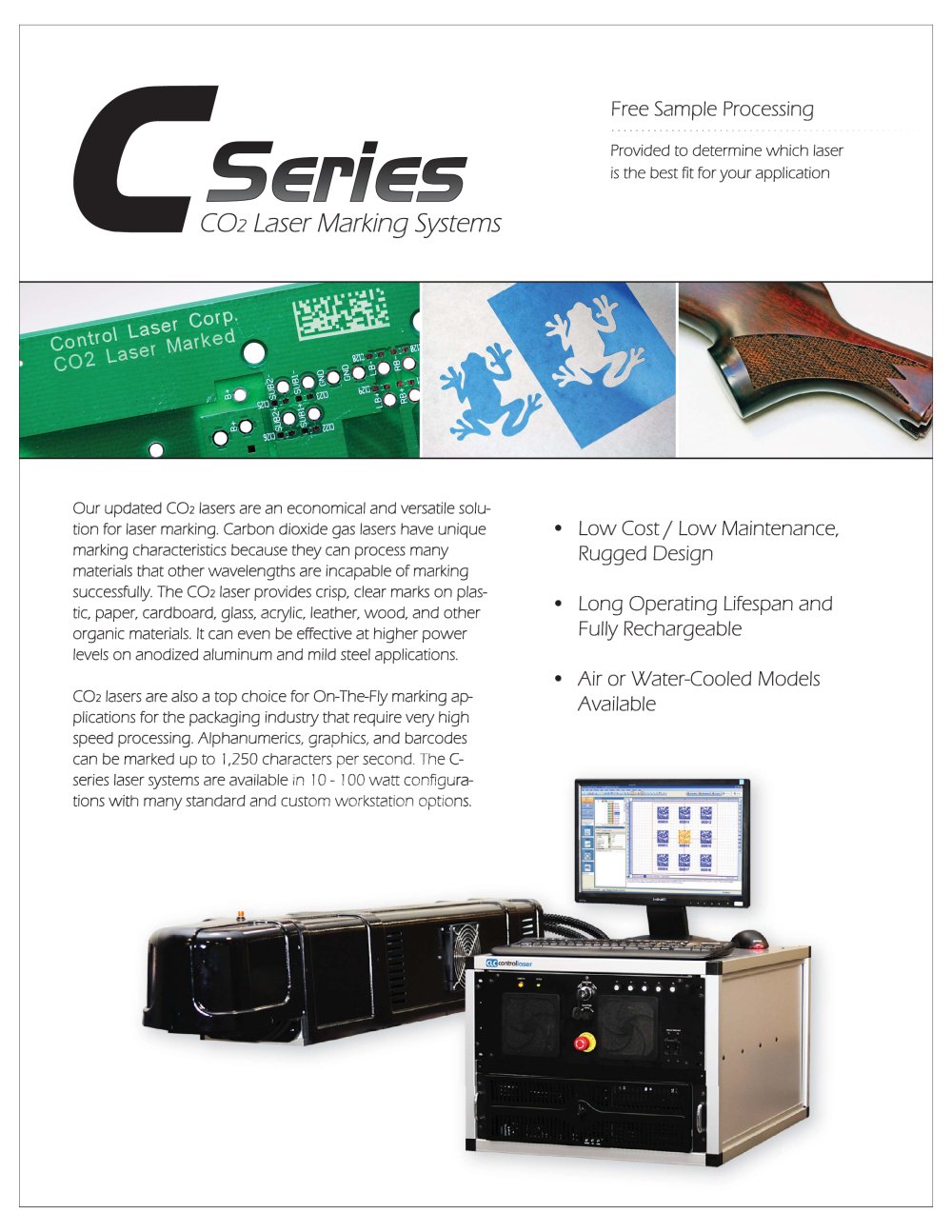

Our updated CO2 lasers offer an economical and versatile solution for laser marking, capable of processing a wide range of materials including plastic, paper, cardboard, glass, acrylic, leather, wood, and even anodized aluminum and mild steel at higher power levels. These lasers are particularly effective for high-speed On-The-Fly marking applications in the packaging industry, achieving up to 1,250 characters per second.

Specifications
The C-series laser systems are available in configurations ranging from 10 to 100 watts. Key specifications include:

• Output Power: 30W, 40W, 60W, 80W
• Mode Quality: M² ≤ 1.2
• Beam Diameter: 2.5 ± 0.5mm or 2.2 ± 0.2mm
• Beam Divergence: <7.0mR
• Wavelength: 10.57-10.63μm*
• Power Stability: ±5% to ±7%
• Cooling: Air or Water

Laser Controller Specifications
The system includes an integrated computer-based controller with Microsoft Windows® Professional OS, USB, I/O, RS 232, and Ethernet connectivity. It comes with Laser Marking Studio™ software pre-installed and offers optional features such as remote diagnostics and various workstation and automation options.

Optional Features
Optional features include a specially engineered rail design for various power levels, available in digital or analog galvos, and multiple focal lengths ranging from 70.61mm to 197.87mm.

Safety and Contact Information
The product is classified as a Class 4 laser, requiring precautions to avoid exposure to direct or scattered radiation. For more information, contact Pannier Corporation at 207 Sandusky Street, Pittsburgh, PA, or visit their website.
