Automatic Dog Tag Debossing Machine

Product catalog summary

Overview: The MDT500 Automatic Dog Tag Embossing Machine is designed specifically for military use, providing instant and fully automatic dog tag issuance. It features a fixed format with no need for adjustments and can store up to ten standard formats. Tags can also be created offline using an included keyboard.

Key Features:

Automatic ejection to an output hopper with a capacity of 70 tags.
Separate hopper for rejected tags.
Windows software for easy database interfacing, secured with a password.

Specifications:

Dimensions: 21”W x 19”D x 11.5”H
Weight: 95 lbs. (shipping weight 150 lbs.)
Power: 117V 60Hz / 230V 50Hz
Battery: 3.6V lithium backup
Operating Environment: 50°F to 95°F (10°C to 35°C), 20% to 85% humidity
Interface: RS-232 serial port
Display: LCD screen, 2 lines x 40 characters
Character Capacity: 60 characters including letters, numbers, and punctuation, 1/8” size
Hopper Capacities: Feed Hopper - 180 tags, Output Hopper - 70 tags, Reject Hopper - 10 tags
Tag Format: Stainless steel dog tags, 5-line maximum, 15 characters per line
Tag Size: 1.97” x 1.1”, .01417” thick (28 x 50mm)
Production Rate: 90 tags/hour

Pricing:

Debossing Elite Dog Tag: $8,650
Embossing Simplex 2: $8,450

Additional Information: The machine is registered with the CCR and WWAF and is available under GSA Contract #GS25F0043L.

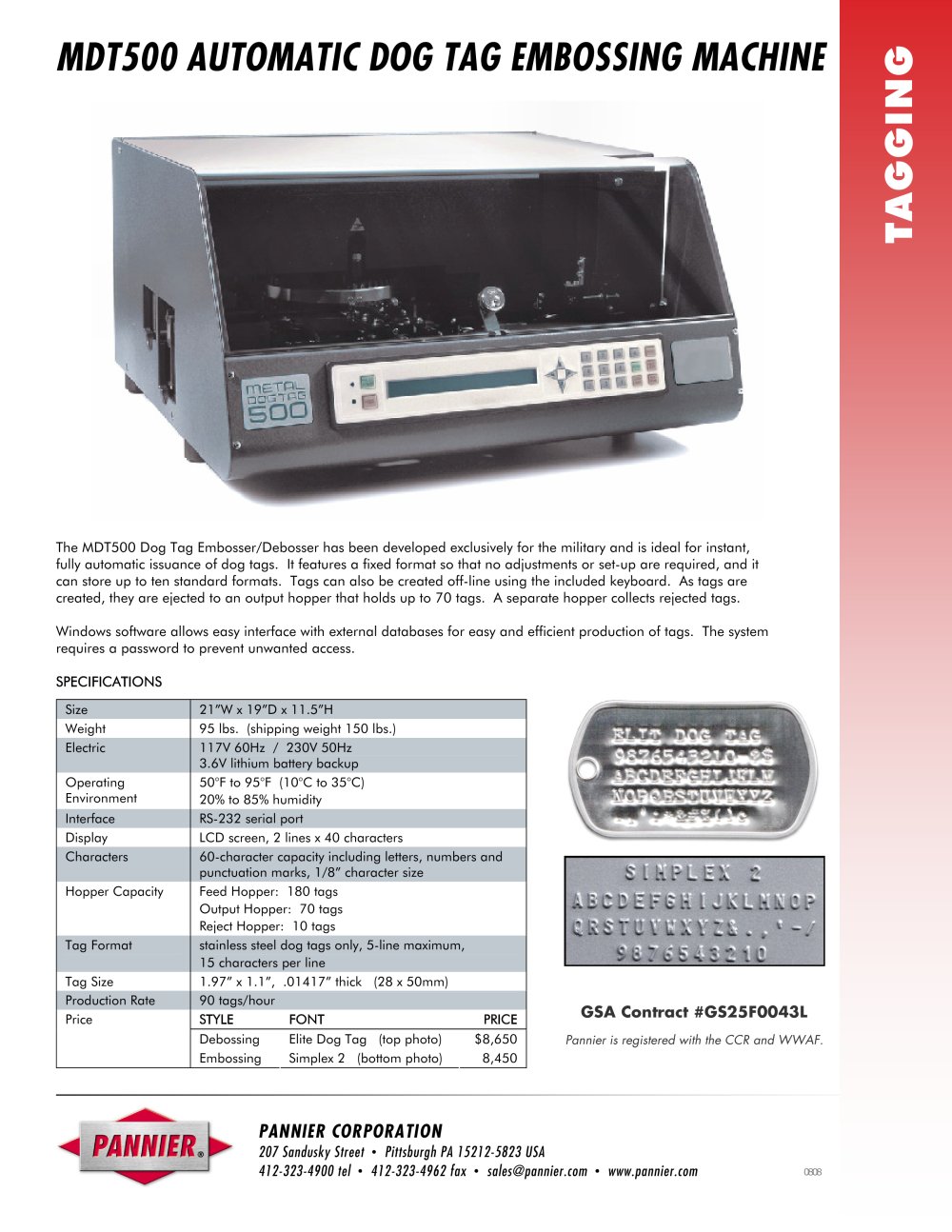

Catalog excerpts

Size 21W x 19ԔD x 11.5H Weight 95 lbs. (shipping weight 150 lbs.) Electric 117V 60Hz / 230V 50Hz 3.6V lithium battery backup Operating Environment 50԰F to 95F (10аC to 35C) 20% to 85% humidity Interface RS-232 serial port Display LCD screen, 2 lines x 40 characters Characters 60-character capacity including letters, numbers and punctuation marks, 1/8Д character size Hopper Capacity Feed Hopper: 180 tags Output Hopper: 70 tags Reject Hopper: 10 tags Tag Format stainless steel dog tags only, 5-line maximum, 15 characters per line Tag Size 1.97 x 1.1Ԕ, .01417 thick (28 x 50mm) Production Rate 90 tags/hour Price Embossing Simplex 2 (bottom photo) 8,450 STYLE FONT PRICE > Debossing Elite Dog Tag (top photo) $8,650 > Pannier is registered with the CCR and WWAF.
