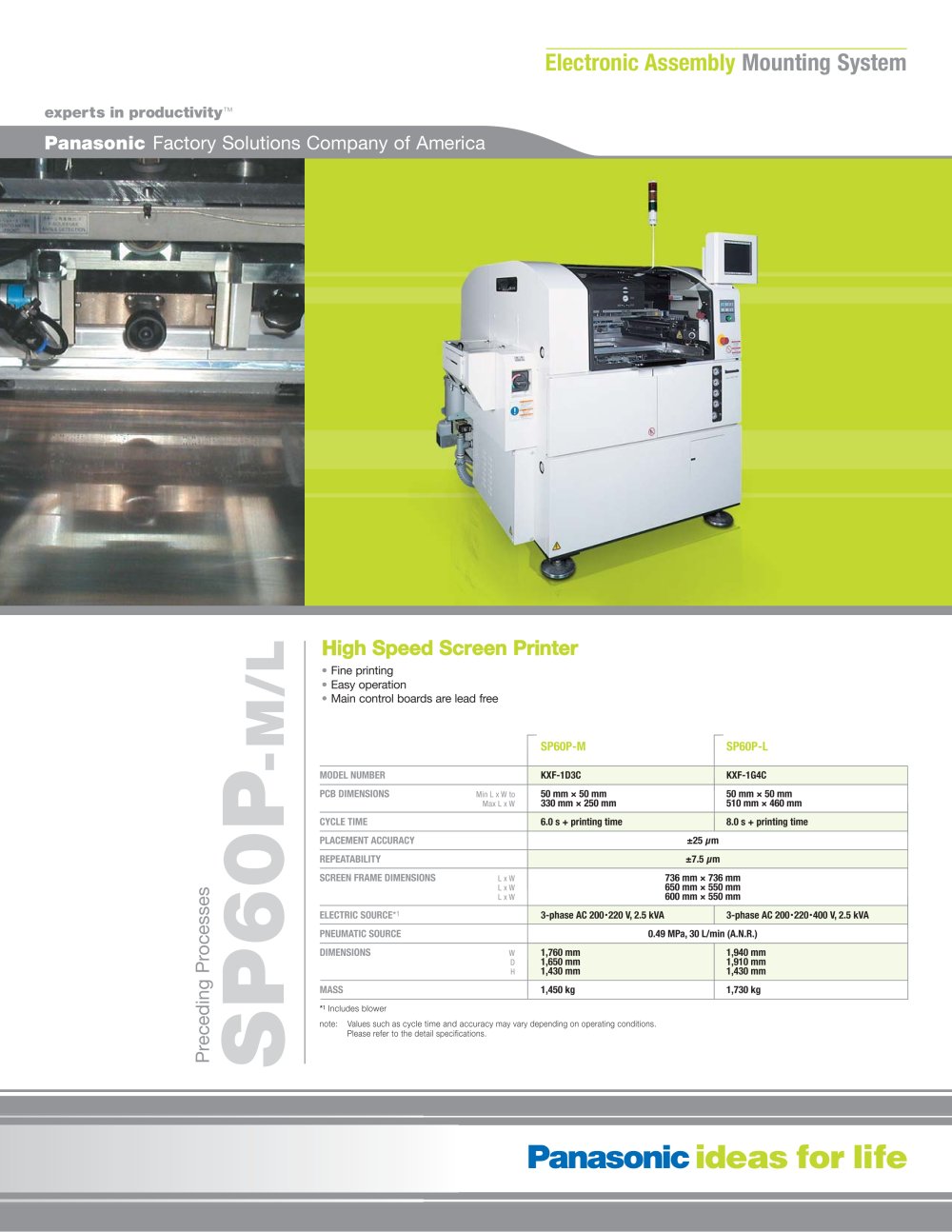

experts in productivityTM Panasonic Factory Solutions Company of America MODEL NUMBER PCB DIMENSIONS Min L x W to Max L x W CYCLE TIME PLACEMENT ACCURACY REPEATABILITY SCREEN FRAME DIMENSIONS L x W L x W L x W ELECTRIC SOURCE*1 PNEUMATIC SOURCE DIMENSIONS W D H MASS SP60P-M SP60P-L KXF-1D3C KXF-1G4C 50 mm × 50 mm 50 mm × 50 mm 330 mm × 250 mm 510 mm × 460 mm 6.0 s + printing time 8.0 s + printing time ±25 ìm ±7.5 ìm 736 mm × 736 mm 650 mm × 550 mm 600 mm × 550 mm 3-phase AC 200•220 V, 2.5 kVA 3-phase AC 200•220•400 V, 2.5 kVA 0.49 MPa, 30 L/min (A.N.R.) 1,760 mm 1,940 mm 1,650 mm 1,910 mm 1,430 mm 1,430 mm 1,450 kg 1,730 kg note: Values such as cycle time and accuracy may vary depending on operating conditions. Please refer to the detail specifications. *1 Includes blower High Speed Screen Printer • Fine printing • Easy operation • Main control boards are lead free Preceding Processes Electronic Assembly Mounting System SP60P-M/L

 Open the catalog to page 1

Cartrige Solder PC board Screen Solder PC board Screen Solder leak Squeegee prevention block HIGH-SPEED SQUEEGEE CARTRIDGE HEAD Long term production High productivity Lead free solder ADVANCED SQUEEGEE Safety Caution: To ensure safety when using this equipment, all work should be performed in accordance with the supplied operating instructions. Thoroughly read your operating instructions manual. Multiple Printing Units A wide variety of printing units and options are available to meet customers’ specific needs. Speed Accelaration New accelaration Constant speed Separation stroke High-speed...

 Open the catalog to page 2
