Panasonic PSX307 Plasma Cleaner

Panasonic PSX307 Plasma Cleaner

1 / 2 PagesView full catalog

Panasonic PSX307 Plasma Cleaner

Product catalog summary

Specifications:

Model Number: PSX303, KXF-927D
Productivity: 360 boards per hour (when gold is etched 5 nm)
Substrate Dimensions: Min 50 mm x 20 mm to Max 250 mm x 70 mm
Substrate Thickness: 0.5 mm to 2.0 mm
Cleaning Method: RF parallel electrode type
Gas for Electrical Discharge: Argon (optionally Oxygen, requiring exhaust-diluting nitrogen gas)
Electric Source: 1-phase AC 200 V, 4.2 kVA
Pneumatic Source: 0.49 MPa, 6.5 L/min (A.N.R.)
Dimensions: Width 1,764 mm, Depth 1,045 mm, Height 1,430 mm
Mass: 800 kg

Procedures and Performance:

The PSX303 system offers productivity rates one-and-a-half times faster than conventional models.
Main control boards are lead-free, enhancing environmental safety.
The argon plasma process effectively eliminates nickel compound formation on extra thin gold-plated electrodes, improving wire bonding stability.

Patents:

Usage of specific process or product patents requires a contract with Matsushita Electric Industrial Co., Ltd.
Relevant patents include Japanese patents 2,783,133, 2,783,260, 3,000,877; U.S. patents 5,647,942, 5,767,008, 6,331,347; U.K. patent 2,297,981; German patent 19,606,074.

Plasma Treatment:

Argon ion treatment reduces nickel hydroxide distribution on gold-plated surfaces, enhancing bonding performance.
Oxygen plasma treatment improves mold resin adhesion and under-fill wettability, reducing incidence of peel-off, voids, and cracks.

Safety and Compliance:

All operations should adhere to the supplied operating instructions for safety.
Specifications and appearance are subject to change for product improvement.

Contact Information:

Panasonic Factory Solutions Company of America
Phone: 1-847-495-6100
Email: [email protected]
Website: www.panasonicfa.com

Catalog excerpts

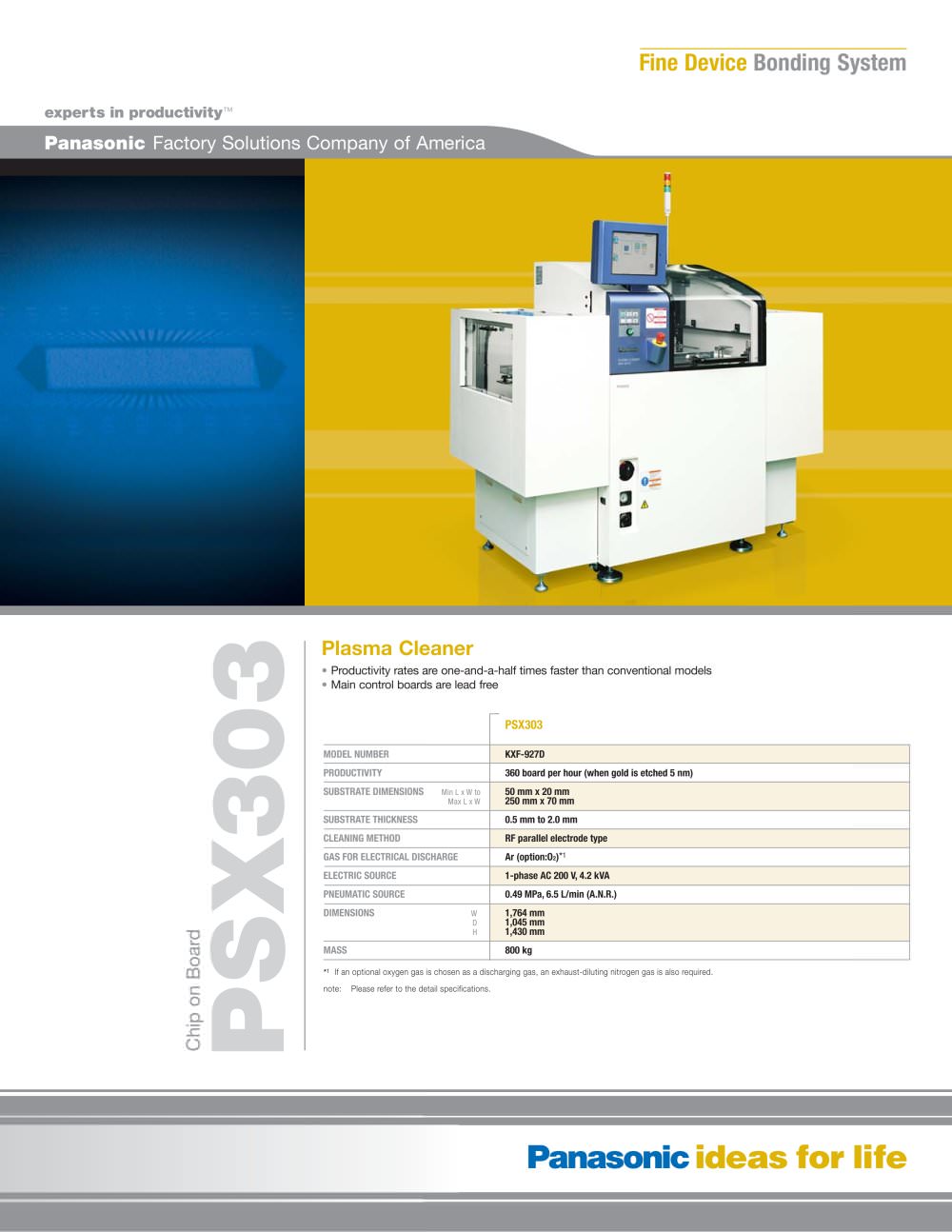

MODEL NUMBERPRODUCTIVITYSUBSTRATE DIMENSIONS KXF-927D360 board per hour (when gold is etched 5 nm)50 mm x 20 mm250 mm x 70 mm0.5 mm to 2.0 mm RF parallel electrode typeAr (option:O > Min L x W to Max L x W SUBSTRATE THICKNESSCLEANING METHOD GAS FOR ELECTRICAL DISCHARGEELECTRIC SOURCE PNEUMATIC SOURCE DIMENSIONS > 2 ) * > 1 1-phase AC 200 V, 4.2 kVA0.49 MPa, 6.5 L/min (A.N.R.)1,764 mm1,045 mm 1,430 mm800 kg > W D H MASS > * 1 If an optional oxygen gas is chosen as a discharging gas, an exhaust-diluting nitrogen gas is also required.note: Please refer to the detail specifications. Chip on Board PSX303 size="-5">
