Overview: The document provides technical specifications and features of the Panasonic CM402-L, a modular high-speed placement machine designed for electronic assembly. It highlights the machine's productivity, flexibility, and compact design.

Specifications:

Model Number: CM402-L, KXF-4Z4C
PCB Dimensions: Minimum 50 mm x 50 mm, Maximum 510 mm x 460 mm
Head Type: High-speed multi-function with 8 nozzles per head
Maximum Speed: 0.06 s/chip (60,000 cph)
Space Productivity: 9,560 cph/m²
Placement Accuracy: ±0.05 mm/chip
Component Dimensions: Supports components from 0201 (0603) to 0402 (1005)
PCB Exchange Time: 0.9 s for board length up to 240 mm
Electric Source: 3-phase AC 200 V ±10 V / AC 400 V ±10 V, 2.5 kVA
Pneumatic Source: 490 kPa, 150 L/min
Dimensions: Width 2,350 mm, Depth 2,690 mm, Height 1,430 mm
Mass: 3,000 kg (excluding collective-exchange cart)

Features:

Ultra-high-speed placement with multiple heads and accurate recognition system.
Intelligent feeder system with tape splicing function to reduce downtime.
Supports a wide variety of parts including BGA, CSP, and fine-pitch mounting.
Feeder-by-feeder tape replacement during operation and collective exchange cart for efficiency.

Safety and Compliance: The document emphasizes the importance of following operating instructions for safety and notes that optional configurations may not conform to EC Machinery and EMC directives.

Contact Information: Panasonic Factory Solutions Company of America, Phone: 1-847-495-6100, Email: [email protected], Website: www.panasonicfa.com

Catalog excerpts

Panasonic Pre-Owned Certified Equipment CM402 -1

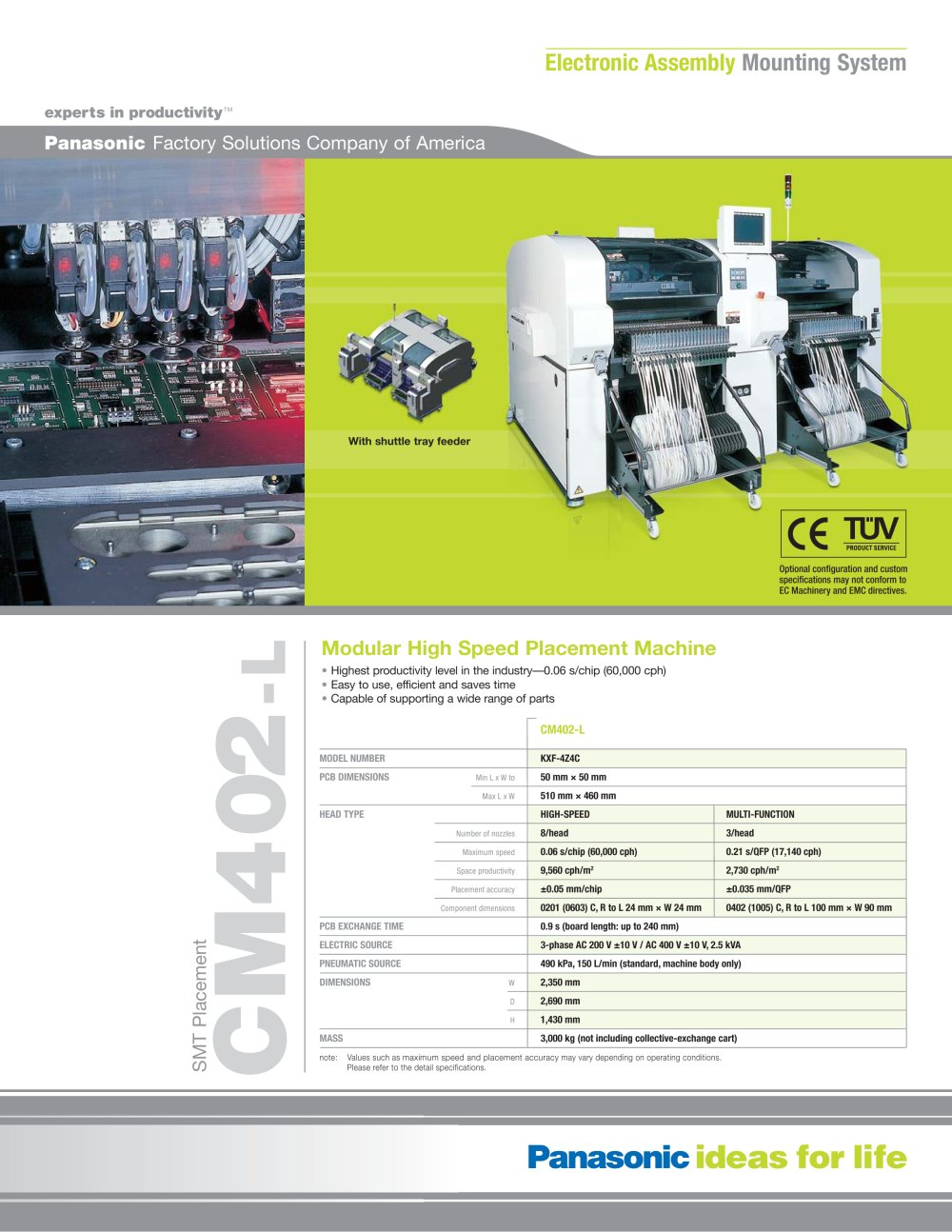

Optional configuration and custom specifications may not conform to EC Machinery and EMC directives. MODEL NUMBERPCB DIMENSIONS KXF-4Z4C50 mm 50 mm510 mm ח 460 mm HIGH-SPEED MULTI-FUNCTION8/head 3/head0.06 s/chip (60,000 cph) 0.21 s/QFP (17,140 cph) 9,560 cph/m > Min L x W to Max L x W HEAD TYPE > Number of nozzles Maximum speed Space productivity Placement accuracy Component dimensions 2 2,730 cph/m > 2 0.05 mm/chip ѱ0.035 mm/QFP 0201 (0603) C, R to L 24 mm W 24 mm 0402 (1005) C, R to L 100 mm ח W 90 mm 0.9 s (board length: up to 240 mm)3-phase AC 200 V 10 V / AC 400 V ѱ10 V, 2.5 kVA 490 kPa, 150 L/min (standard, machine body only)2,350 mm2,690 mm 1,430 mm3,000 kg (not including collective-exchange cart) PCB EXCHANGE TIMEELECTRIC SOURCEPNEUMATIC SOURCEDIMENSIONS > W D H MASS > note: Values such as maximum speed and placement accuracy may vary depending on operating conditions. Please refer to the detail specifications. SMT Placement CM402 size="-5">
