Panasonic PA360S
2Pages

{{requestButtons}}

Catalog excerpts

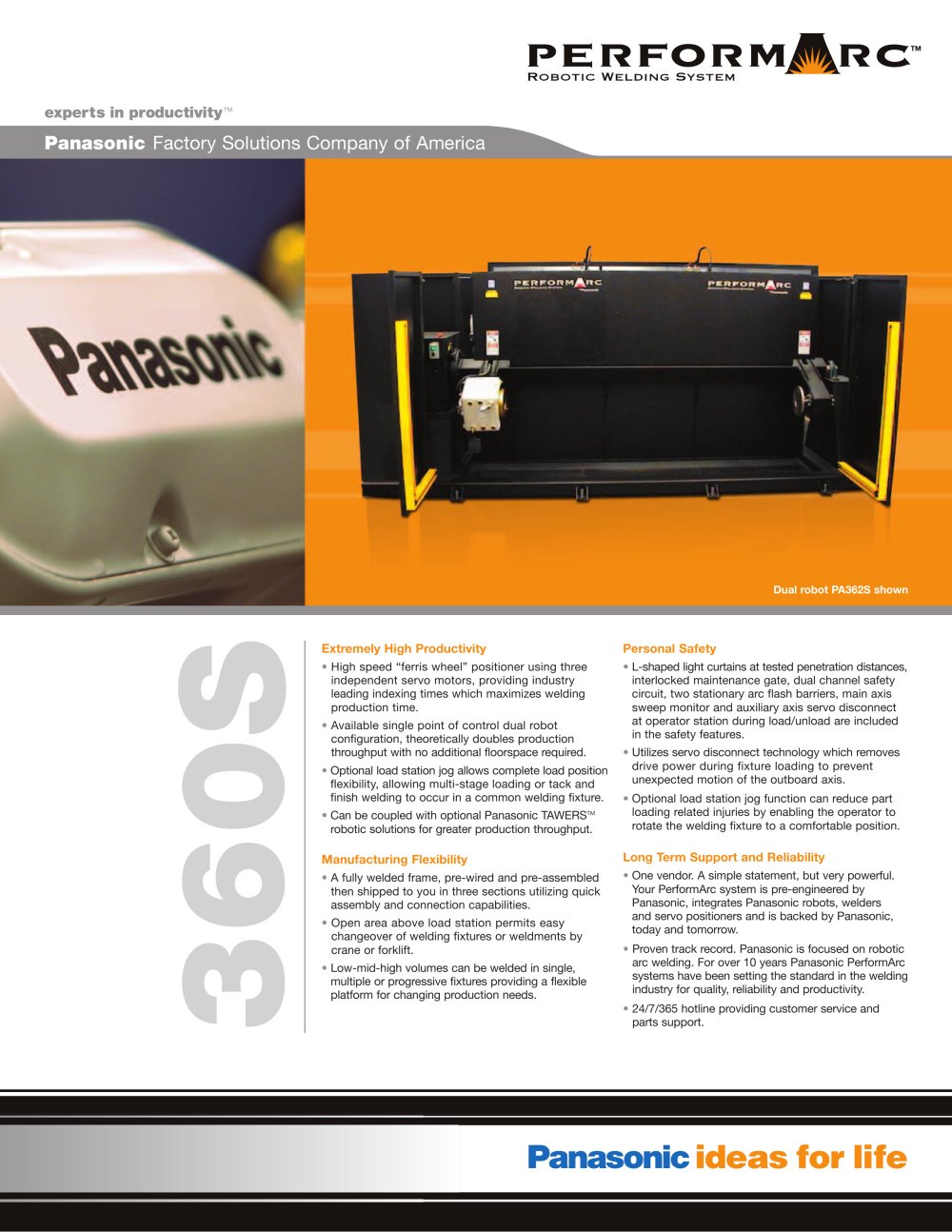

Panasonic PA360S - 1

Dual robot PA362S shown High speed Փferris wheel positioner using three independent servo motors, providing industry leading indexing times which maximizes welding production time.ԕAvailable single point of control dual robot configuration, theoretically doubles production throughput with no additional floorspace required.Optional load station jog allows complete load positionflexibility, allowing multi-stage loading or tack and finish welding to occur in a common welding fixture.ՕCan be coupled with optional Panasonic TAWERS L-shaped light curtains at tested penetration distances,interlocked maintenance gate, dual channel safety circuit, two stationary arc flash barriers, main axis sweep monitor and auxiliary axis servo disconnect at operator station during load/unload are included in the safety features.Օ Utilizes servo disconnect technology which removesdrive power during fixture loading to prevent unexpected motion of the outboard axis.Optional load station jog function can reduce partloading related injuries by enabling the operator to rotate the welding fixture to a comfortable position. > TM robotic solutions for greater production throughput. > ՕA fully welded frame, pre-wired and pre-assembledthen shipped to you in three sections utilizing quick assembly and connection capabilities.Open area above load station permits easychangeover of welding fixtures or weldments by crane or forklift.ՕLow-mid-high volumes can be welded in single, multiple or progressive fixtures providing a flexible platform for changing production needs. One vendor. A simple statement, but very powerful.Your PerformArc system is pre-engineered by Panasonic, integrates Panasonic robots, welders and servo positioners and is backed by Panasonic, today and tomorrow.Օ Proven track record. Panasonic is focused on roboticarc welding. For over 10 years Panasonic PerformArc systems have been setting the standard in the welding industry for quality, reliability and productivity. 24/7/365 hotline providing customer service andparts support. > 360S size="-4">

Open the catalog to page 1
