Panasonic IP321

Product catalog summary

Overview: The document provides technical specifications and features of the Panasonic Factory Solutions IP121, NM-TE10A, and NM-TE10E models, which are mounted PC board inspection machines. These machines utilize an innovative high-speed 3D laser system for inspecting mounted PC boards with high accuracy.

Specifications:

PCB Dimensions: Minimum 50 mm x 50 mm to Maximum 510 mm x 460 mm.
Resolution: X-Y direction: 10/20 µm (variable), Z direction: 20 µm (fixed).
Inspection Time: Varies based on PCB size and resolution, e.g., 120 x 100 mm at 10 µm takes approximately 23 seconds.
Applicable Components: Larger than P 0.4 mm QFP for 10 µm resolution and P 0.5 mm QFP for 20 µm resolution.
Electric Source: 1-phase AC 200 V, 1.0 kVA.
Pneumatic Source: 0.5 MPa, 40 L/min (A.N.R.).
Dimensions: Width: 900 mm, Depth: 972 mm, Height: 1,430 mm (excluding monitor and signal tower).
Mass: 800 kg.

Features:

High-Speed 3D Laser System: Capable of high-speed rotation and scanning, improving inspection speed and accuracy.
Advanced Chip Placement Technology: Enables high-resolution inspection of microchip components, including lead-free solder inspection.
Improved Operation: Combines Gerber data conversion with automatic recognition for efficient data creation and component placement.
Improved Productivity: The system's small footprint and high-speed scanning optimize productivity space.
Improved Placement Quality: Features a new repair station for storing inspection results and supporting repair work, enhancing overall quality analysis.

Safety and Compliance: Users are advised to follow the operating instructions for safety. Optional configurations may not conform to EC Machinery and EMC directives.

Contact Information: Panasonic Factory Solutions Company of America, Phone: 1-847-495-6100, Email: [email protected], Website: www.panasonicfa.com

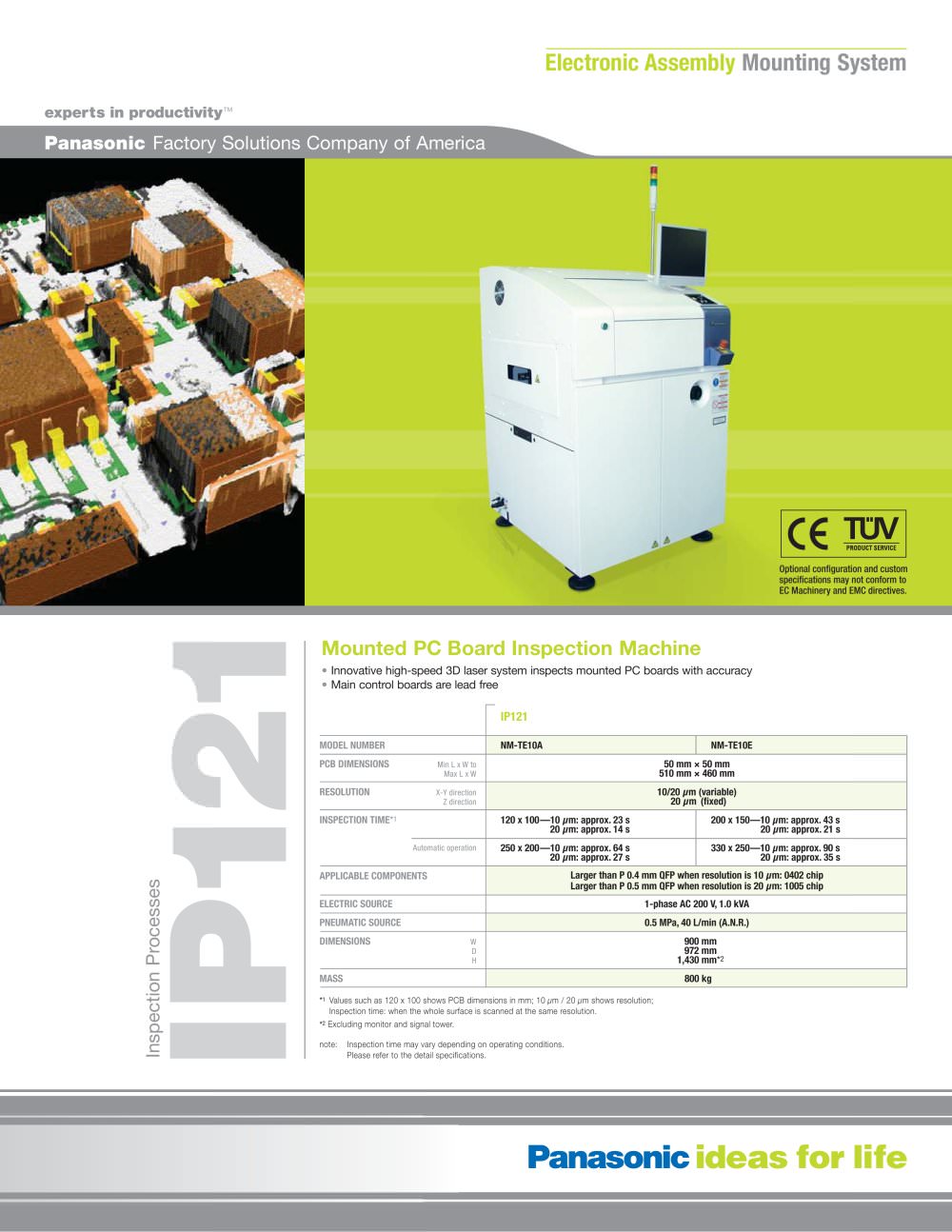

Catalog excerpts

Optional configuration and custom specifications may not conform to EC Machinery and EMC directives. NM-TE10A NM-TE10E 50 mm 50 mm 510 mm ח 460 mm 10/20 > Min L x W to Max L x W m (variable) 20 յ m (fixed)120 x 10010 RESOLUTION > X-Y direction Z direction ׵ m: approx. 23 s 200 x 15010 ׵ m: approx. 43 s 20 > 1 m: approx. 14 s 20 յ m: approx. 21 s250 x 20010 INSPECTION TIME * ׵ m: approx. 64 s 330 x 25010 ׵ m: approx. 90 s 20 m: approx. 27 s 20 յ m: approx. 35 s Larger than P 0.4 mm QFP when resolution is 10 > Automatic operation m: 0402 chip Larger than P 0.5 mm QFP when resolution is 20 յ m: 1005 chip 1-phase AC 200 V, 1.0 kVA 0.5 MPa, 40 L/min (A.N.R.) 900 mm 972 mm 1,430 mm APPLICABLE COMPONENTSELECTRIC SOURCEPNEUMATIC SOURCE DIMENSIONS * > W D H 2 MASS 800 kg MODEL NUMBERPCB DIMENSIONS > * 1 Values such as 120 x 100 shows PCB dimensions in mm; 10 m / 20 յ m shows resolution; Inspection time: when the whole surface is scanned at the same resolution. * 2 Excluding monitor and signal tower. note: Inspection time may vary depending on operating conditions. Please refer to the detail specifications. Inspection Processes IP121 size="-5">

Open the catalog to page 1
