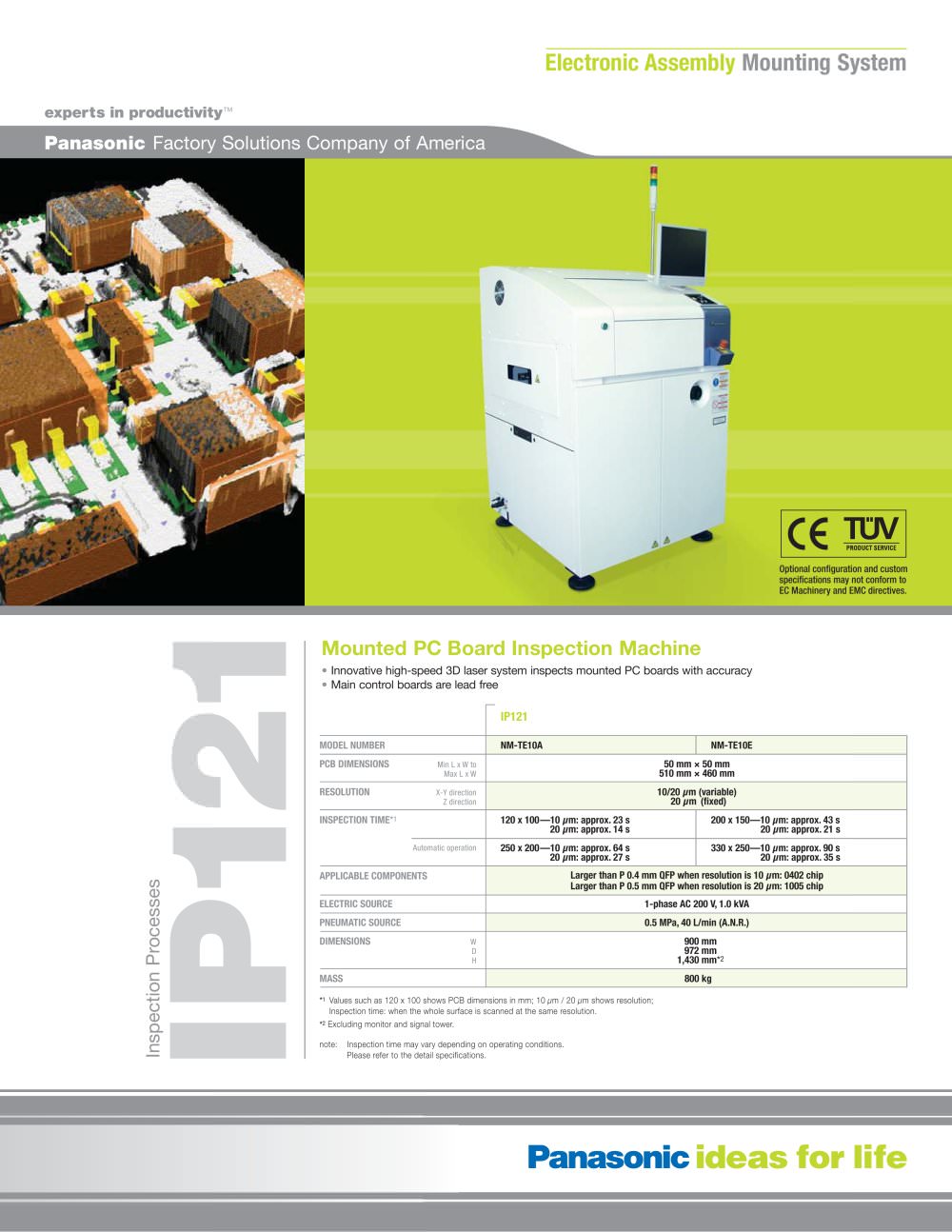

experts in productivityTM Panasonic Factory Solutions Company of America IP121 NM-TE10A NM-TE10E 50 mm × 50 mm 510 mm × 460 mm 10/20 ìm (variable) 20 ìm (fixed) 120 x 100—10 ìm: approx. 23 s 200 x 150—10 ìm: approx. 43 s 20 ìm: approx. 14 s 20 ìm: approx. 21 s 250 x 200—10 ìm: approx. 64 s 330 x 250—10 ìm: approx. 90 s 20 ìm: approx. 27 s 20 ìm: approx. 35 s Larger than P 0.4 mm QFP when resolution is 10 ìm: 0402 chip Larger than P 0.5 mm QFP when resolution is 20 ìm: 1005 chip 1-phase AC 200 V, 1.0 kVA 0.5 MPa, 40 L/min (A.N.R.) 900 mm 972 mm 1,430 mm*2 800 kg MODEL NUMBER PCB DIMENSIONS Min L x W to Max L x W RESOLUTION X-Y direction Z direction INSPECTION TIME*1 Automatic operation APPLICABLE COMPONENTS ELECTRIC SOURCE PNEUMATIC SOURCE DIMENSIONS W D H MASS note: Inspection time may vary depending on operating conditions. Please refer to the detail specifications. *1 Values such as 120 x 100 shows PCB dimensions in mm; 10 ìm / 20 ìm shows resolution; Inspection time: when the whole surface is scanned at the same resolution. *2 Excluding monitor and signal tower. Mounted PC Board Inspection Machine • Innovative high-speed 3D laser system inspects mounted PC boards with accuracy • Main control boards are lead free IP121 Inspection Processes Optional configuration and custom specifications may not conform to EC Machinery and EMC directives. Electronic Assembly Mounting System

Inspection data CAD/CAM Gerber data Data conversion ground automatic teaching Combination of images of placement PC board Improved Operation Combination of Gerber data conversion and automatic recognition • By reading the circuit design drawing (using the converted Gerber data from the PC board) automatic teaching (including grand teaching) of all placed components can be accomplished. • New data can be created quicker and easier than when processed manually. Advanced Chip Placement Technology High-resolution inspection of micro chip components • Resolution of 10 ìm enables inspection of 0402...
