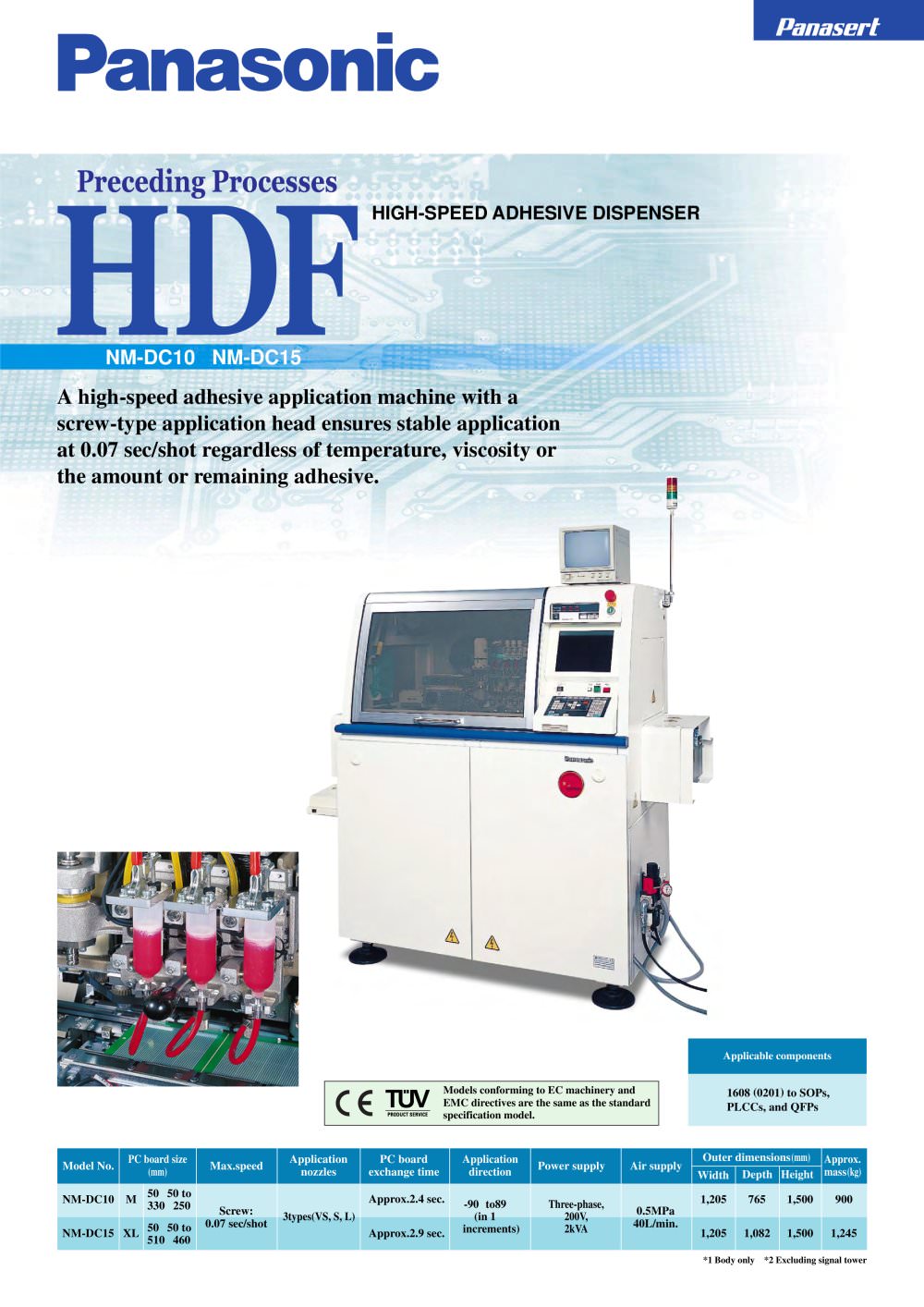

HIGH-SPEED ADHESIVE DISPENSER A high-speed adhesive application machine with a screw-type application head ensures stable application at 0.07 sec/shot regardless of temperature, viscosity or the amount or remaining adhesive. NM-DC10 NM-DC15 Model No. PC board size (mm) Max.speed Application nozzles Application direction Power supply* 1 Outer dimensions(mm) Width Depth Height* 2 Approx. mass(kg) NM-DC10 M 50×50 to 330×250 Screw: 0.07 sec/shot Three-phase, 200V, 2kVA 0.5MPa 40L/min. 1,205 765 1,500 900 Air supply Applicable components *1 Body only *2 Excluding signal tower 1608 (0201) to SOPs, PLCCs, and QFPs PC board exchange time 3types(VS, S, L) -90Kto89K (in 1K increments) Models conforming to EC machinery and EMC directives are the same as the standard specification model. Approx.2.4 sec. NM-DC15 XL 50×50 to 510×460 Approx.2.9 sec. 1,205 1,082 1,500 1,245

HIGH-SPEED ADHESIVE DISPENSER NM-DC10 NM-DC15 Screw-type head ensures stable high-speed application ¦ Changes in specifications and appearance may be made without notice for product improvement. Factory Automation Company Matsushita Electric Industrial Co., Ltd. 1375 kamisukiawara,Showa-cho,Nakakoma-gun, Yamanashi 409-3895,Japan TEL:055-275-6257 http://www.panasonic.co.jp/med/ All data as of April. 1, 2002. The screw-type application head enables high-speed application at 0.07 sec/shot. Application is not affected by the amount of remaining adhesive, so productivity and quality are enhanced as...
