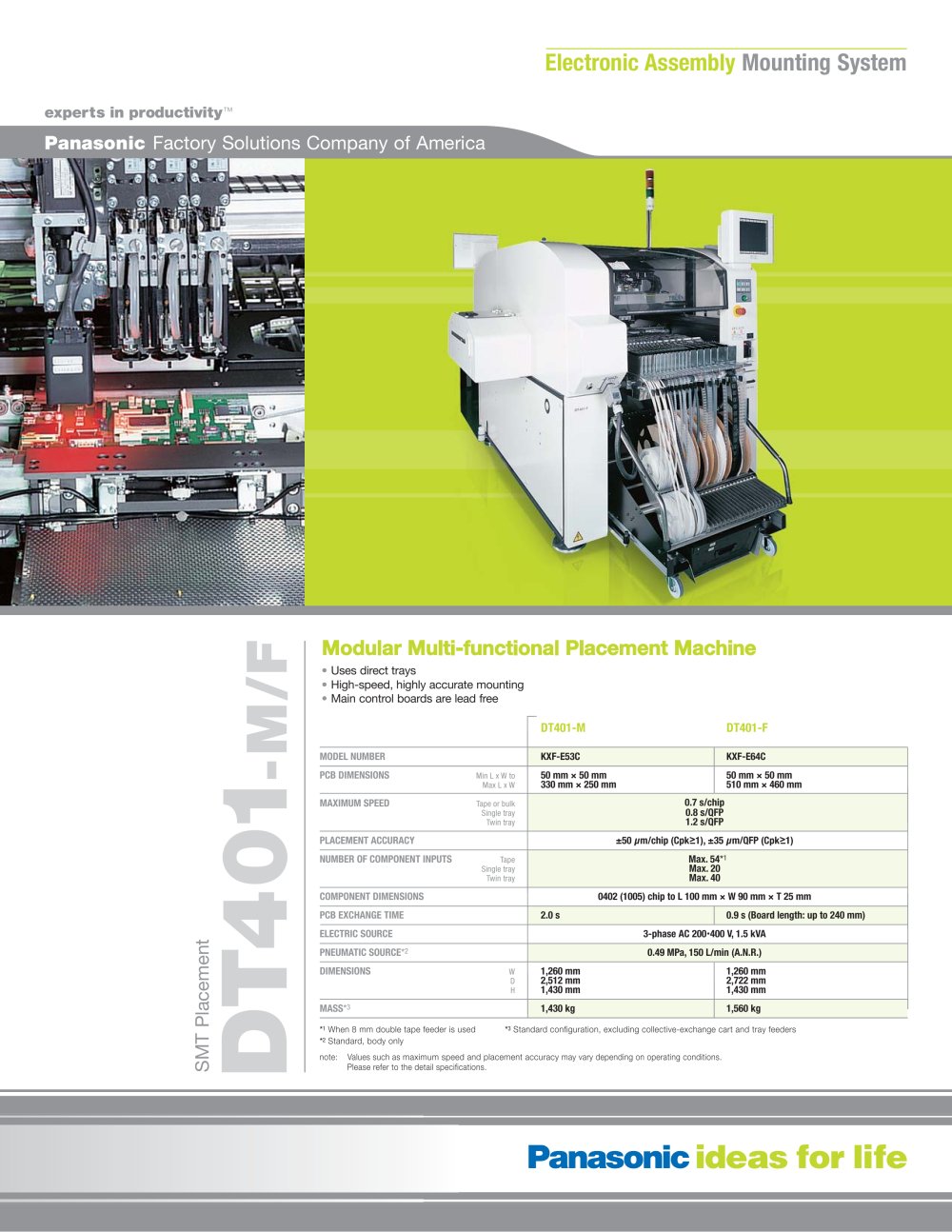

Panasonic DT401 - 1

experts in productivityTM Panasonic Factory Solutions Company of America MODEL NUMBER PCB DIMENSIONS Min L x W to Max L x W MAXIMUM SPEED Tape or bulk Single tray Twin tray PLACEMENT ACCURACY NUMBER OF COMPONENT INPUTS Tape Single tray Twin tray COMPONENT DIMENSIONS PCB EXCHANGE TIME ELECTRIC SOURCE PNEUMATIC SOURCE*2 DIMENSIONS W D H MASS*3 DT401-M DT401-F KXF-E53C KXF-E64C 50 mm × 50 mm 50 mm × 50 mm 330 mm × 250 mm 510 mm × 460 mm 0.7 s/chip 0.8 s/QFP 1.2 s/QFP ±50 ìm/chip (Cpk>1), ±35 ìm/QFP (Cpk>1) Max. 54*1 Max. 20 Max. 40 0402 (1005) chip to L 100 mm × W 90 mm × T 25 mm 2.0 s 0.9 s (Board length: up to 240 mm) 3-phase AC 200•400 V, 1.5 kVA 0.49 MPa, 150 L/min (A.N.R.) 1,260 mm 1,260 mm 2,512 mm 2,722 mm 1,430 mm 1,430 mm 1,430 kg 1,560 kg note: Values such as maximum speed and placement accuracy may vary depending on operating conditions. Please refer to the detail specifications. *1 When 8 mm double tape feeder is used *2 Standard, body only *3 Standard configuration, excluding collective-exchange cart and tray feeders Modular Multi-functional Placement Machine • Uses direct trays • High-speed, highly accurate mounting • Main control boards are lead free SMT Placement Electronic Assembly Mounting System DT401-M/F

Open the catalog to page 1
Panasonic DT401 - 2

Safety Caution: To ensure safety when using this equipment, all work should be performed in accordance with the supplied operating instructions. Thoroughly read your operating instructions manual. Improved Operation Rate Direct pickup The placement heads pick up the tray components directly. This allows a wide variety of odd-shaped components to be mounted at high speed. Tray feed during operation Tray feed can be accomplished easily without stopping production using the replenisher unit which is installed above the tray feeder. Feeder collective-exchange cart Enables the tape feeders to be...

Open the catalog to page 2
