Panasonic BM123-133

Product catalog summary

Overview: The document provides technical specifications and features of the Panasonic BM123 and BM133 modular placement machines, designed for electronic assembly and mounting systems. These machines are optimized for increased productivity and low-cost placement.

Specifications:

PCB Dimensions: Minimum 50 mm x 50 mm, Maximum 330 mm x 250 mm (BM123) and 510 mm x 460 mm (BM133).
Maximum Speed: 0.12 seconds per chip.
Placement Accuracy: Chip 50 µm (Cpk>1), QFP 30 µm (Cpk>1).
Component Inputs: Double tape feeder supports up to 160 inputs.
Component Dimensions: From 0603 chip to 32 mm x 32 mm x 15 mm.
PCB Exchange Time: 4.0 seconds (BM123), 5.0 seconds (BM133).
Electric Source: 3-phase AC 200 V, 3.3 kVA, compatible with 220/380/400/420/480V.
Pneumatic Source: 0.43 MPa, 150 L/min (A.N.R.).
Dimensions: Width 1,950 mm, Depth 1,500 mm (BM123) / 1,710 mm (BM133), Height 1,500 mm.
Mass: 1,700 kg (BM123), 1,800 kg (BM133), with optional batch exchange cart increasing mass to 2,100 kg and 2,200 kg respectively.

Features:

Productivity: The placement head with a built-in component recognition camera enhances productivity to 30,000 cph. The eight-nozzle independent vertical drive system improves component pick-up and placement accuracy.
Component Versatility: Capable of mounting components from 0603 to 32 x 32 mm QFP and BGA chips. Optional features include a chip thickness sensor and motor-driven tape feeder.
Advanced Operation: Supports changeover with automatic teach functions, displays in multiple languages, and features high-speed data transmission via LAN.
Uninterrupted Operation: Supports up to 160 tape feeders and optional batch exchange cart for reduced changeover time. Tape splicing is available for continuous operation.

Safety and Maintenance: Emphasizes the importance of following operating instructions for safety. Simplified maintenance with fewer adjustments needed due to efficient design features.

Contact Information: Panasonic Factory Solutions Company of America, contact via phone at 1-847-495-6100 or email at [email protected].

Catalog excerpts

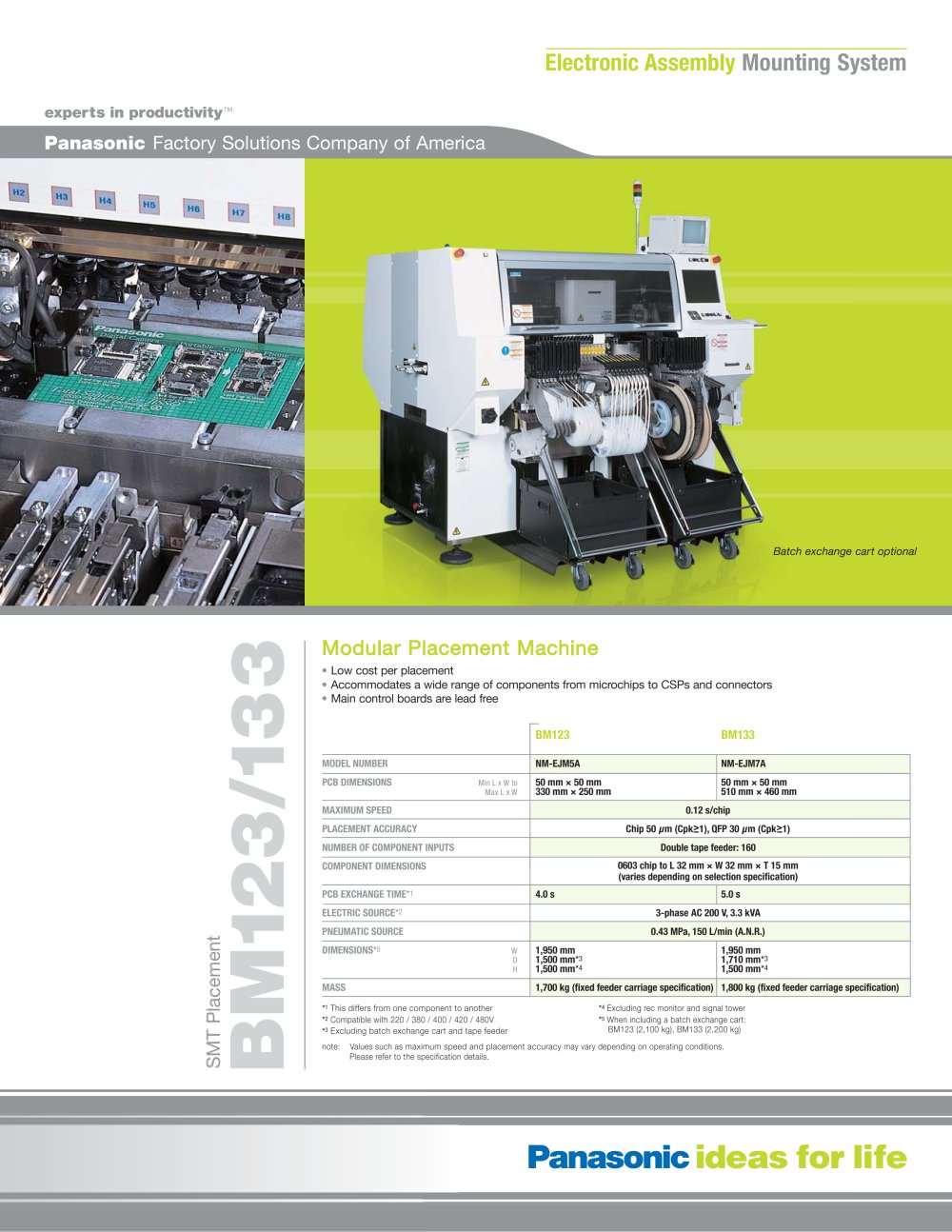

MODEL NUMBERPCB DIMENSIONS NM-EJM5A NM-EJM7A 50 mm ՗ 50 mm 50 mm 50 mm 330 mm ח 250 mm 510 mm 460 mm 0.12 s/chip Chip 50 > Min L x W to Max L x W MAXIMUM SPEED PLACEMENT ACCURACYNUMBER OF COMPONENT INPUTS ׵ m (Cpk>1), QFP 30 m (Cpk>1) Double tape feeder: 160 0603 chip to L 32 mm ՗ W 32 mm T 15 mm (varies depending on selection specification)4.0 s 5.0 s 3-phase AC 200 V, 3.3 kVA 0.43 MPa, 150 L/min (A.N.R.) 1,950 mm 1,950 mm 1,500 mm COMPONENT DIMENSIONSPCB EXCHANGE TIME * > 1 ELECTRIC SOURCE * > 2 * PNEUMATIC SOURCEDIMENSIONS * > 5 W D 3 4 1,710 mm * > 3 H 1,500 mm * 1,500 mm * > 4 MASS 1,700 kg (fixed feeder carriage specification) 1,800 kg (fixed feeder carriage specification) > * 1 This differs from one component to another * 4 Excluding rec monitor and signal tower * 2 Compatible with 220 / 380 / 400 / 420 / 480V * 5 When including a batch exchange cart: BM123 (2,100 kg), BM133 (2,200 kg) * 3 Excluding batch exchange cart and tape feeder note: Values such as maximum speed and placement accuracy may vary depending on operating conditions. Please refer to the specification details. SMT Placement BM123/133 size="-5">
