- Model 2470-V Wedge Bonder
Model 2470-V Wedge Bonder
1 / 2 PagesView full catalog
Model 2470-V Wedge Bonder
Product catalog summary
Overview
Palomar Technologies offers advanced wedge bonding solutions with both new and refurbished models. The Model 2470-V and 3470-II are designed for precise and efficient bonding in demanding production environments.
Specifications
Key Features
Advanced Features
Conclusion
Palomar Technologies' wedge bonding solutions are designed to lower the cost of precision while providing robust and flexible options for various production needs.
Palomar Technologies offers advanced wedge bonding solutions with both new and refurbished models. The Model 2470-V and 3470-II are designed for precise and efficient bonding in demanding production environments.
Specifications
- Model 2470-V: Built on a proven platform, suitable for rigorous applications worldwide.
- Model 3470-II: Features a larger work area for accommodating large assemblies or multiple setups.
Key Features
- Precise loop and wire length control to reduce rework and test iterations.
- Dual-mode ultrasonics with over 100 programmable power levels for various bonding surfaces.
- Expansive X-Y robotic positioners for large work areas.
- Large wire spool and optional de-spooler for reduced downtime.
- Mega-program capability for storing data for up to 8000 wires.
- Host Data Option for software integration with external CIM computers.
- On-screen menus for guided setup and operation.
Advanced Features
- Extensive programmable bonding functions including bond locations, force levels, and ultrasonic power.
- Quick tool change and centering software for faster setup.
- Self-diagnostic software for calibration and troubleshooting.
- Optional software routines for enhanced functionality, including SPC Tracking and CAD Upload/Download.
- Advanced Cognex 5400 Series vision system for high-precision pattern recognition.
- Look-down camera with auto focus and programmable light intensity for diverse product accommodation.
Conclusion
Palomar Technologies' wedge bonding solutions are designed to lower the cost of precision while providing robust and flexible options for various production needs.
See more

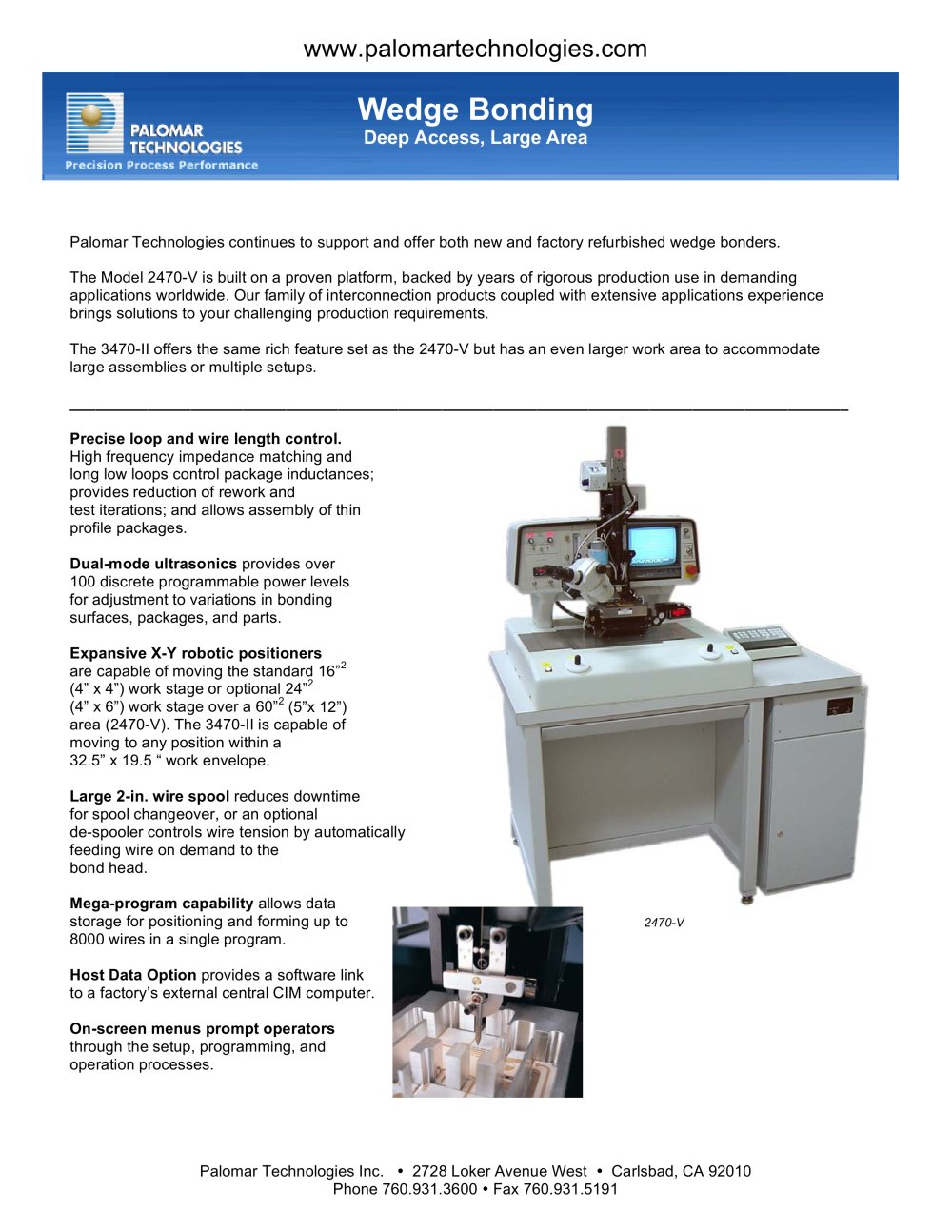

Catalog excerpts
Extensive programmable bonding functions include bond locations, height, individual force levels, ultrasonic power, direction, duration, loop shape, and tail length (for first and second bonds to accommodate varying surfaces). Quick tool change and centering software allows faster setup, changeovers in wire size and threading. Self-diagnostic software assists in calibration and troubleshooting. Optional software routines include Automatic Program Documentation, Orthogonal Wiring, Proportional Referencing, Rework, Set Layout, Statistical Process Control (SPC) Tracking, Light Tower Indicator, and...
