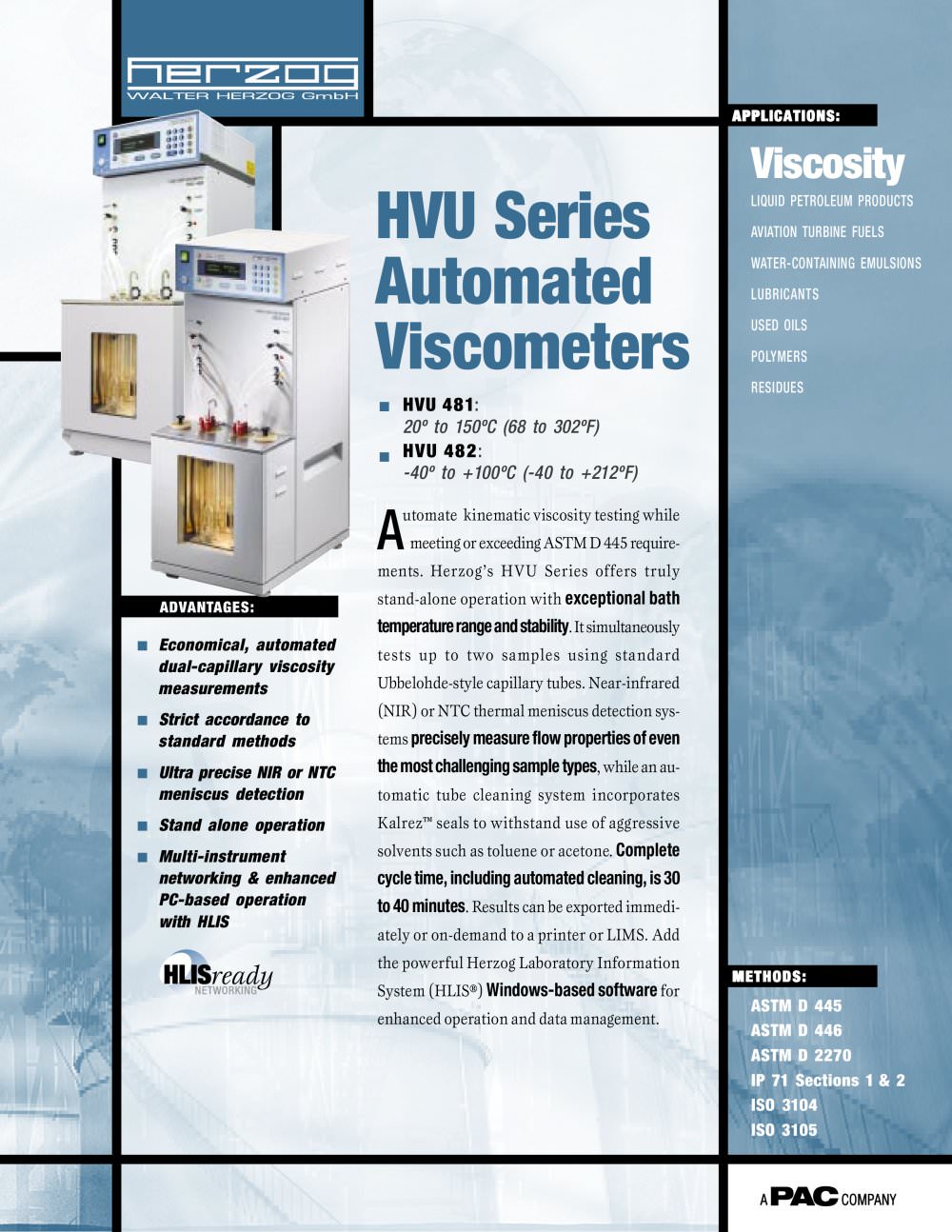

A COMPANY APPLICATIONS: METHODS: ASTM D 445 ASTM D 446 ASTM D 2270 IP 71 Sections 1 & 2 ISO 3104 ISO 3105 Viscosity LIQUID PETROLEUM PRODUCTS AVIATION TURBINE FUELS WATER-CONTAINING EMULSIONS LUBRICANTS USED OILS POLYMERS RESIDUES Automate kinematic viscosity testing while meeting or exceeding ASTM D 445 requirements. Herzog’s HVU Series offers truly stand-alone operation with exceptional bath temperature range and stability. It simultaneously tests up to two samples using standard Ubbelohde-style capillary tubes. Near-infrared (NIR) or NTC thermal meniscus detection systems precisely measure flow properties of even the most challenging sample types, while an automatic tube cleaning system incorporates Kalrez™ seals to withstand use of aggressive solvents such as toluene or acetone. Complete cycle time, including automated cleaning, is 30 to 40 minutes. Results can be exported immediately or on-demand to a printer or LIMS. Add the powerful Herzog Laboratory Information System (HLIS®) Windows-based software for enhanced operation and data management. HVU Series Automated Viscometers ADVANTAGES: Economical, automated dual-capillary viscosity measurements Strict accordance to standard methods Ultra precise NIR or NTC meniscus detection Stand alone operation Multi-instrument networking & enhanced PC-based operation with HLIS HVU 481: 20º to 150ºC (68 to 302ºF) HVU 482: -40º to +100ºC (-40 to +212ºF)

MODEL HVU 481 HERZOG HVU SERIES VISCOMETERS MODEL HVU 482 > Temperature Range: -40 to +100ºC (-40 to +212ºF) > Ideal for low temperature aviation turbine fuel and for high and low temperature lubricant testing > Stand alone operation > Performs two tests simultaneously > Automatic, multi-solvent cleaning system; withstands aggressive solvents > PC-based instrument control and multi-instrument networking capabilities using HLIS® Get definitive data with true viscosity measurements to -40ºC… don’t base your product’s quality on assumption! Low temperature performance calculated by viscosity index...

QUICK, ULTRA-PRECISE ANALYSES Initiate tests with only a few clicks and keystrokes Ubbelohde capillary tubes protect sample from external ambient conditions until 2 determinations are made within user-set repeatability limits Dynamic/static sample tempering quickly achieves equilibrium sample temperature Highly precise near infrared (NIR) 2-point meniscus detection unaffected by surface tension effects, sample conductivity, or water content Programmable, multi-solvent cleaning cycles clean, rinse and dry tubes according to user preferences Results immediately display on local digital readout...

FOR ADDITIONAL INFORMATION: AMERICAS: PAC — PETROLEUM ANALYZER COMPANY L.P. 3234 Pasadena Freeway, Pasadena, Texas 77503, USA Phone: 800.444.TEST [713.590.7260] | Fax: 713.590.7266 [email protected] | www.paclp.com EUROPE, ASIA, AFRICA, MIDDLE EAST, AUSTRALIA: WALTER HERZOG GmbH Badstrasse 3-5, P.O. Box 1241 D-97912 Lauda-Königshofen - GERMANY Phone: +49 9343.6400 | Fax: +49 9343.640.101 [email protected] YOUR LOCAL REPRESENTATIVE: SPECIFICATIONS Ordering Information HVU 481 Automated Viscosity Analyzer: 20 to 150ºC (68 to 302ºF) testing range Enables stand-alone, simultaneous testing of...
