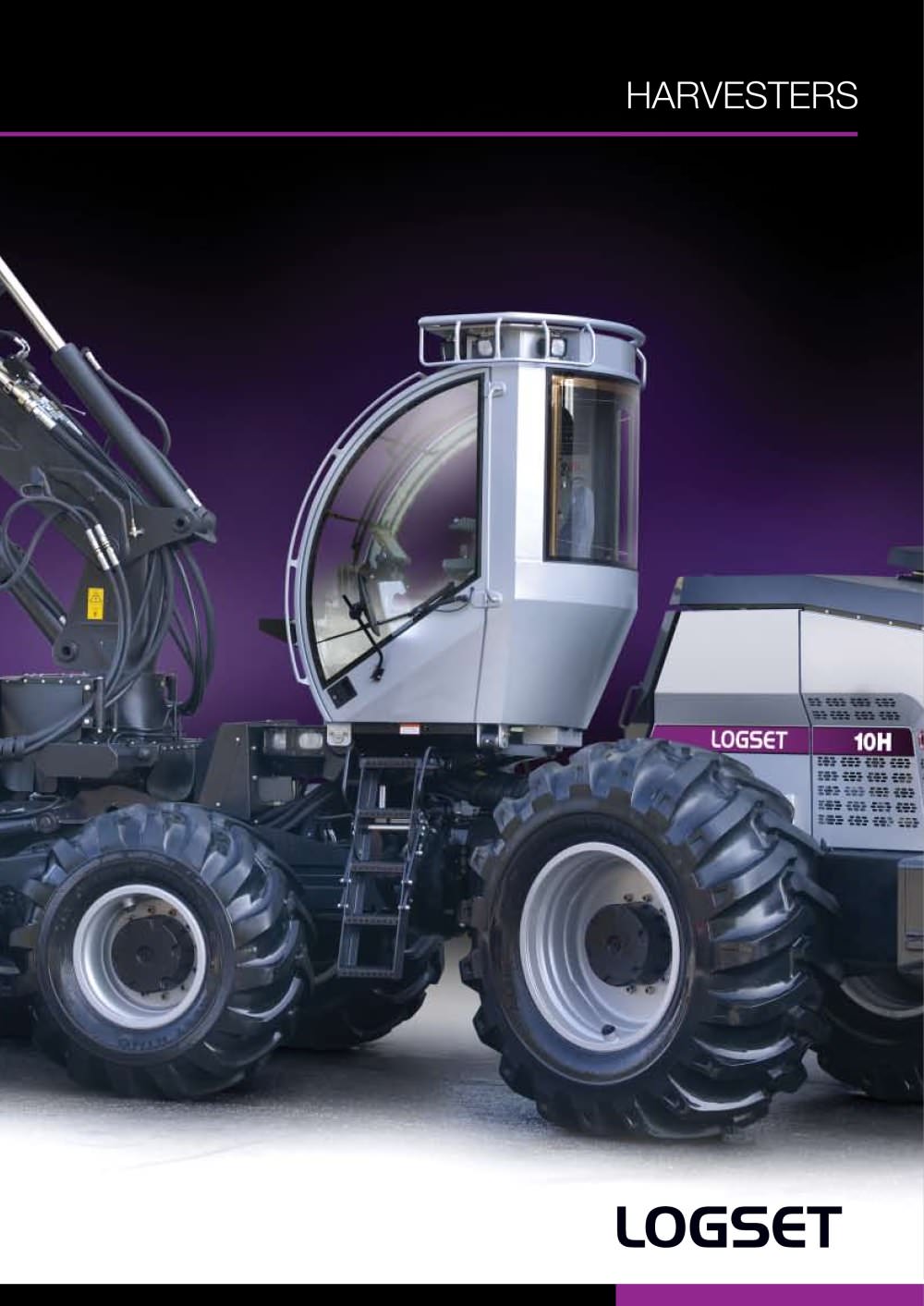

LOGSET HARVESTERS & HEADS
16Pages

2 LOGSET HARVESTERS – DESIGNED FOR PRODUCTIVITY MODEL RANGE: 5H – Compact thinning harvester 6 8H – Robust harvester for final felling 8 10H – Ultimate clear-cut harvester for the heaviest timber 10 Logset harvester heads 12

3 PRODUCTIVITY The Logset range includes three different harvester models. These harvesters can be equipped with adequate harvester heads to fulfill customer needs. The harvester head range consists of models from small thinning heads to large heads for heavy final felling. All Logset harvesters have strong Loglift cranes with alternative reaches and reliable NAF-bogies. Low-emission Sisu engines, with electronically controlled fuel injection, optimize the output according to the load. The engine, combined with the efficient hydraulic system, creates exceptionally low fuel consumption. The...

4 Measuring device either Motomit or Dasa CAN-BUS minimizes the amount of electric wires and makes the electrical system simpler, more reliable and easier to overhaul. Strong NAF-bogies and heavy duty hydraulic frame lock provide a very stable base for the crane and the harvester head. Strong Loglift parallel cranes Broad selection of Logset harvester heads.

5 The Logset machines have been designed for the comfort of the operator with a spacious cabin, unrestricted view, a modern operation control system, operator-specific settings, excellent sound insulation and automatic air conditioning. The Logset forest machines are tailored according to the customer’s needs and preferences, and there is a wide variety of available options to choose from. Electronically controlled hydrostatic-mechanical transmission. The hydraulic oil tank and the fuel tank can be tilted aside for easy access to the components underneath. Powerful and reliable Sisu engines...

7 The Logset 5H is a compact thinning harvester that also easily manages smaller final fellings. The front bogie together with the big rear wheels increase flotation on soft ground. The crane reach is up to 11 metres and makes it possible to reach into the trees without leaving the access road. Logset 5H is available with either a nimble L181V crane or a stronger L220V crane. It is possible to tailor the 5H to every customer’s need with the right Logset harvester head and a wide range of other options.

8 LOGSET 8H – POWER FOR ALL CONDITIONS The Logset 8H is a robust harvester for final fellings, with power and stability for the toughest conditions. The 8H enjoys a solid reputation for high productivity and cost efficiency, and it offers the same service-friendly solutions as all Logset harvesters. Diverse head options give the Logset 8H a competitive edge in any forest.

11 Logset 10H is the ultimate clear-cut harvester for the heaviest timber in the most demanding conditions. The stability of the base machine and the strongest crane on the market are big advantages when cutting heavy trees. The capacity of the double work pumps together with the high torque of the engine make it possible to work using full capacity of both the harvester head and crane simultaneously. When real power is needed, Logset 10H is the right choice.

Feeding and knives are controlled by proportional pressure valves, which optimize results and minimize feed damage. Shock absorbing reaction rod reduces the stress on the harvester head Geometry of four movable knives ensures high quality delimbing for any size of trees. Four powerful hydraulic motors create high feed force. Extra strong tilt frame with wide tilt angle. SuperCut® saw unit: automatic chain tensioner, proportional chain lubrication and built-in sensors. Colour marking and stump spray device (optional) Three feeding rollers to achieve optimal grip. 6L 12 Logset improves the...

13 The 8L is the head used for big clear-cuts and heavy trees. 8L 7L has different options which ensure that the feeding always gets a maximum grip. 7L 4M 5L The 4M moves smoothly between thin trees due to its narrow design. It is especially suited for first thinning. The 5L is a high productive head in versatile conditions. The 7X and 8X versions are also available for track based machines. design, however, makes it suitable for thinnings as well. The 5L and 6L both contain the latest technology, such as proportional control of knives and feedings. The log is measured by sensors both on...

Heads 4M 5L 6L 7L/7X 8L/8X DIMENSIONS Width, head open mm 1145 1350 1400 1550 1740 Width, head closed mm 1080 1200 1250 1250 1300 Height to top knife mm 1200 1140 1280 2000 1600 Height with rotator & link mm 1700 1700 1900 2230 2150 Weight with rotator and link kg 700 1000 1100 1300/1400 1300 FELLING/CUTTING Max felling/cutting diameter mm 440 540 650 650 750 Saw bar mm 540 640 750 750 820 Saw unit SuperCut SuperCut SuperCut SuperCut SuperCut FEEDING AND DELIMBING* Hydraulic motors, frame cm³ 500 250/315 250/315 – 315/400 Hydraulic motors, feeding arms cm³ 315 400/500 500/630 630/800...

Oy Logset Ab is a Finnish forest machine manufacturer located near Vaasa. The company was established in 1992. Logset is part of the PiloMac which includes Junttan Oy, one of the leading piling machinery manufacturer in the world. The Logset machine range contains five forwarders, three models of harvesters and seven different harvester heads. Logset machines are working in more than 20 different countries. Logset´s high standards of customer service is founded on its skilled and experienced team of employees. Logset´s distributor network covers 15 different countries. After-sales services...
