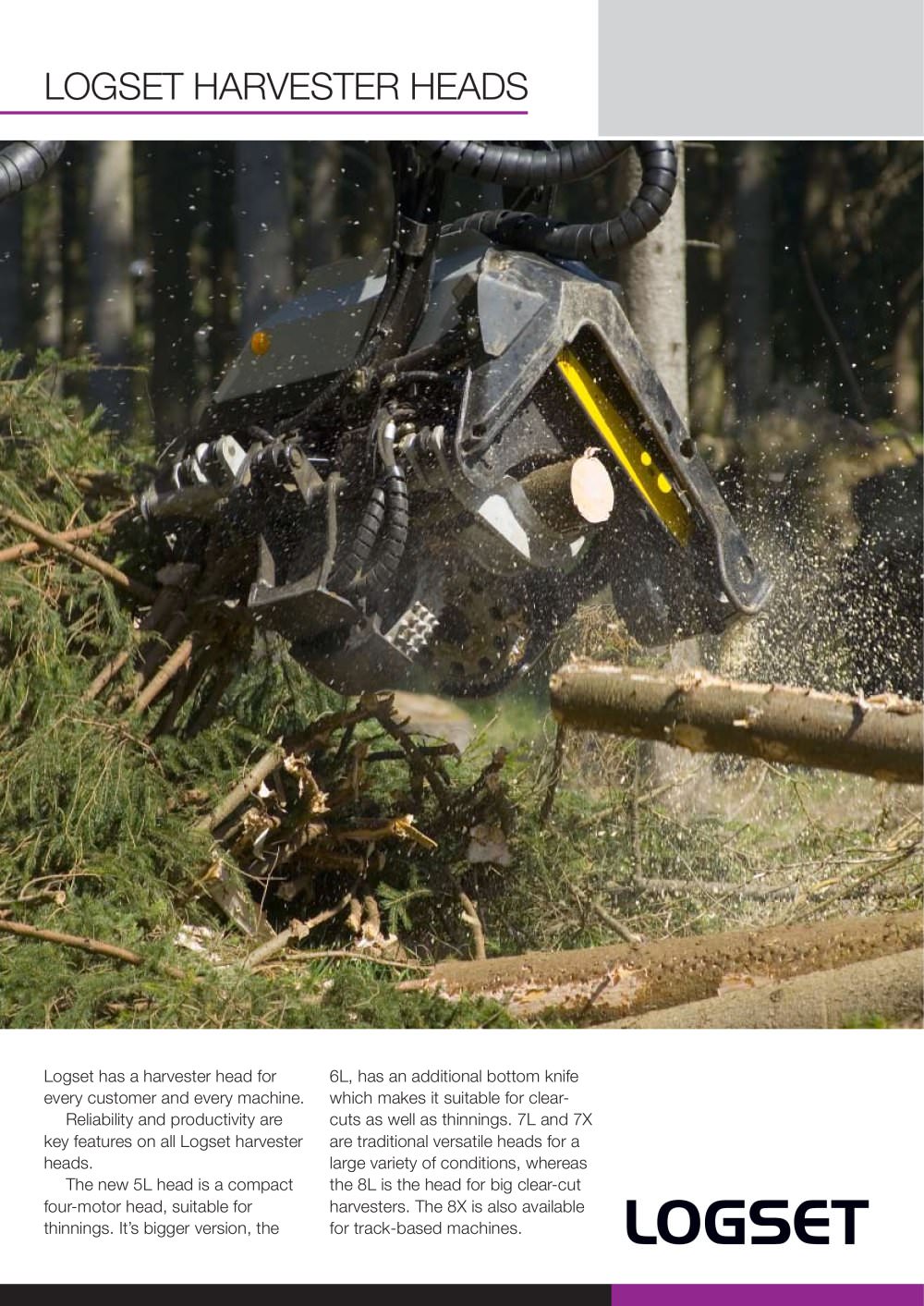

Logset has a harvester head for every customer and every machine. Reliability and productivity are key features on all Logset harvester heads. The new 5L head is a compact four-motor head, suitable for thinnings. It’s bigger version, the LOGSET HARVESTER HEADS 6L, has an additional bottom knife which makes it suitable for clearcuts as well as thinnings. 7L and 7X are traditional versatile heads for a large variety of conditions, whereas the 8L is the head for big clear-cut harvesters. The 8X is also available for track-based machines.

Open the catalog to page 1

Hännisentie 2, 66530 Koivulahti, Finland Tel. +358 10 286 3200, Fax +358 6 210 3216 www.logset.com TECHNICAL DATA 5L 6L 7L/7X 8L 8X DIMENSIONS Width, head open mm 1350 1400 1550 1740 1740 Width, head closed mm 1200 1250 1250 1300 1300 Height to top knife mm 1140 1280 2000 1600 1750 Height with rotator & link mm 1700 1900 2230 2150 2280 Weight with rotator and link kg 1000 1100 1300/ 1400 1300 1500 FELLING/CUTTING Max felling/cutting diameter mm 540 650 650 750 750 Saw bar mm 640 750 750 820 820 Saw unit Super- Cut Super- Cut Super- Cut Super- Cut Super- Cut FEEDING AND DELIMBING* Hydraulic...
