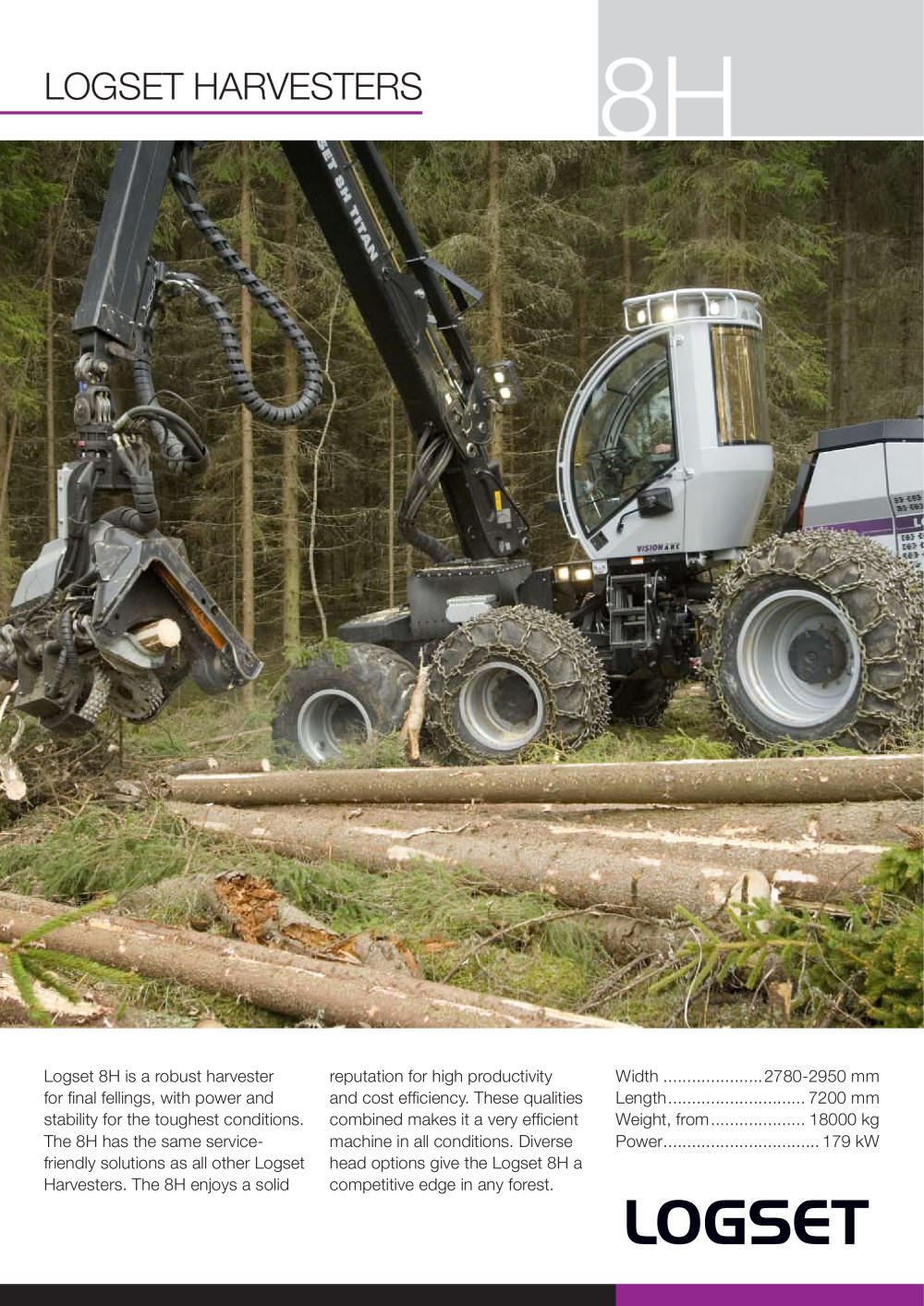

HARVESTER 8H

Product catalog summary

Overview
The Logset 8H is a powerful and stable harvester designed for final fellings, known for its high productivity and cost efficiency. It is equipped with service-friendly solutions similar to other Logset Harvesters and offers diverse head options for competitive performance in various forest conditions.

Specifications

Dimensions: Width: 2780-2950 mm, Length: 7200 mm
Weight: Starting from 18000 kg
Power: 179 kW

Technical Data Comparison

Weight: 8H model starts from 18000 kg
Dimensions: Length: 7200 mm, Width: 2780-2950 mm, Height: 3700 mm, Ground clearance: 630 mm
Engine: Sisu 74 CTA, Power: 179 kW, Torque: 1000 Nm, Fuel tank: 550 l
Power Transmission: Hydrostatic-mechanic, Tractive effort: 169 kN
Tyres: Front: 600/55-26.5, 700/50-26.5; Rear: 600/55-26.5, 700/55-34
Hydraulic System: Flow at 1000 r/min: 190 l/min, Oil tank: 200 l
Crane Options: Loglift L220V, Lifting capacity: 188 kNm, Reach: 8.3/10/11 m
Harvester Head Options: 6L, 7L, 8L

Contact Information
Hännisentie 2, 66530 Koivulahti, Finland
Tel. +358 10 286 3200, Fax +358 6 210 3216
Website: www.logset.com

Note: Specifications are subject to change without prior notice. Images and diagrams may not depict standard versions.

Catalog excerpts

Hännisentie 2, 66530 Koivulahti, Finland Tel. +358 10 286 3200, Fax +358 6 210 3216 www.logset.com 12.0 A C D TECHNICAL DATA 8H 5H 8H 10H WEIGHT Own weight from, kg 14000 18000 22000 DIMENSIONS Length A 6445 7200 7700 Width B 2460-2760 2780-2950 2990-3070 Height C 3660 3700 3850 Ground clearance D 575 630 730 ENGINE Type Sisu 49 CWA Sisu 74 CTA Sisu 84 CTA Power, kW 125 179 220 Torque, Nm 700 1000 1300 Fuel tank, l 550 550 800 POWER TRANSMISSION Type Hydrostaticmechanic Hydrostaticmechanic Hydrostaticmechanic Tractive effort, kN 135 169 190 TYRES Front 600/50-22.5 700/45-22.5 600/55-26.5 700/50-26.5...
