HARVESTER 10H
Product catalog summary
Overview

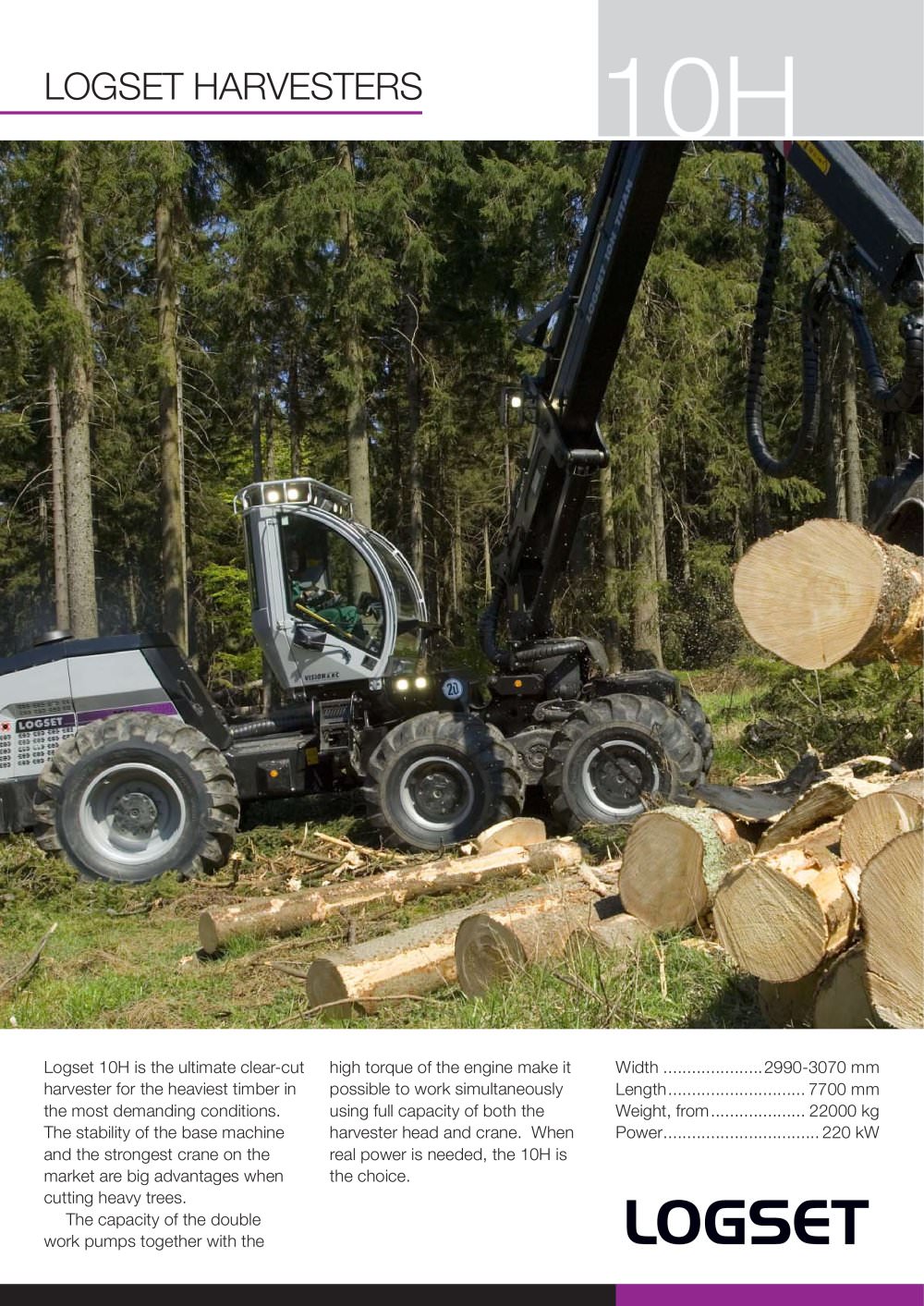

The Logset 10H is a high-performance harvester designed for clear-cutting heavy timber in challenging conditions. It boasts exceptional stability and the strongest crane available, making it ideal for cutting large trees. The machine's dual work pumps and high-torque engine allow simultaneous operation of both the harvester head and crane at full capacity.
Specifications
Technical Data Comparison
Additional Information
The document notes that specifications are subject to change without notice and that images may not depict standard versions of the machines.
The Logset 10H is a high-performance harvester designed for clear-cutting heavy timber in challenging conditions. It boasts exceptional stability and the strongest crane available, making it ideal for cutting large trees. The machine's dual work pumps and high-torque engine allow simultaneous operation of both the harvester head and crane at full capacity.
Specifications
- Dimensions: Width: 2990-3070 mm, Length: 7700 mm
- Weight: Starting from 22000 kg
- Power: 220 kW
Technical Data Comparison
- Weight: 10H: 22000 kg, compared to 5H: 14000 kg and 8H: 18000 kg
- Dimensions: Length: 10H: 7700 mm, Width: 10H: 2990-3070 mm, Height: 10H: 3850 mm
- Engine: Type: Sisu 84 CTA, Power: 220 kW, Torque: 1300 Nm
- Power Transmission: Hydrostatic-mechanic, Tractive effort: 190 kN
- Tyres: Front: 750/55-26.5, Rear: 700/70-34
- Hydraulic System: Flow: 190+140 l/min, Oil tank: 300 l
- Crane Options: Loglift L280V, Lifting capacity: 280 kNm, Reach: 11 m
- Harvester Head Options: 8L, 8X
Additional Information
The document notes that specifications are subject to change without notice and that images may not depict standard versions of the machines.
See more
Catalog excerpts
Hännisentie 2, 66530 Koivulahti, Finland Tel. +358 10 286 3200, Fax +358 6 210 3216 www.logset.com 12.0 A C D TECHNICAL DATA 10H 5H 8H 10H WEIGHT Own weight from, kg 14000 18000 22000 DIMENSIONS Length A 6445 7200 7700 Width B 2460-2760 2780-2950 2990-3070 Height C 3660 3700 3850 Ground clearance D 575 630 730 ENGINE Type Sisu 49 CWA Sisu 74 CTA Sisu 84 CTA Power, kW 125 179 220 Torque, Nm 700 1000 1300 Fuel tank, l 550 550 800 POWER TRANSMISSION Type Hydrostaticmechanic Hydrostaticmechanic Hydrostaticmechanic Tractive effort, kN 135 169 190 TYRES Front 600/50-22.5 700/45-22.5 600/55-26.5 700/50-26.5...
