Overview

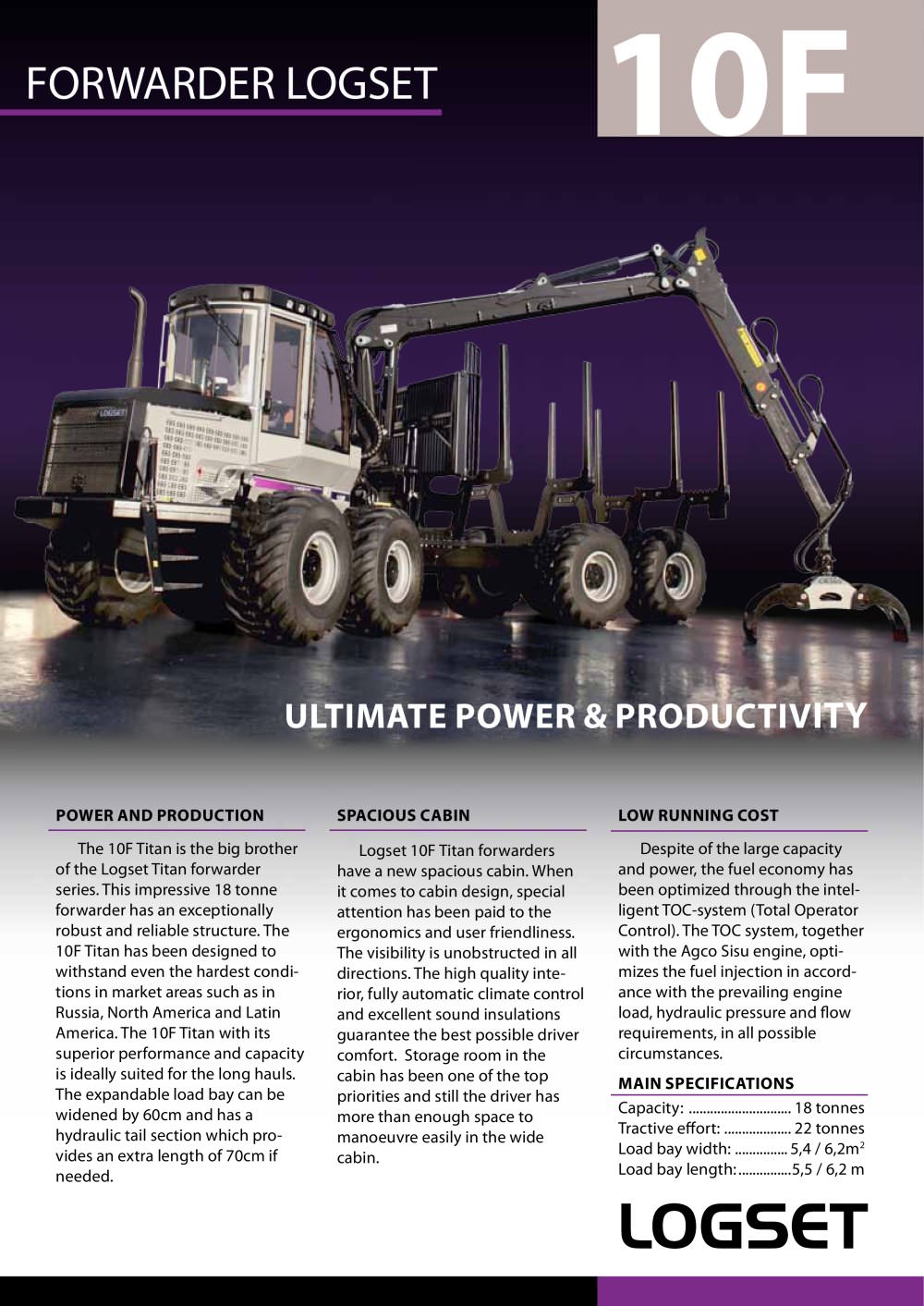

The 10F Titan is a robust and reliable forwarder in the Logset Titan series, designed for challenging conditions in regions like Russia, North America, and Latin America. It is ideal for long hauls due to its superior performance and capacity.

Main Specifications

• Capacity: 18 tonnes
• Tractive effort: 22 tonnes
• Load bay width: 5.4 / 6.2 m²
• Load bay length: 5.5 / 6.2 m

Spacious Cabin
The cabin is designed with ergonomics and user-friendliness in mind, offering unobstructed visibility, high-quality interior, automatic climate control, and excellent sound insulation for driver comfort. Ample storage space is provided without compromising maneuverability.

Low Running Cost
The 10F Titan features an optimized fuel economy through the intelligent TOC-system, which adjusts fuel injection based on engine load, hydraulic pressure, and flow requirements, in conjunction with the Agco Sisu engine.

Technical Data

• Weight: Own weight from 22,000 kg
• Engine: Sisu 74 CTA, Power 179 kW, Torque 1000 Nm
• Power Transmission: Hydrostatic-mechanic, Tractive effort 220 kN
• Tyres: Standard 750/55-26.5, Optional 800/40-26.5
• Hydraulic System: Flow/1000 r/min. 180 l/min, Oil tank 175 l
• Cranes: Loglift 111, Reach 7.2 - 9.2 m

Additional Information
The 10F Titan's load bay can be expanded by 60 cm in width and has a hydraulic tail section for an additional 70 cm in length if needed. The document notes that specifications are subject to change without prior notice.
