FORWARDER 18 tonnes

Product catalog summary

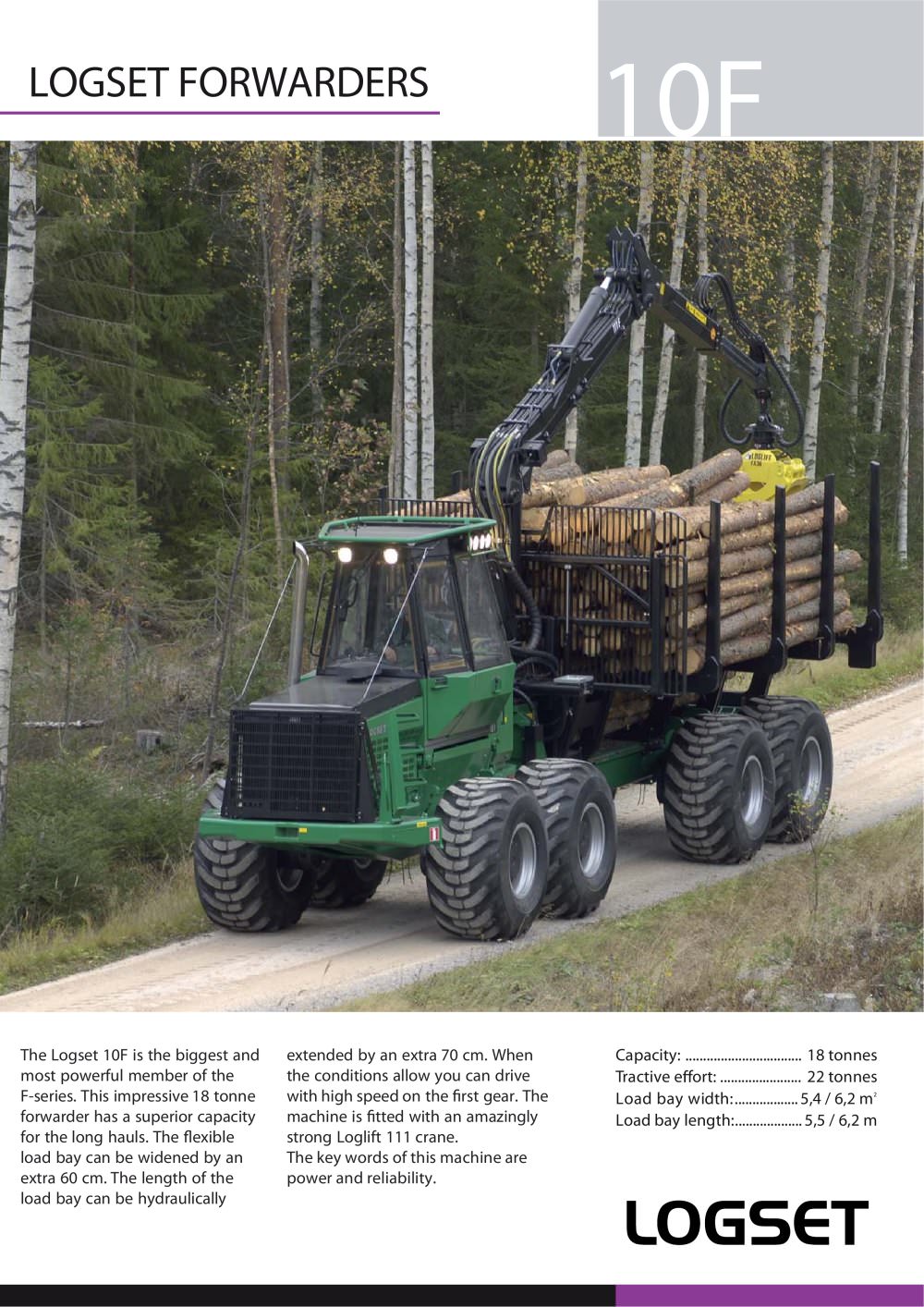

Overview: The Logset 10F is the largest and most powerful forwarder in the F-series, designed for high-capacity and long-haul operations. It boasts a load capacity of 18 tonnes and a tractive effort of 22 tonnes, making it ideal for demanding forestry tasks.

Specifications:

Capacity: 18 tonnes
Tractive Effort: 22 tonnes
Load Bay Dimensions: Width 5.4/6.2 m, Length 5.5/6.2 m
Engine: Sisu 74 CTA with 179 kW power and 1000 Nm torque
Power Transmission: Hydrostatic-mechanic
Tyres: Standard 750/55–26.5, Optional 800/40–26.5
Hydraulic System: Flow of 180 l/min at 1000 r/min, Oil tank capacity of 170 l
Crane: Loglift 111 with a reach of 7.2–9.2 m

Features: The Logset 10F features a flexible load bay that can be widened by 60 cm and extended by 70 cm hydraulically. It is equipped with a robust Loglift 111 crane, emphasizing power and reliability. The machine is capable of high-speed operation in the first gear under suitable conditions.

Technical Data Comparison: The document provides a comparison of the 10F with other models in the F-series (4F, 5F, 6F, 8F) across various parameters such as weight, load area, dimensions, engine specifications, and hydraulic system.

Contact Information: Oy Logset Ab, Hännisentie 2, 66530 Koivulahti, Finland. Tel: +358 10 286 3200, Fax: +358 6 210 3216, Website: www.logset.com

Disclaimer: The company reserves the right to make changes without prior notice, and images may not depict standard versions of the machines.
