FORWARDER 13 tons

Product catalog summary

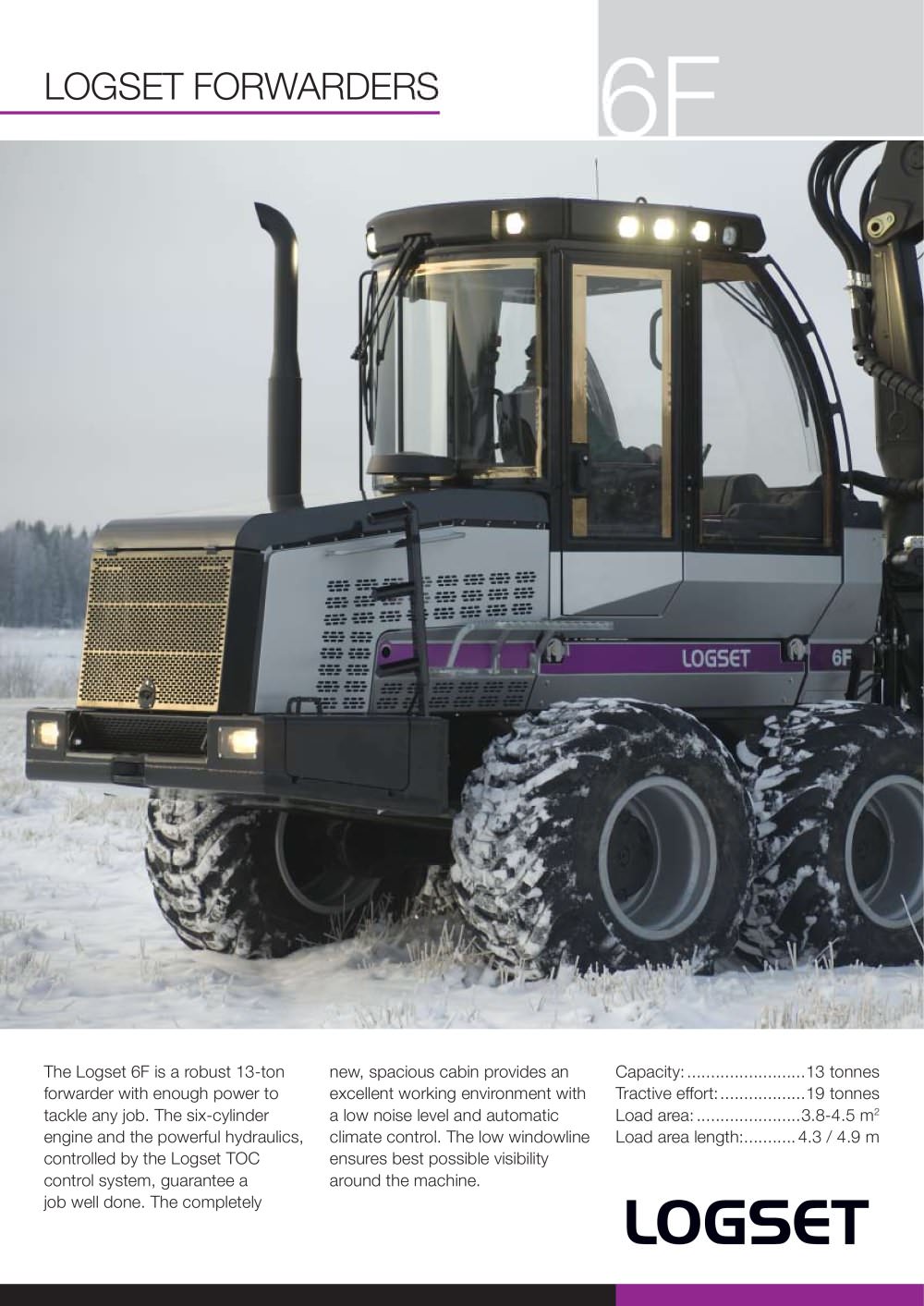

Overview: The Logset 6F is a powerful 13-ton forwarder designed for robust forestry operations. It features a six-cylinder engine and advanced hydraulics managed by the Logset TOC control system, ensuring efficient performance. The forwarder is equipped with a newly designed, spacious cabin that offers a comfortable working environment with low noise levels and automatic climate control. The low window line enhances visibility around the machine.

Specifications:

Capacity: 13 tonnes
Tractive Effort: 19 tonnes
Load Area: 3.8-4.5 m²
Load Area Length: 4.3 / 4.9 m

Technical Data:

Weight: Own weight from 16,000 kg, Capacity 13,000 kg
Dimensions: Length 9658/10258 mm, Width 2780/3040 mm, Height 3818 mm, Ground Clearance 660 mm
Engine: Sisu 66 CTA, Power 143 kW, Torque 900 Nm, Fuel Tank 205 l
Power Transmission: Hydrostatic-mechanic, Tractive Effort 190 kN
Tyres: Standard 700/50-26.5, Optional 600/55-26.5, 800/40-26.5
Hydraulic System: Flow 147 l/min, Oil Tank 175 l
Cranes: Loglift 91, Reach 7.9-10 m

Additional Information: The document notes that specifications are subject to change without prior notice and that images may not depict standard versions of the machines.

Catalog excerpts

Hännisentie 2, 66530 Koivulahti, Finland Tel. +358 10 286 3200, Fax +358 6 210 3216 www.logset.com 5F 6F 10F WEIGHT Own weight from, kg 14500 16000 22000 Capacity, kg 11000 13000 18000 LOAD AREA Load area, m2 3.6/4.2 3.8/ 5 5.4/6.2 Load area length, m 4.3 4.3/4.9 5.5-6.2 DIMENSIONS Length A 9121 9658/ 10258 10800 Width B 2620/ 2810 2780/ 3040 3040/ 3070 Height C 3732 3818 4000 Ground clearance D 650 660 730 ENGINE Type Sisu 49 CWA Sisu 66 CTA Sisu 74 CTA Power, kW 125 143 179 Torque, Nm 700 900 1000 Fuel tank, l 205 205 165 POWER TRANSMISSION Type Hydrostaticmechanic Hydrostaticmechanic Hydrostaticmechanic...
