1. Catalogs
  2. Oy Logset Ab
  3. FORWARDER 10 tons
video corpo

FORWARDER 10 tons

FORWARDER 10 tons

FORWARDER 10 tons

Product catalog summary

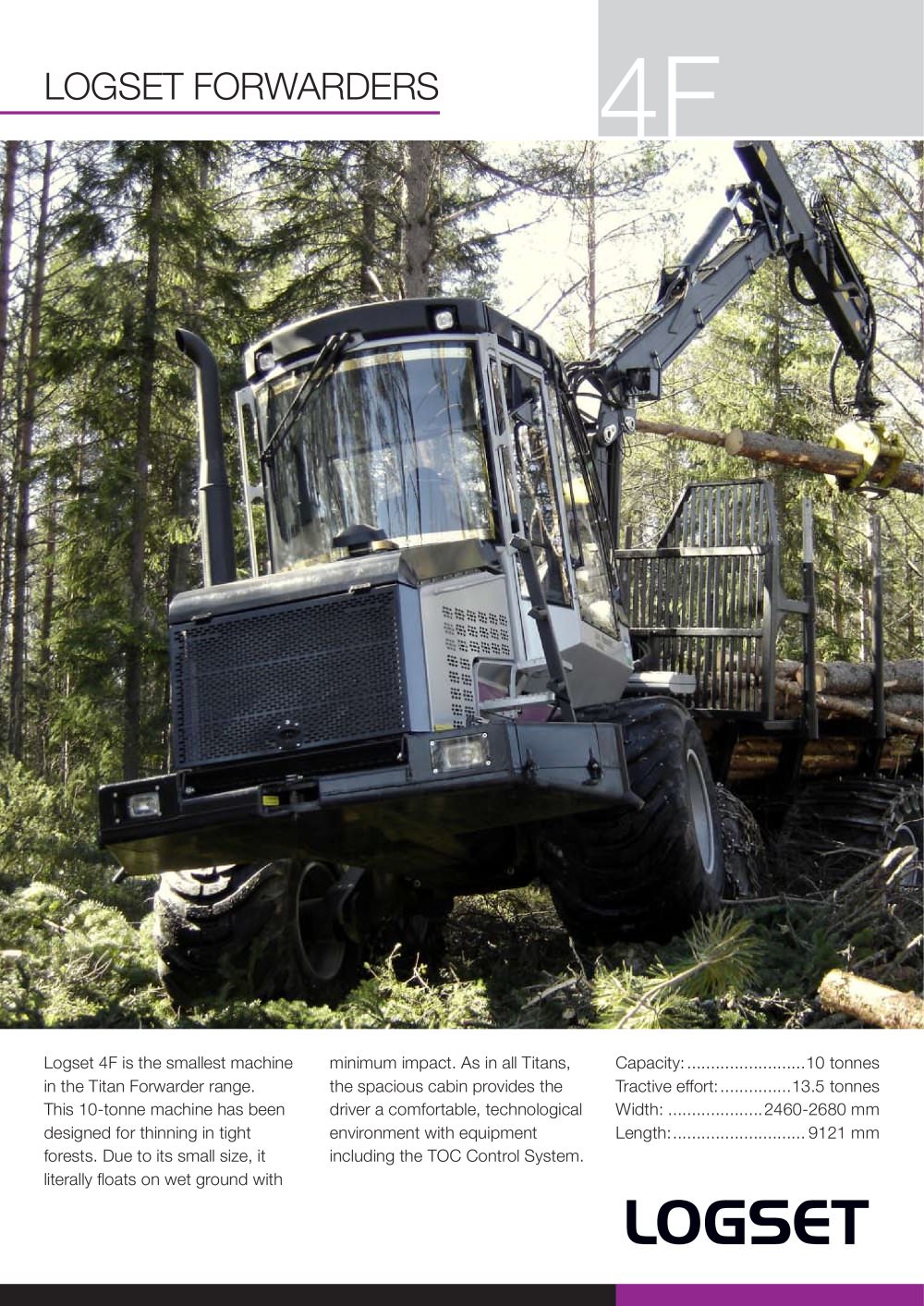

Overview: The Logset 4F is the smallest machine in the Titan Forwarder range, designed specifically for thinning operations in tight forest environments. It is a 10-tonne machine that offers minimal ground impact, making it suitable for wet terrains. The forwarder is equipped with a spacious cabin and the TOC Control System for enhanced driver comfort and technological support.
Specifications:
  • Capacity: 10 tonnes
  • Tractive Effort: 13.5 tonnes
  • Dimensions: Width: 2460-2680 mm, Length: 9121 mm
Technical Data Comparison:
  • Weight: Own weight starts from 12,000 kg, with a capacity of 10,000 kg
  • Load Area: 2.9/3.6 m2 with a length of 4.3 m
  • Engine: Sisu 44 CWA, Power: 108 kW, Torque: 600 Nm, Fuel tank: 205 l
  • Power Transmission: Hydrostatic-mechanic, Tractive effort: 135 kN
  • Tyres: Standard: 700/45–22.5, Optional: 600/50–22.5
  • Hydraulic System: Flow: 130 l/min, Oil tank: 175 l
  • Cranes: Loglift 61, Reach: 7.2–10 m
Additional Information: The document notes that specifications are subject to change without prior notice and that images may not depict standard versions of the machines.
