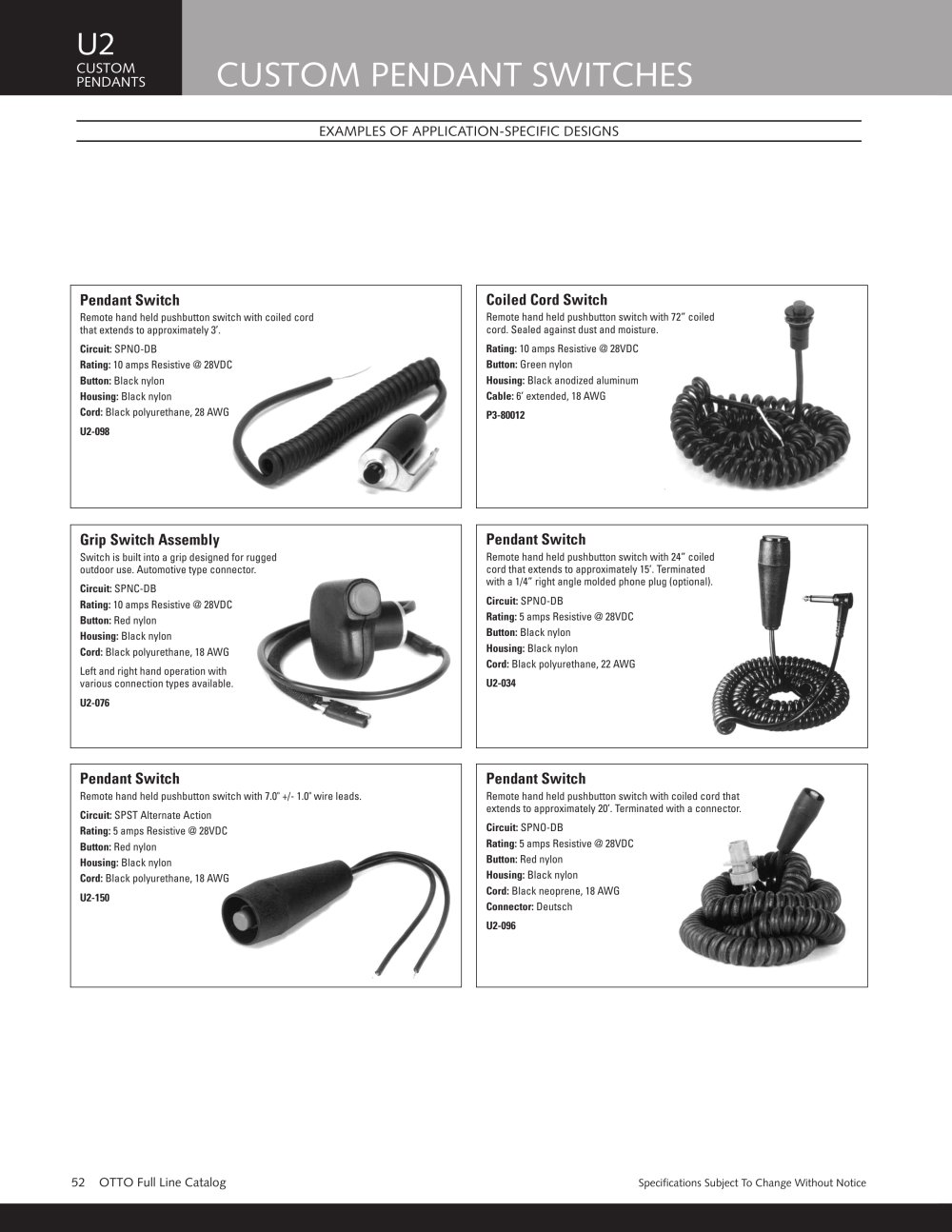

CUSTOM CUSTOM PENDANT SWITCHES PENDANTS U2 52 OTTO Full Line Catalog Specifications Subject To Change Without Notice EXAMPLES OF APPLICATION-SPECIFIC DESIGNS Pendant Switch Remote hand held pushbutton switch with coiled cord that extends to approximately 3’. Circuit: SPNO-DB Rating: 10 amps Resistive @ 28VDC Button: Black nylon Housing: Black nylon Cord: Black polyurethane, 28 AWG U2-098 Coiled Cord Switch Remote hand held pushbutton switch with 72” coiled cord. Sealed against dust and moisture. Rating: 10 amps Resistive @ 28VDC Button: Green nylon Housing: Black anodized aluminum Cable: 6’ extended, 18 AWG P3-80012 Pendant Switch Remote hand held pushbutton switch with 24” coiled cord that extends to approximately 15’. Terminated with a 1/4” right angle molded phone plug (optional). Circuit: SPNO-DB Rating: 5 amps Resistive @ 28VDC Button: Black nylon Housing: Black nylon Cord: Black polyurethane, 22 AWG U2-034 Grip Switch Assembly Switch is built into a grip designed for rugged outdoor use. Automotive type connector. Circuit: SPNC-DB Rating: 10 amps Resistive @ 28VDC Button: Red nylon Housing: Black nylon Cord: Black polyurethane, 18 AWG Left and right hand operation with various connection types available. U2-076 Pendant Switch Remote hand held pushbutton switch with coiled cord that extends to approximately 20’. Terminated with a connector. Circuit: SPNO-DB Rating: 5 amps Resistive @ 28VDC Button: Red nylon Housing: Black nylon Cord: Black neoprene, 18 AWG Connector: Deutsch U2-096 Pendant Switch Remote hand held pushbutton switch with 7.0" +/- 1.0" wire leads. Circuit: SPST Alternate Action Rating: 5 amps Resistive @ 28VDC Button: Red nylon Housing: Black nylon Cord: Black polyurethane, 18 AWG U2-150
